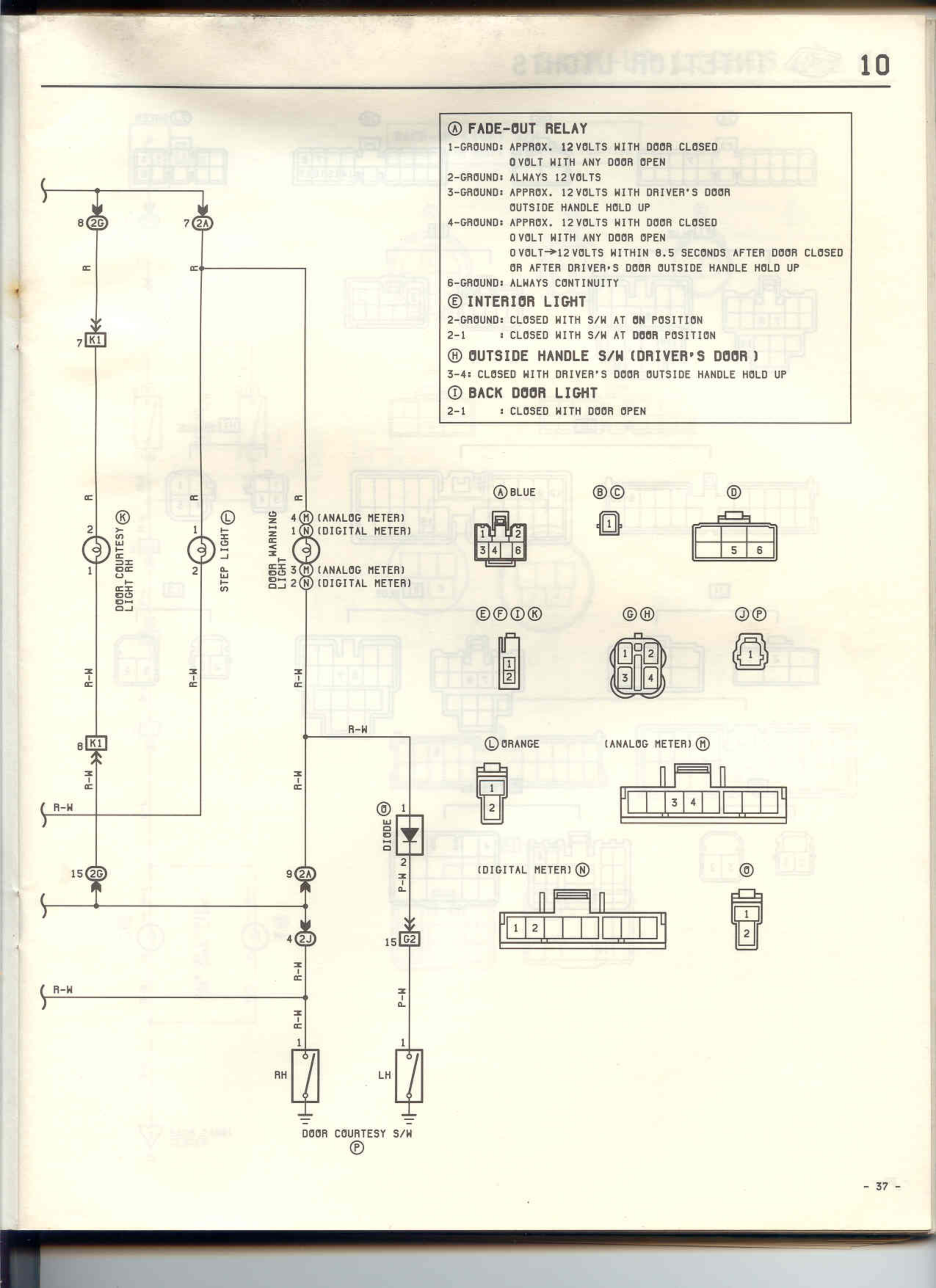

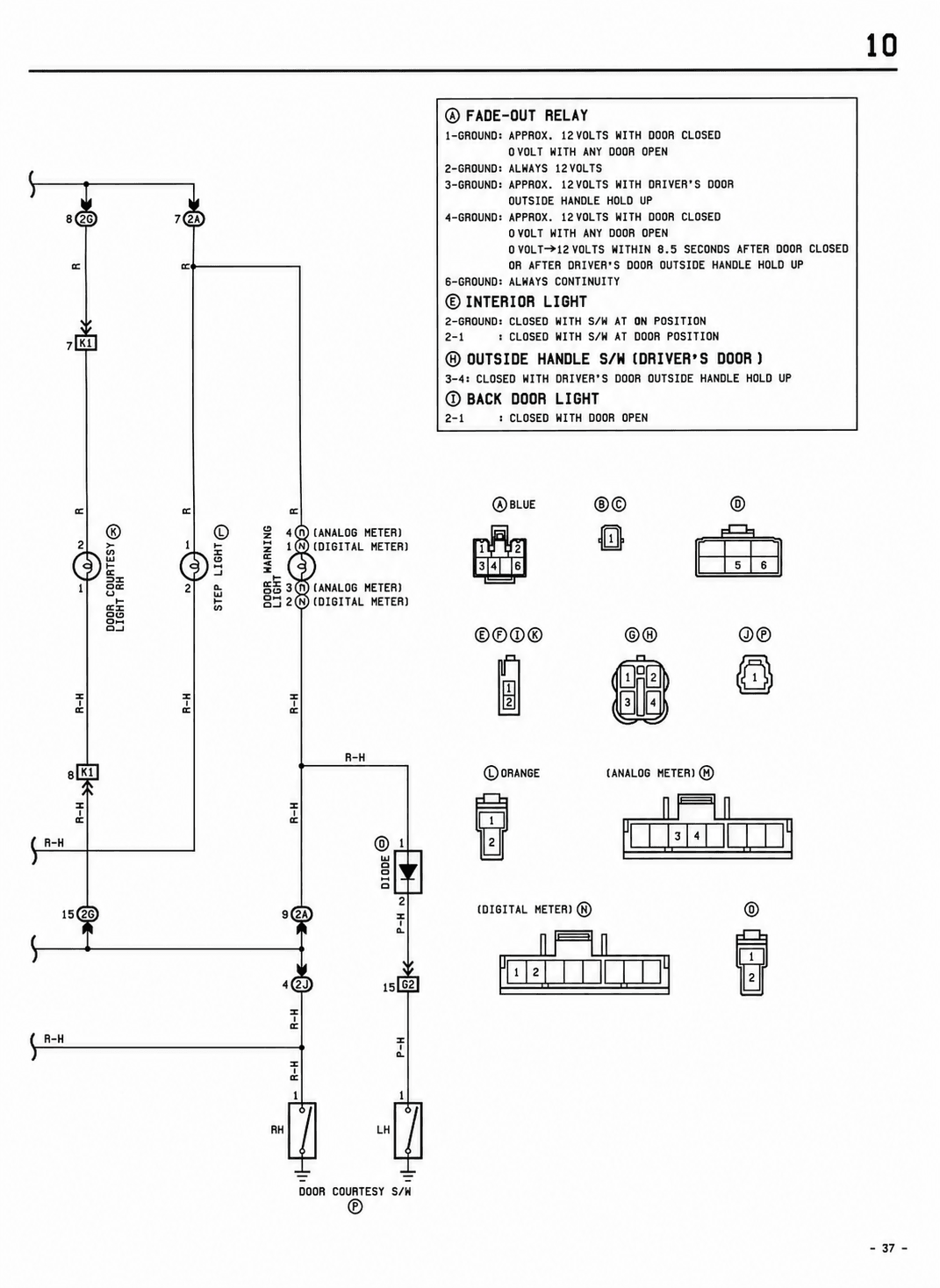

④ FADE-OUT RELAY
1-GROUND: APPROX. 12 VOLTS WITH DOOR CLOSED
0 VOLT WITH ANY DOOR OPEN
2-GROUND: ALWAYS 12 VOLTS
3-GROUND: APPROX. 12 VOLTS WITH DRIVER'S DOOR
OUTSIDE HANDLE HOLD UP
4-GROUND: APPROX. 12 VOLTS WITH DOOR CLOSED
0 VOLT WITH ANY DOOR OPEN
0 VOLT→12 VOLTS WITHIN 0.5 SECONDS AFTER DOOR CLOSED
OR AFTER DRIVER'S DOOR OUTSIDE HANDLE HOLD UP
6-GROUND: ALWAYS CONTINUITY
⑤ INTERIOR LIGHT
2-GROUND: CLOSED WITH S/A AT ON POSITION
2-1 : CLOSED WITH S/A AT DOOR POSITION
⑩ OUTSIDE HANDLE S/M (DRIVER'S DOOR)
3-4: CLOSED WITH DRIVER'S DOOR OUTSIDE HANDLE HOLD UP
⑪ BACK DOOR LIGHT
2-1 : CLOSED WITH DOOR OPEN
8 20
7 21
7 K1
K
DOOR COURTESY
LIGHT P/H
3
STEP LIGHT
L
3
DOOR WARNING
LIGHT
4 ⑩ (ANALOG METER)
1 ⑪ (DIGITAL METER)
3
3 ⑩ (ANALOG METER)
2 ⑪ (DIGITAL METER)
A BLUE
11 42
3K 4
B C
D
S B
E F I B
G H
J P
1
2
12
3 1
1
R-H
R-H
R-H
R-H
8 L1
R-W
R-H
I ORANGE
(ANALOG METER) D
3 4
15 20
9 2A
1
2
(DIGITAL METER) N
G
4 C1
15 D2
1 2
1
2
R-H
R-H
R-H
R-H
RH
LH
DOOR COURTESY S/M
F
