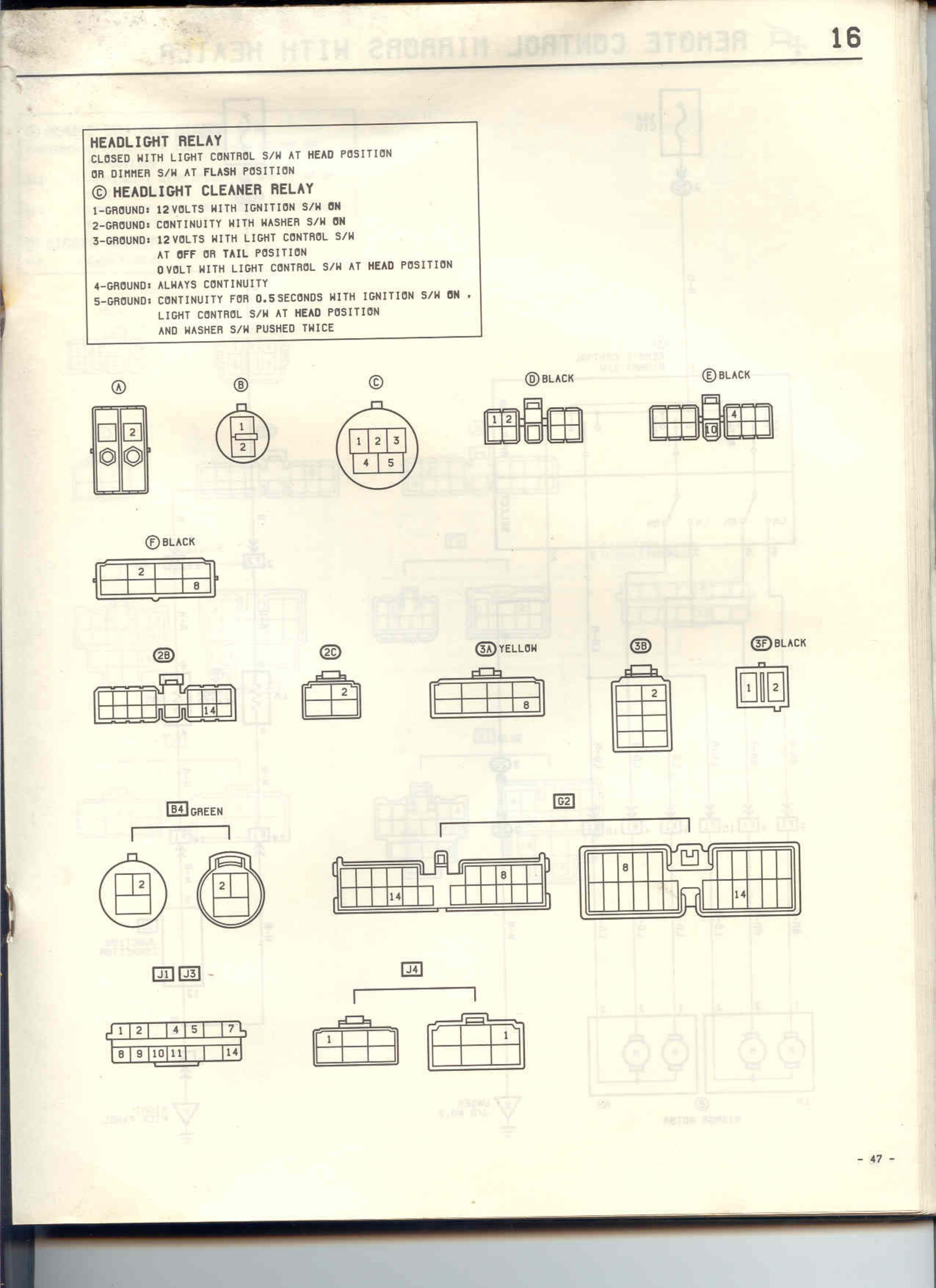

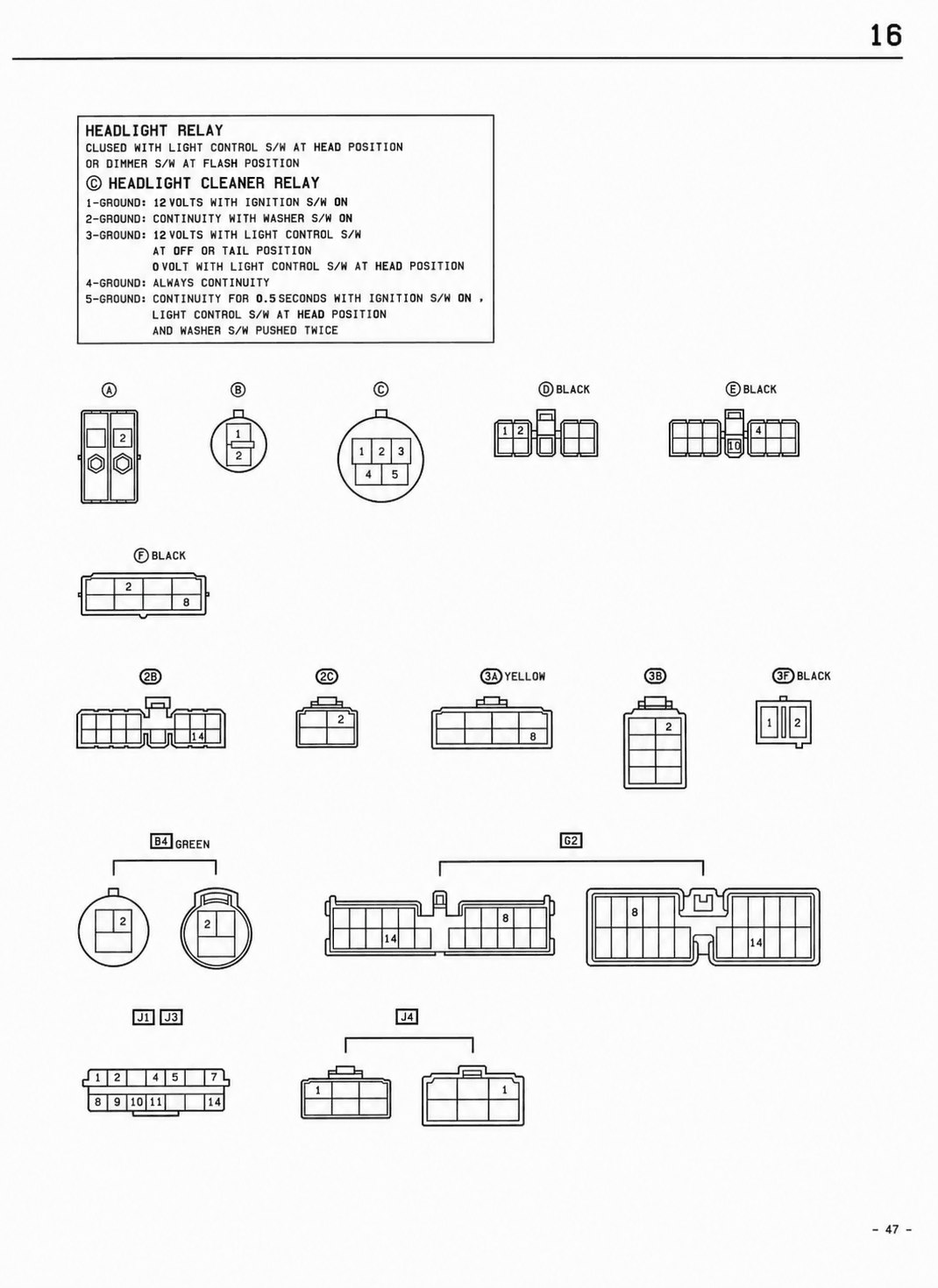

S16/Headlight Cleaner — Headlight Relay and Connector Diagrams, page 2

REMOTE CONTROL MIRROR WIRE H/B

16

HEADLIGHT RELAY
CLOSED WITH LIGHT CONTROL S/W AT HEAD POSITION
OR DIMMER S/W AT FLASH POSITION
⑥ HEADLIGHT CLEANER RELAY
1-GROUND: 12VOLTS WITH IGNITION S/W ON
2-GROUND: CONTINUITY WITH WASHER S/W ON
3-GROUND: 12VOLTS WITH LIGHT CONTROL S/W
AT OFF OR TAIL POSITION
0VOLT WITH LIGHT CONTROL S/W AT HEAD POSITION
4-GROUND: ALWAYS CONTINUITY
5-GROUND: CONTINUITY FOR 0.5SECONDS WITH IGNITION S/W ON.
LIGHT CONTROL S/W AT HEAD POSITION
AND WASHER S/W PUSHED TWICE

Ⓐ
2

⑥
1
2

©
1 2 3
4 5

⑥BLACK
1 2

©BLACK

ⒻBLACK
2
8

2B

2G
2

3A YELLOW
8

3B
2

3FBLACK
1 2

B4GREEN
2

2

D2
8
14

8
14

J1 J3

1 2
4 5
7
8 9 10 11
14

J4
1

1

- 47 -
