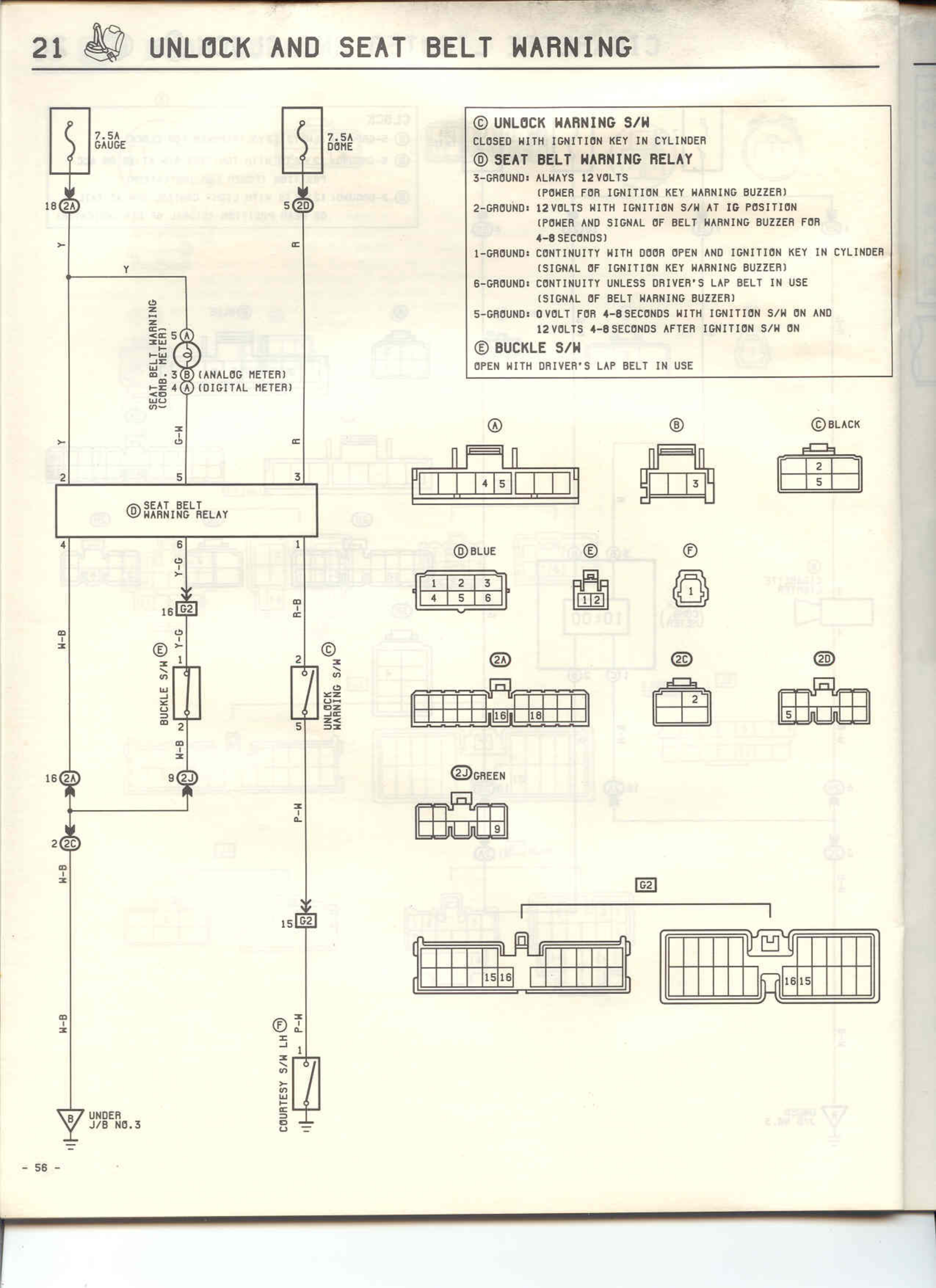

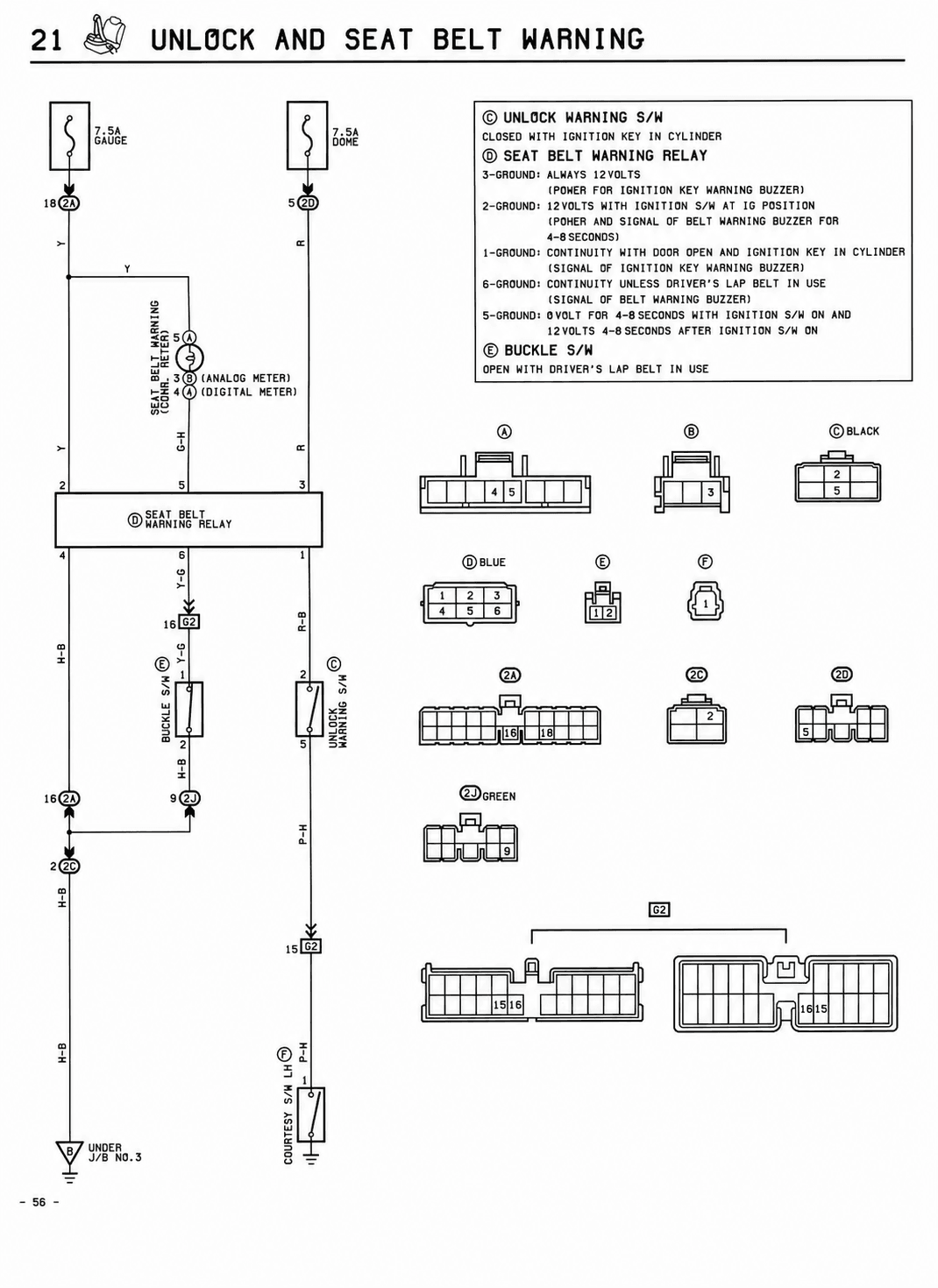

21 UNLOCK AND SEAT BELT WARNING
7.5A GAUGE
7.5A DOME
18 21
5 20
Y
SEAT BELT WARNING RELAY
5
3 (ANALOG METER)
4 (DIGITAL METER)
Y
H
2 5 3
D SEAT BELT WARNING RELAY
4 6 1
G2
LG
15 G2
E S
2
BUCKLE S/W
1
5
C WARNING S/W
18 21
9 20
P-W
2 26
W-B
15 G2
W-B
D COURTESY S/W LH
UNDER J/B NO.3
© UNLOCK WARNING S/W
CLOSED WITH IGNITION KEY IN CYLINDER
© SEAT BELT WARNING RELAY
3-GROUND: ALWAYS 12 VOLTS
(POWER FOR IGNITION KEY WARNING BUZZER)
2-GROUND: 12 VOLTS WITH IGNITION S/W AT IG POSITION
(POWER AND SIGNAL OF BELT WARNING BUZZER FOR 4-8 SECONDS)
1-GROUND: CONTINUITY WITH DOOR OPEN AND IGNITION KEY IN CYLINDER
(SIGNAL OF IGNITION KEY WARNING BUZZER)
6-GROUND: CONTINUITY UNLESS DRIVER'S LAP BELT IN USE
(SIGNAL OF BELT WARNING BUZZER)
5-GROUND: 0 VOLT FOR 4-8 SECONDS WITH IGNITION S/W ON AND
12 VOLTS 4-8 SECONDS AFTER IGNITION S/W ON
© BUCKLE S/W
OPEN WITH DRIVER'S LAP BELT IN USE
A
4 5
B
3
C BLACK
5
D BLUE
1 2 3
4 5 6
E
I1|2
F
21
20
20
2
5
21 GREEN
G2
I8|5
I8|5
- 56 -
