S23/Cruise Control, page 1

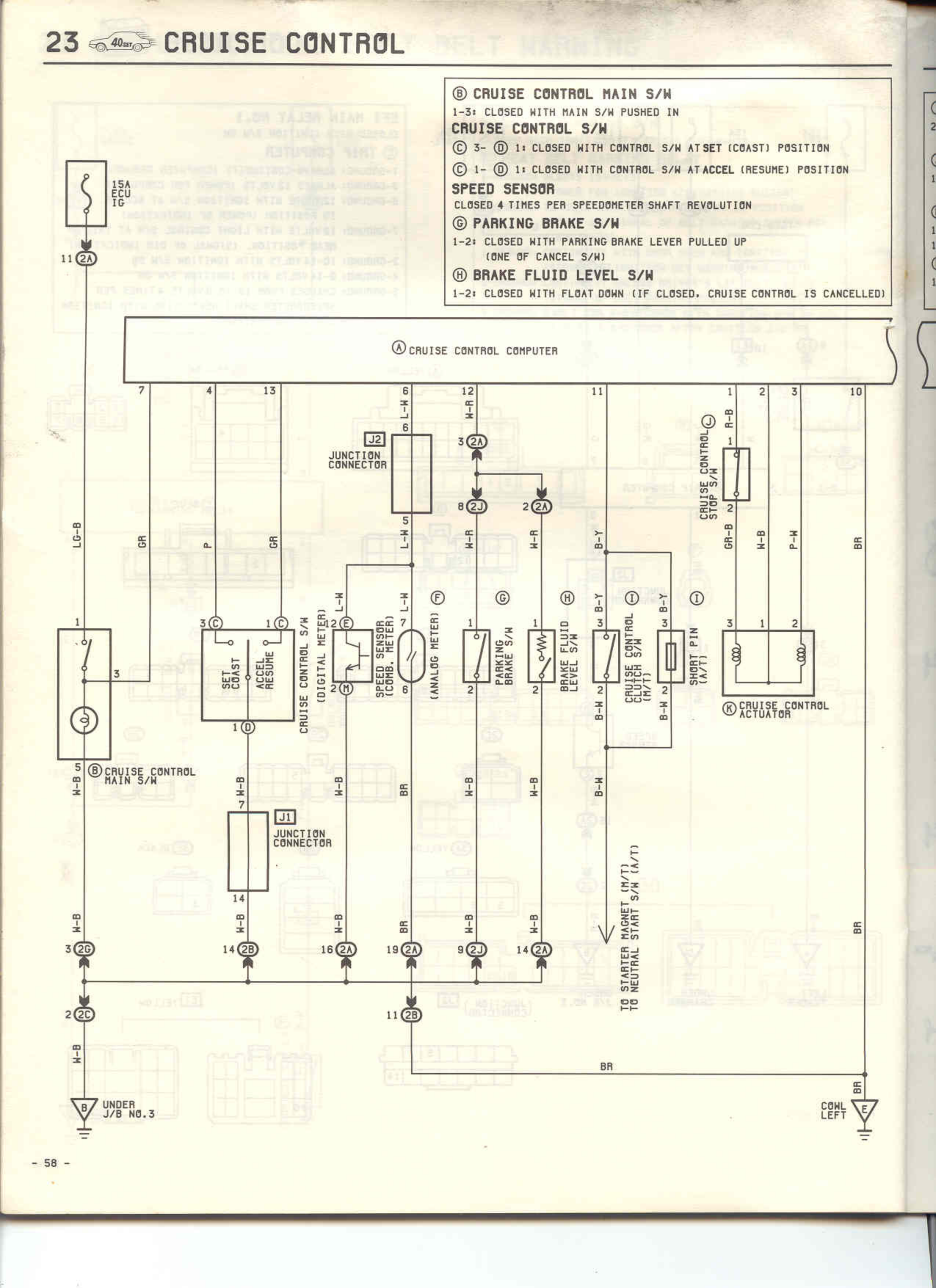

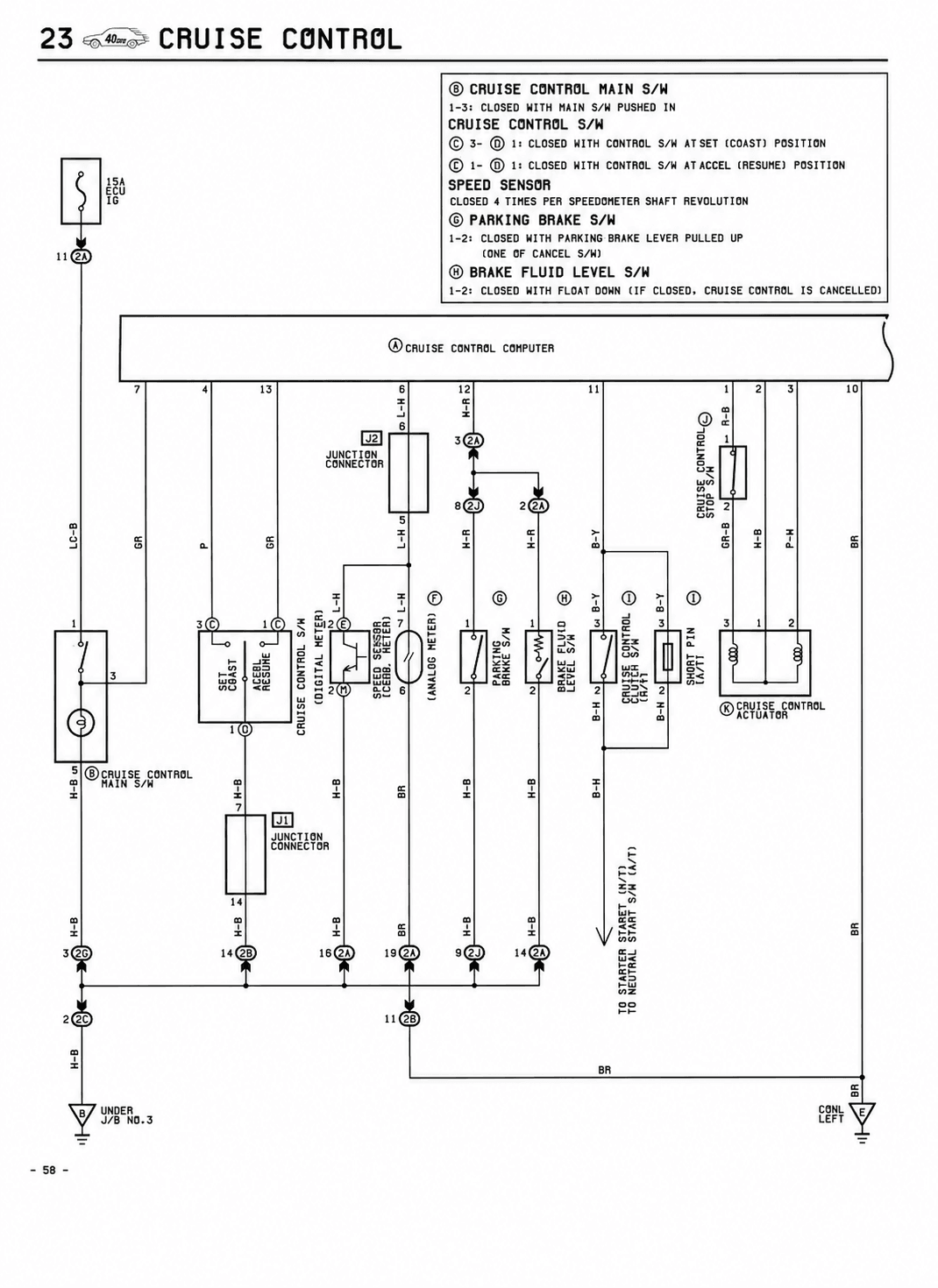

23 CRUISE CONTROL

⑧ CRUISE CONTROL MAIN S/W
1-3: CLOSED WITH MAIN S/W PUSHED IN
CRUISE CONTROL S/W
③ 3- ⑥ 1: CLOSED WITH CONTROL S/W AT SET (COAST) POSITION
⑤ 1- ⑥ 1: CLOSED WITH CONTROL S/W AT ACCEL (RESUME) POSITION
SPEED SENSOR
CLOSED 4 TIMES PER SPEEDOMETER SHAFT REVOLUTION
⑧ PARKING BRAKE S/W
1-2: CLOSED WITH PARKING BRAKE LEVER PULLED UP
(ONE OF CANCEL S/W)
⑩ BRAKE FLUID LEVEL S/W
1-2: CLOSED WITH FLOAT DOWN (IF CLOSED, CRUISE CONTROL IS CANCELLED)

15A
IGN
IC

11 21

A CRUISE CONTROL COMPUTER

7    4    13    8    12    11    1    2    3    10
                5
                4
                6

J2
JUNCTION
CONNECTOR

3 C7
8 23    2 C7

5    5    4    4    3    2    1
W-B    W-B    W-B    1 B-W    2    B-R B-R
OR    OR    OR    GR    1 CRUISE CONTROL
2 ACTUATOR

F    6    D    3
                    1    2
            3    3    1
            2
            CRUISE CONTROL    2    SHIFT FIN
CRUISE CONTROL    1    PARKING    S/W    BRAKE FLUID    1    CRUISE CONTROL
COMPLETE    1    2    1    2    LEVEL S/W    2    ACTUATOR
METER
CRUISE CONTROL    BRAKE SPEED    1    2    3    SHIFT FIN
TOTAL S/W    2    2    SENSOR    1    1
INDICATOR    1    1    ①

5 ⑧ CRUISE CONTROL
1 W-B    MAIN S/W

W-B    W-B    W-B    W-B    B-W

J1
JUNCTION
CONNECTOR

14

W-B    W-B    BR    W-B    W-B

3 29    14 29    18 29    19 21    8 C7    14 C7

2 29

W-B    BR

11 28

BR

UNDER    BR    CONN.
J/B NO.3    LEFT

- 58 -
