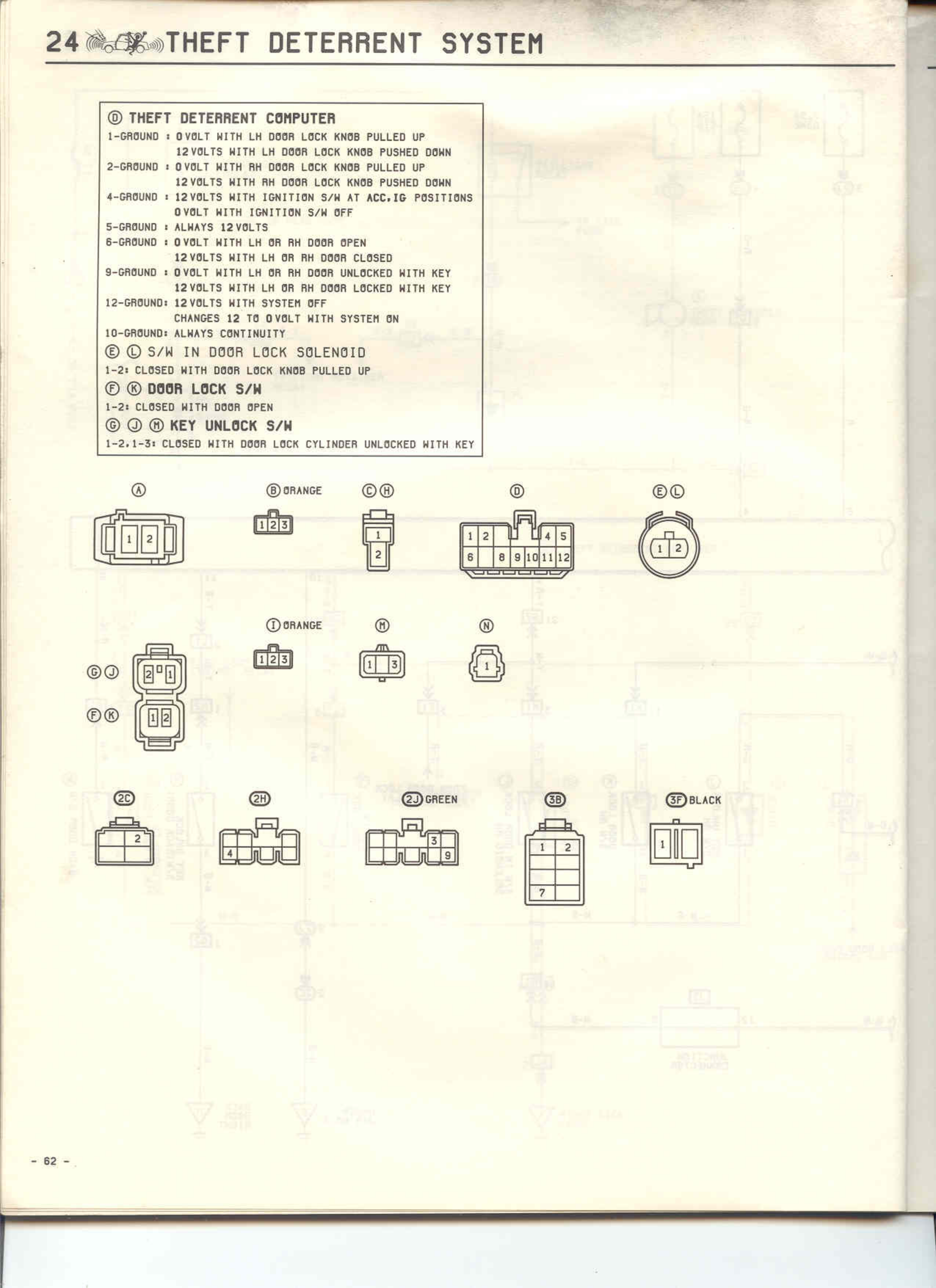

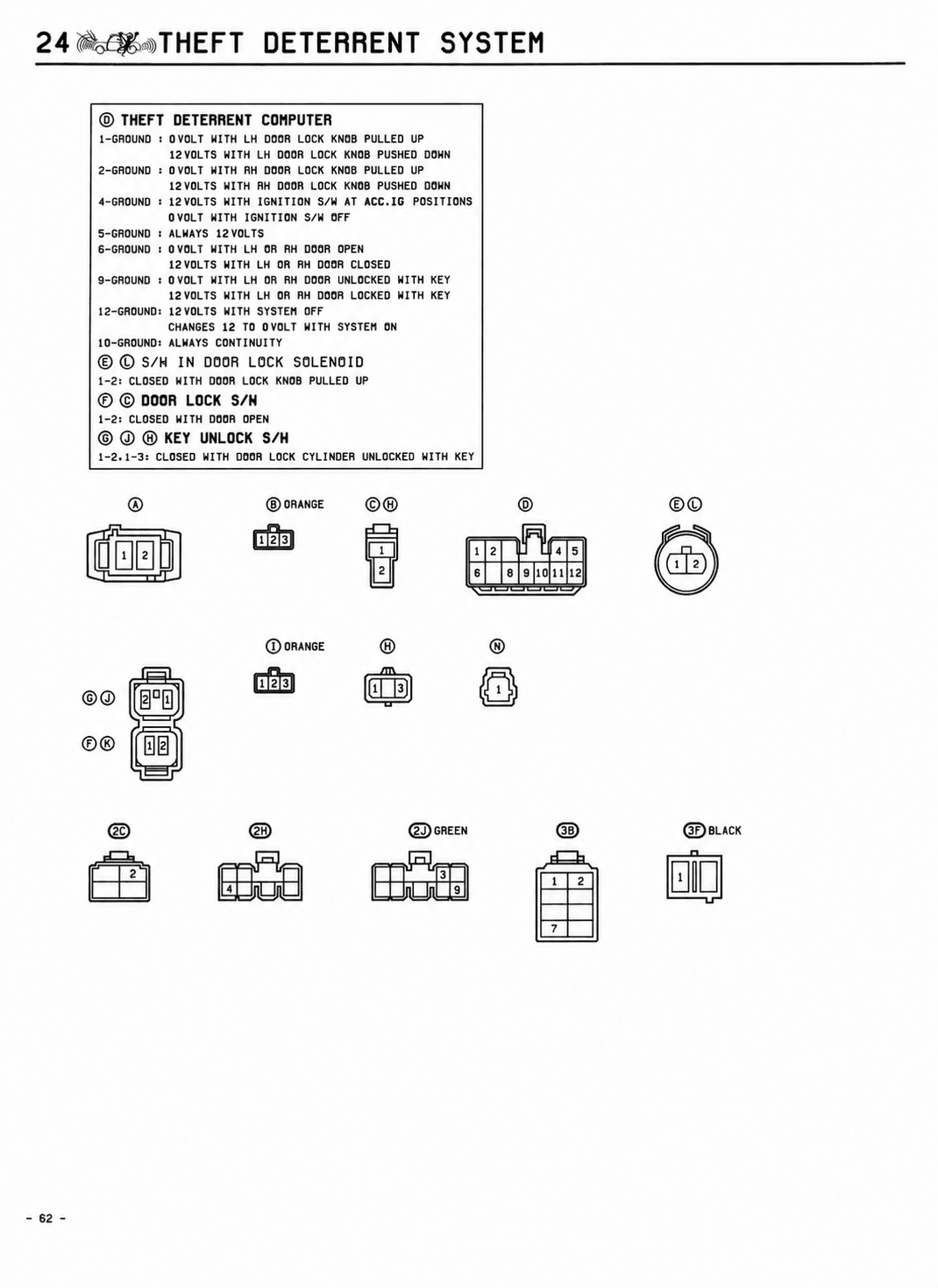

24 THEFT DETERRENT SYSTEM
⑥ THEFT DETERRENT COMPUTER
1-GROUND : 0 VOLT WITH LH DOOR LOCK KNOB PULLED UP
12 VOLTS WITH LH DOOR LOCK KNOB PUSHED DOWN
2-GROUND : 0 VOLT WITH RH DOOR LOCK KNOB PULLED UP
12 VOLTS WITH RH DOOR LOCK KNOB PUSHED DOWN
4-GROUND : 12 VOLTS WITH IGNITION S/W AT ACC.IG POSITIONS
0 VOLT WITH IGNITION S/W OFF
5-GROUND : ALWAYS 12 VOLTS
6-GROUND : 0 VOLT WITH LH OR RH DOOR OPEN
12 VOLTS WITH LH OR RH DOOR CLOSED
9-GROUND : 0 VOLT WITH LH OR RH DOOR UNLOCKED WITH KEY
12 VOLTS WITH LH OR RH DOOR LOCKED WITH KEY
12-GROUND: 12 VOLTS WITH SYSTEM OFF
CHANGES 12 TO 0 VOLT WITH SYSTEM ON
10-GROUND: ALWAYS CONTINUITY
⑥ ① S/W IN DOOR LOCK SOLENOID
1-2: CLOSED WITH DOOR LOCK KNOB PULLED UP
⑧ ⑥ DOOR LOCK S/W
1-2: CLOSED WITH DOOR OPEN
⑥ ① ⑩ KEY UNLOCK S/W
1-2,1-3: CLOSED WITH DOOR LOCK CYLINDER UNLOCKED WITH KEY
④
⑧ORANGE
©①
⑩
⑧©
[Connector diagrams showing pin configurations]
1 2
1 2 3
1
1 2
1 2
2
8 6 5 10 11 12
⑧©
①ORANGE
⑨
⑩
[Connector diagrams showing pin configurations]
2 0
1 2 3
1 2
1
⑧⑩
0 8
⑳
㉑
㉔GREEN
㉕
㉛BLACK
[Connector diagrams showing pin configurations]
2
4 1 6
8 9
1 2
1
7
- 62 -
