S25/Auto Antenna — Control Relay, page 2

SHRINK OWN BROAD KS So 25

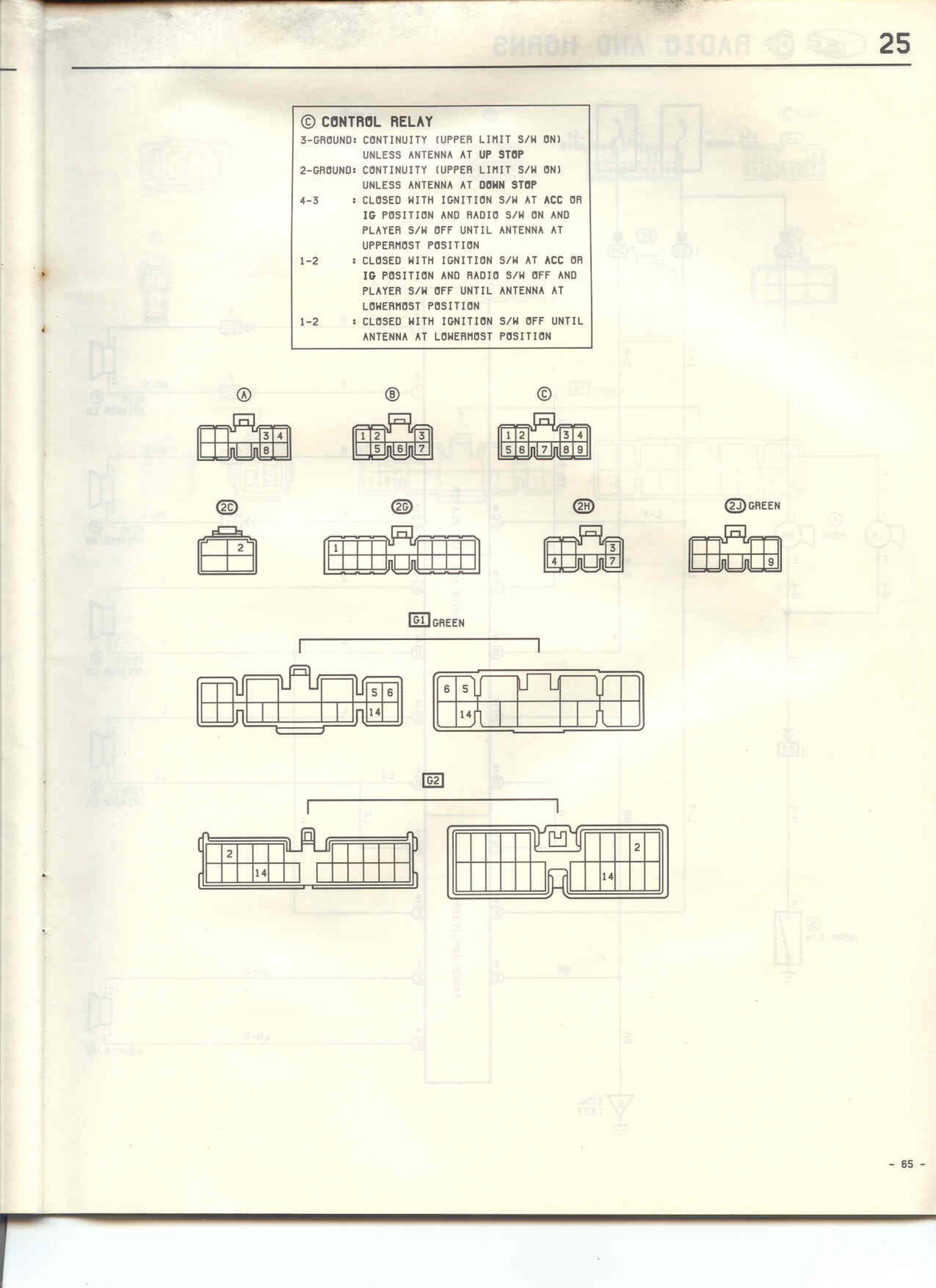

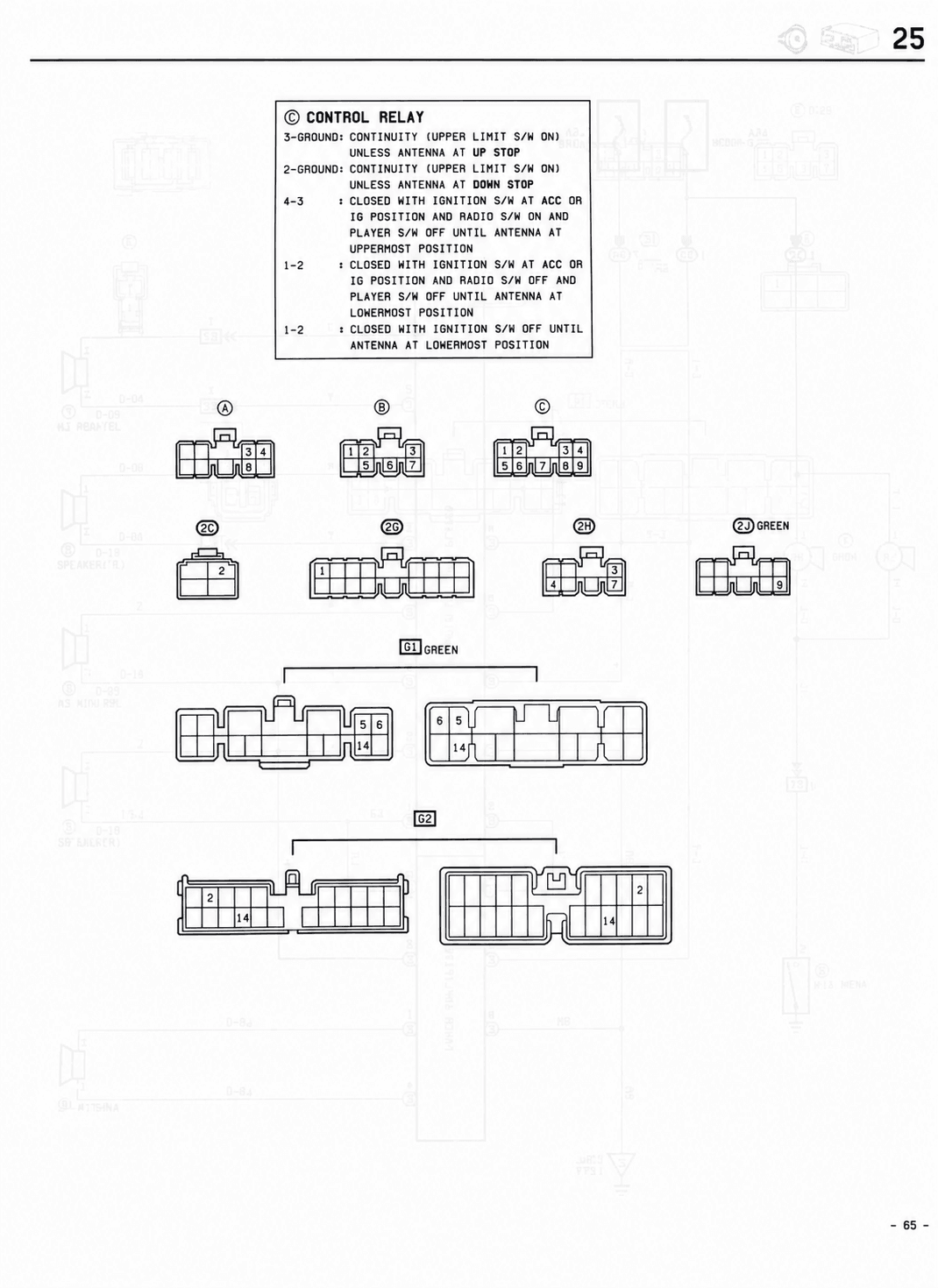

⑥ CONTROL RELAY
3-GROUND: CONTINUITY (UPPER LIMIT S/W ON)
UNLESS ANTENNA AT UP STOP
2-GROUND: CONTINUITY (UPPER LIMIT S/W ON)
UNLESS ANTENNA AT DOWN STOP
4-3     : CLOSED WITH IGNITION S/W AT ACC OR
IG POSITION AND RADIO S/W ON AND
PLAYER S/W OFF UNTIL ANTENNA AT
UPPERMOST POSITION
1-2     : CLOSED WITH IGNITION S/W AT ACC OR
IG POSITION AND RADIO S/W OFF AND
PLAYER S/W OFF UNTIL ANTENNA AT
LOWERMOST POSITION
1-2     : CLOSED WITH IGNITION S/W OFF UNTIL
ANTENNA AT LOWERMOST POSITION

Ⓐ
