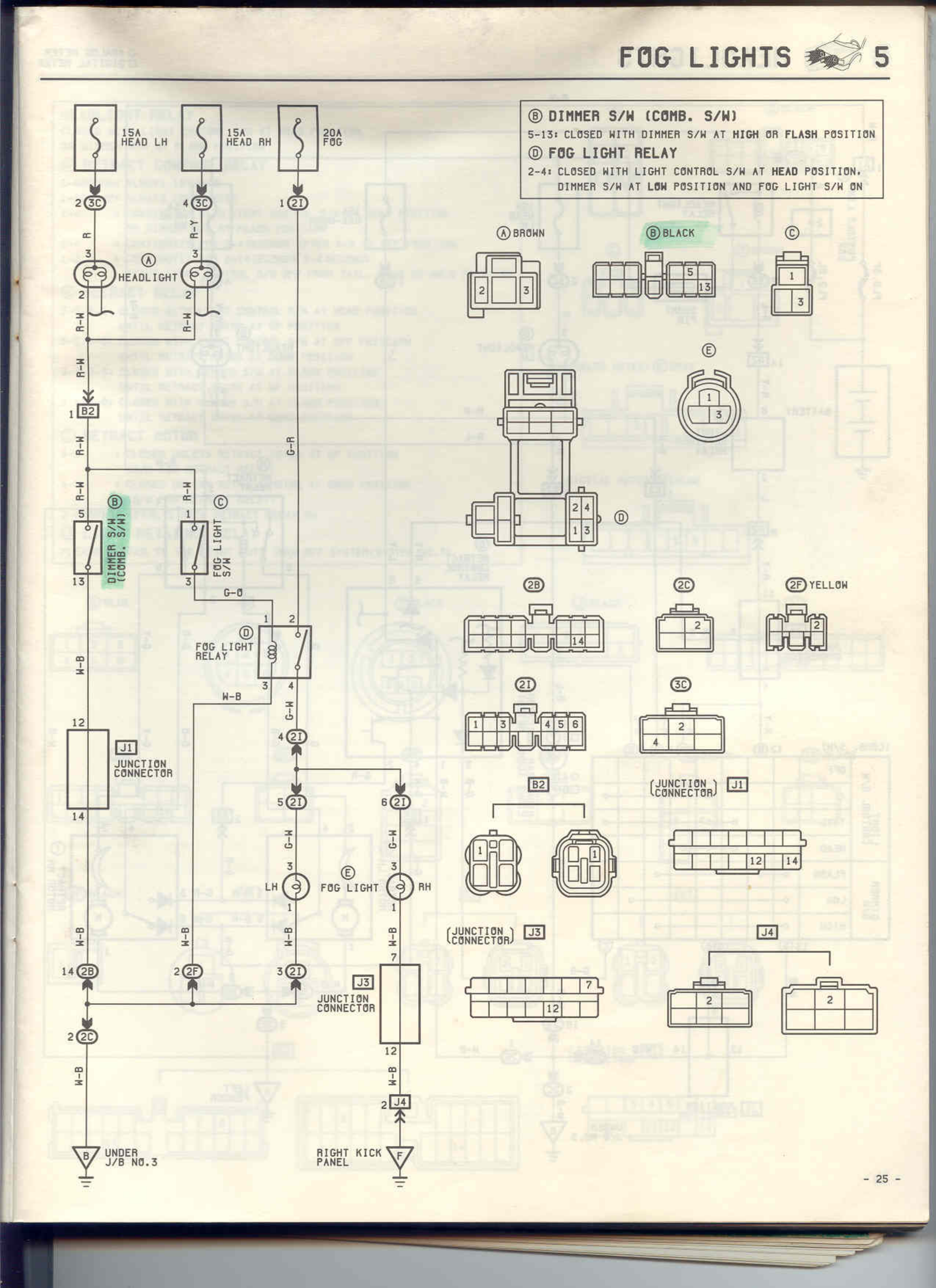

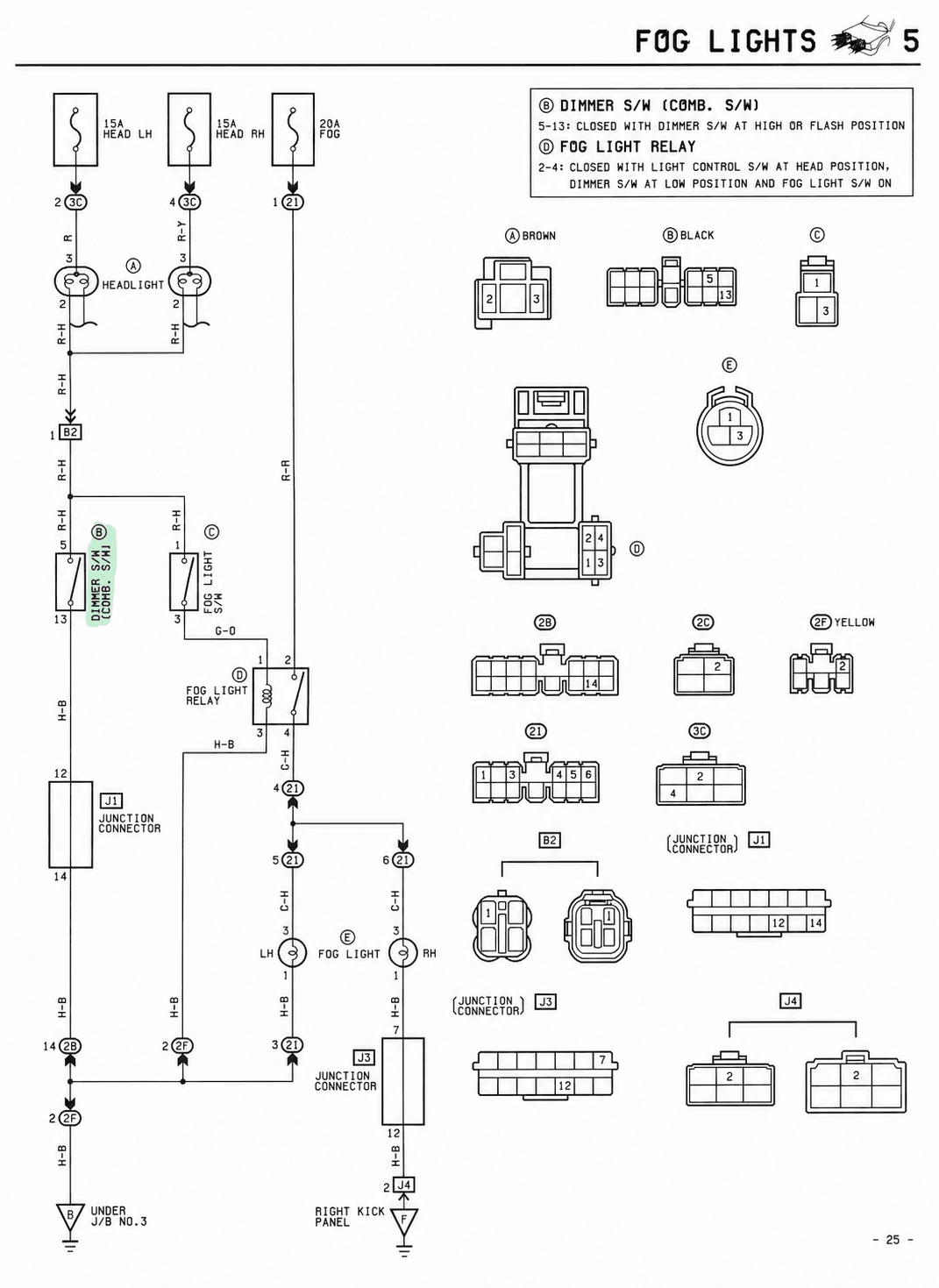

S5/Fog Lights, page 1

FOG LIGHTS 5

15A HEAD LH
15A HEAD RH
20A FOG

2 C6
1 C6
1 C1

B DIMMER S/M (COMB. S/M)
5-1: CLOSED WITH DIMMER S/M AT HIGH OR FLASH POSITION
D FOG LIGHT RELAY
2-4: CLOSED WITH LIGHT CONTROL S/M AT HEAD POSITION,
DIMMER S/M AT LOW POSITION AND FOG LIGHT S/M ON

A BROWN
B BLACK
C

D HEADLIGHT

B2

FOG LIGHT RELAY

W-B

C

CHARGE S/M

DRL LIGHT

L2

J1 JUNCTION CONNECTOR

LH FOG LIGHT RH

14 C1
2 CF
3 C1

2 C6

J3 JUNCTION CONNECTOR

2 J4

12

UNDER J/B NO.3
RIGHT KICK PANEL

2B
25
2F YELLOW

21
30

B2

JUNCTION CONNECTOR J1

J3

44

- 25 -
