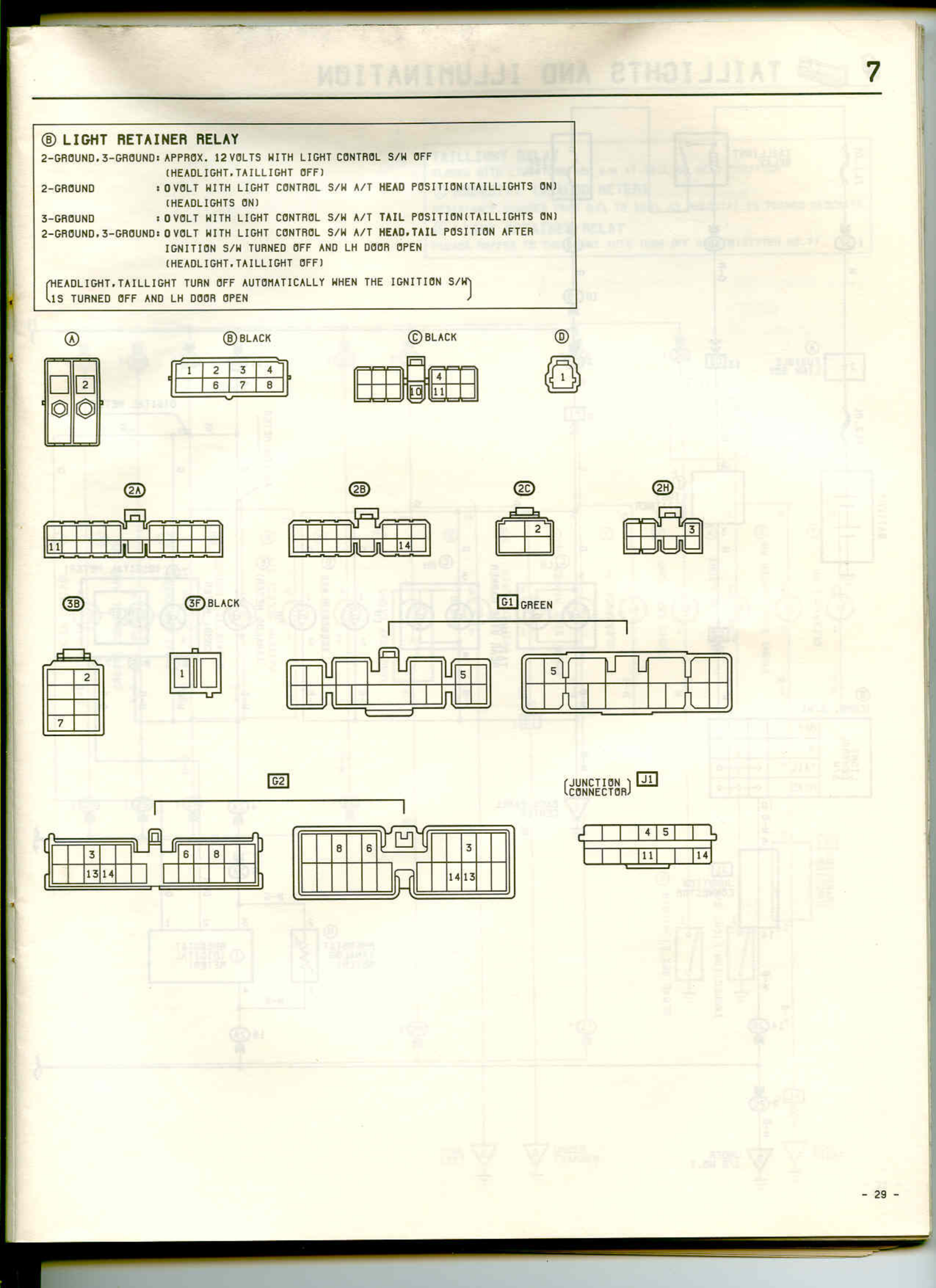

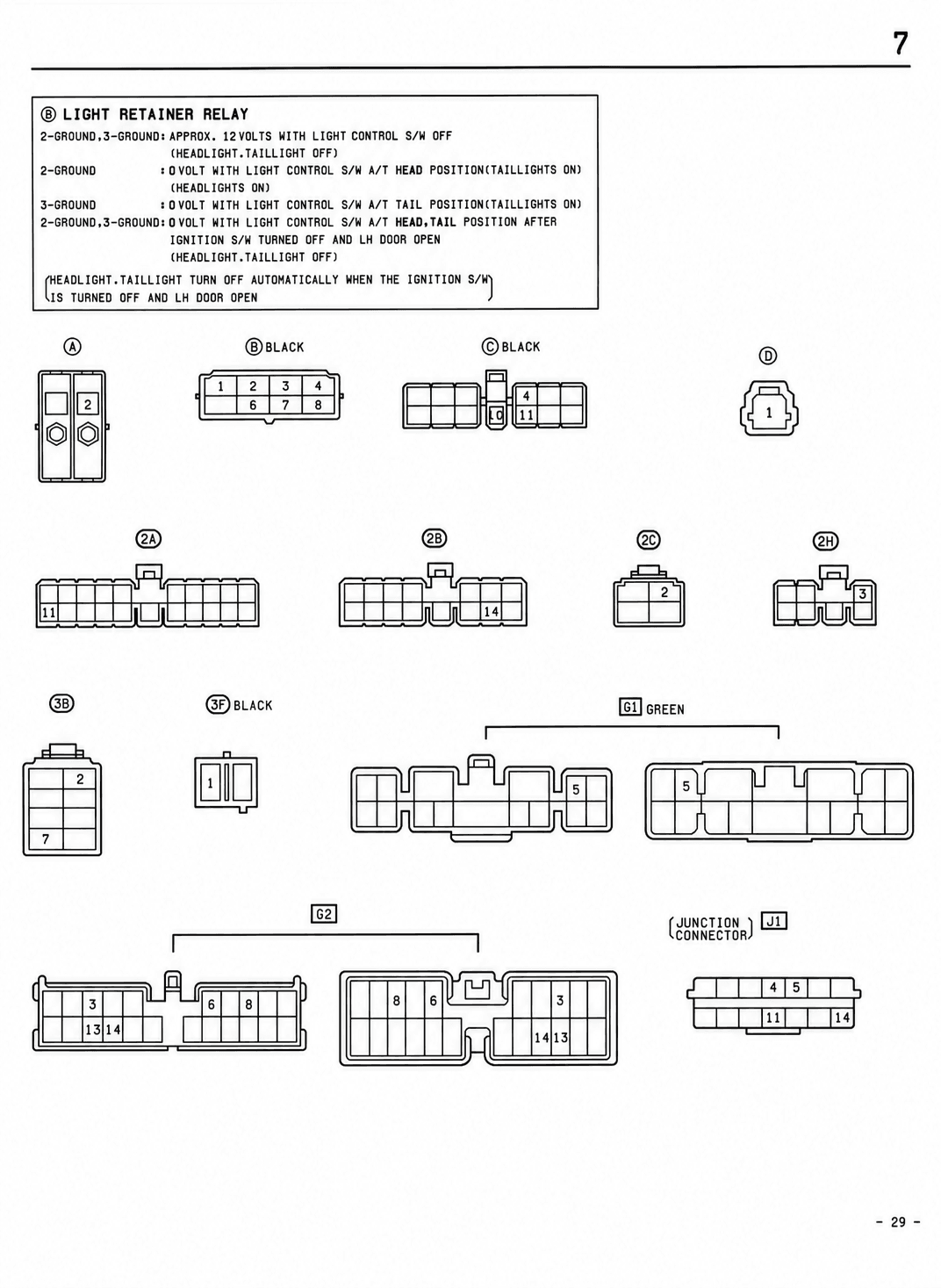

S7/Light Auto Turn Off System, page 2

⑧ LIGHT RETAINER RELAY
2-GROUND,3-GROUND: APPROX. 12VOLTS WITH LIGHT CONTROL S/W OFF
(HEADLIGHT,TAILLIGHT OFF)
2-GROUND :0VOLT WITH LIGHT CONTROL S/W A/T HEAD POSITION(TAILLIGHTS ON)
(HEADLIGHTS ON)
3-GROUND :0VOLT WITH LIGHT CONTROL S/W A/T TAIL POSITION(TAILLIGHTS ON)
2-GROUND,3-GROUND:0VOLT WITH LIGHT CONTROL S/W A/T HEAD,TAIL POSITION AFTER
IGNITION S/W TURNED OFF AND LH DOOR OPEN
(HEADLIGHT,TAILLIGHT OFF)
(HEADLIGHT,TAILLIGHT TURN OFF AUTOMATICALLY WHEN THE IGNITION S/W
IS TURNED OFF AND LH DOOR OPEN

Ⓐ
⑧BLACK
©BLACK
⑧

1 2
3 4

1 2 3 4
5 6 7 8

4
1 1

2A
2B
2C
2D

3B
ⒺBLACK
ⒺGREEN

2
7

5
5

Ⓓ
JUNCTION Ⓙ
CONNECTOR

5
3
6 8
13 14

8 6
3
14 13

4 5
11 14
