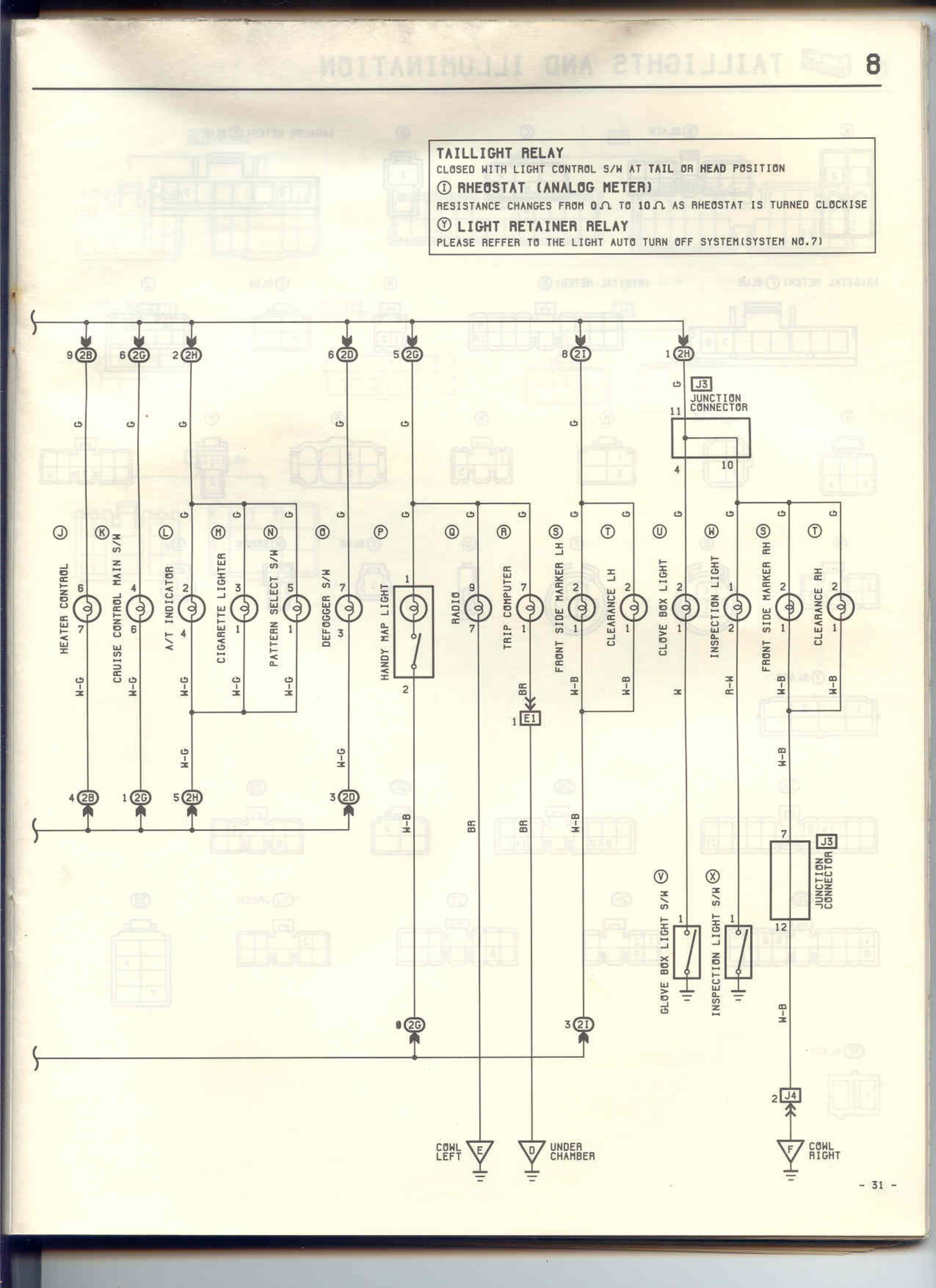

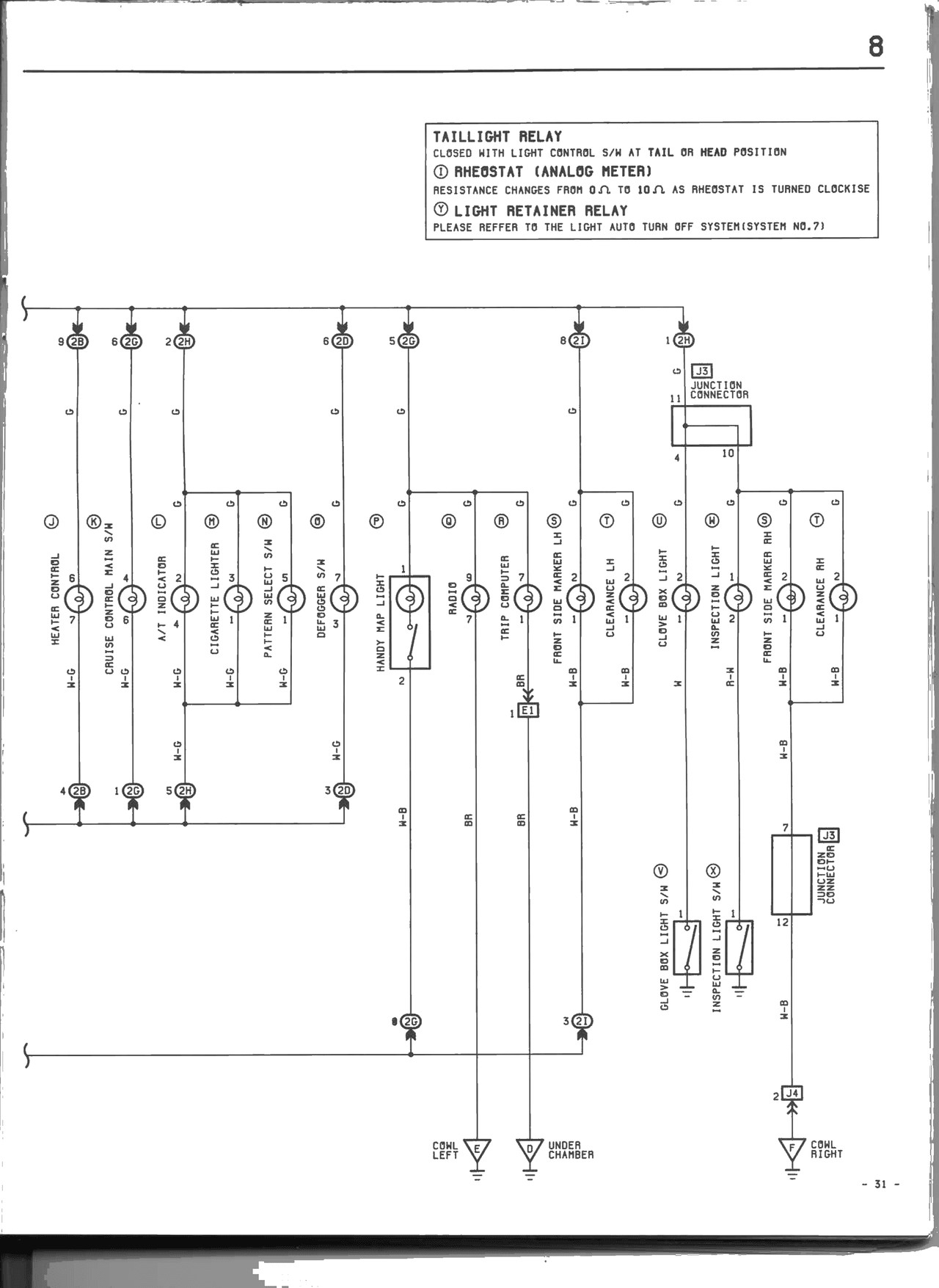

S8/Taillights and Illumination, page 2

8

TAILLIGHT RELAY
CLOSED WITH LIGHT CONTROL S/W AT TAIL OR HEAD POSITION
① RHEOSTAT (ANALOG METER)
RESISTANCE CHANGES FROM 0Ω TO 10Ω AS RHEOSTAT IS TURNED CLOCKISE
② LIGHT RETAINER RELAY
PLEASE REFFER TO THE LIGHT AUTO TURN OFF SYSTEM(SYSTEM NO.7)

9 C0  6 C0  2 C0  6 C0  5 C0  8 C1  1 C0

J3
JUNCTION
11 CONNECTOR

4  10

③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮

HEATER CONTROL  CRUISE CONTROL MAIN S/W  A/T INDICATOR  CIGARETTE LIGHTER  PATTERN SELECT S/W  DEFROSTER S/W  HANDY AMP LIGHT  RADIO  TRIP COMPUTER  FRONT SIDE MARKER LH  CLEARANCE LH  GLOVE BOX LIGHT  INSPECTION LIGHT  FRONT SIDE MARKER RH  CLEARANCE RH

H-G  H-G  H-G  H-G  H-G  H-G  →  →  →  H-B  H-B  ←  R-M  R-M  H-B  H-B

4 C0  1 C0  5 C0  3 C0  H-G  H-G  BR  BR  H-B

⑯ ⑰
GLOVE BOX LIGHT S/W  INSPECTION LIGHT S/W

7  J3
JUNCTION
12 CONNECTOR

H-B

8 C0  3 C1  2 C0

CONT. LEFT  CONT. UNDER CHAMBER  CONT. RIGHT

- 31 -
