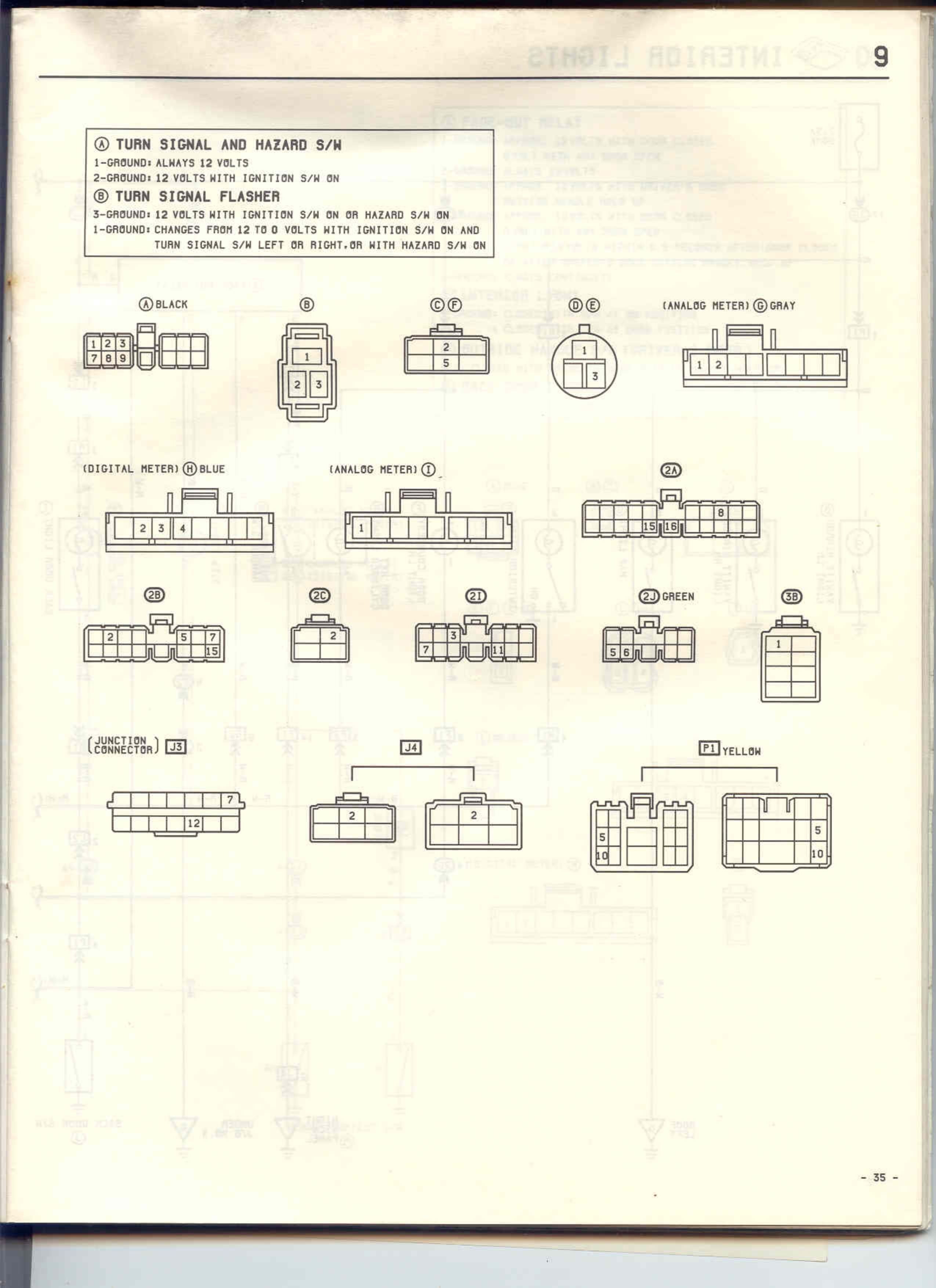

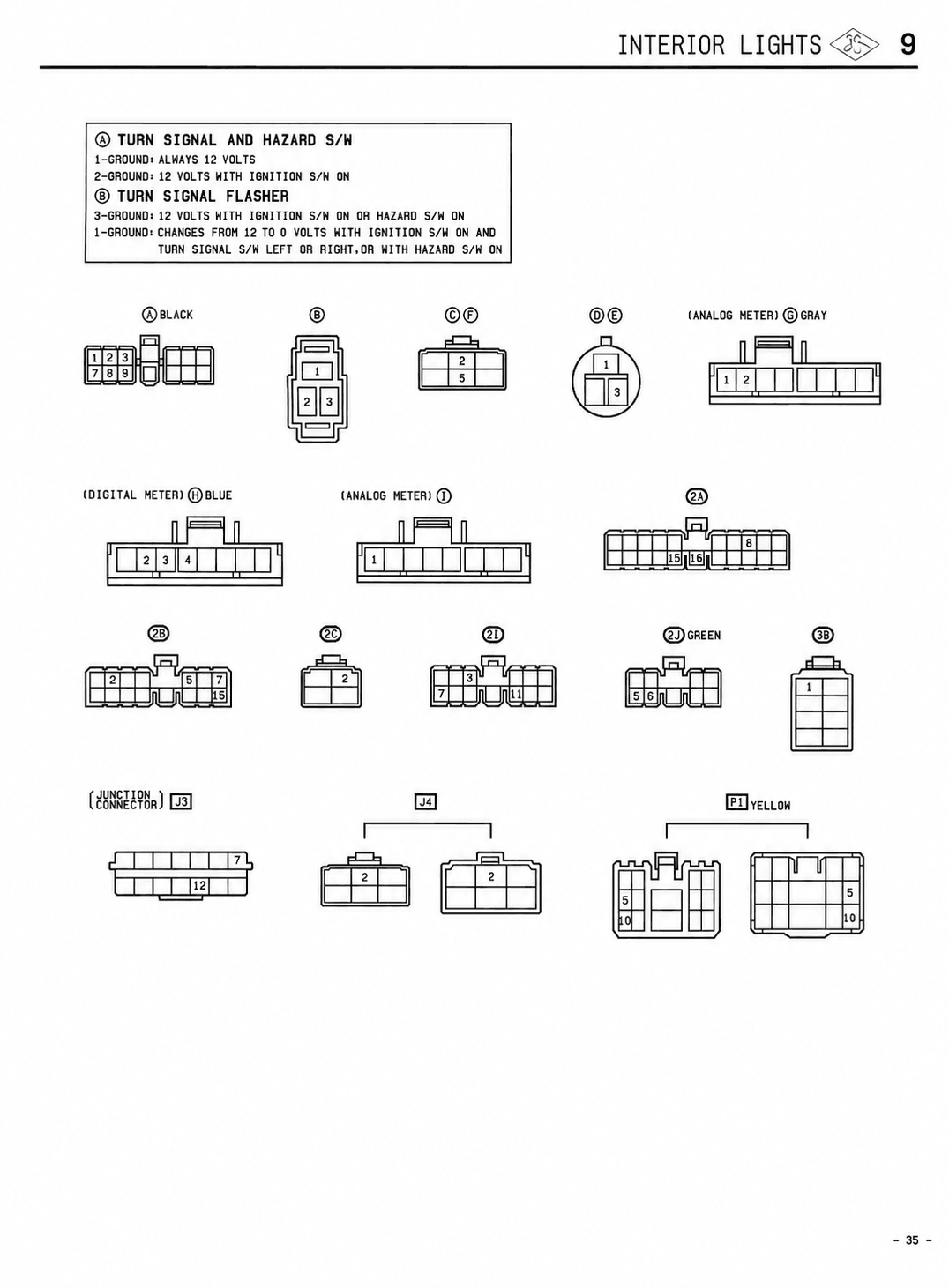

S9/Turn Signal and Hazard Warning Lights, page 2

SIGNAL & HAZARD

9

A TURN SIGNAL AND HAZARD S/W
1-GROUND: ALWAYS 12 VOLTS
2-GROUND: 12 VOLTS WITH IGNITION S/W ON
B TURN SIGNAL FLASHER
3-GROUND: 12 VOLTS WITH IGNITION S/W ON OR HAZARD S/W ON
1-GROUND: CHANGES FROM 12 TO 0 VOLTS WITH IGNITION S/W ON AND
TURN SIGNAL S/W LEFT OR RIGHT,OR WITH HAZARD S/W ON

A BLACK
1 2 3
7 9 5

B
2 1

C C
2
5

D E
1
2
3

(ANALOG METER) G GRAY
1 2

(DIGITAL METER) D BLUE
2 3 4

(ANALOG METER) I
1

21
8
15 16 8

2B
2
5 7

2A
2

2J
5
7

2J GREEN
5 6

3B
1

(JUNCTION CONNECTOR) J3
7
12

J4
2

2

Z1 YELLOW
3
4

5
10

- 35 -
