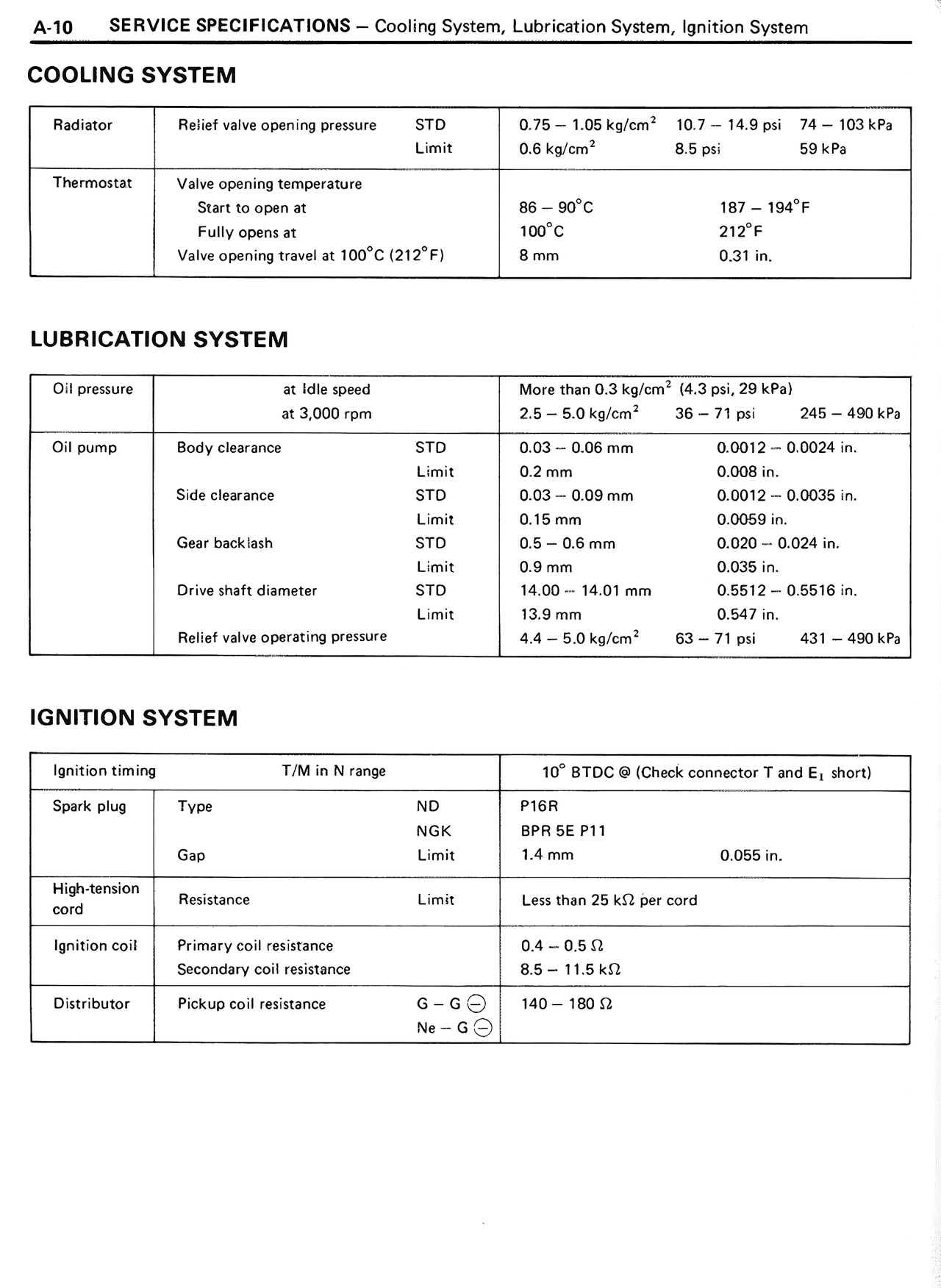

A-10 SERVICE SPECIFICATIONS — Cooling System, Lubrication System, Ignition System
COOLING SYSTEM
Radiator
Relief valve opening pressure
STD: 0.75 — 1.05 kg/cm² | 10.7 — 14.9 psi | 74 — 103 kPa
Limit: 0.6 kg/cm² | 8.5 psi | 59 kPa
Thermostat
Valve opening temperature
Start to open at: 86 — 90°C | 187 — 194°F
Fully opens at: 100°C | 212°F
Valve opening travel at 100°C (212°F): 8 mm | 0.31 in.
LUBRICATION SYSTEM
Oil pressure
at idle speed
at 3,000 rpm
More than 0.3 kg/cm² (4.3 psi, 29 kPa)
2.5 — 5.0 kg/cm² | 36 — 71 psi | 245 — 490 kPa
Oil pump
Body clearance
STD: 0.03 — 0.06 mm | 0.0012 — 0.0024 in.
Limit: 0.2 mm | 0.008 in.
Side clearance
STD: 0.03 — 0.09 mm | 0.0012 — 0.0035 in.
Limit: 0.15 mm | 0.0059 in.
Gear backlash
STD: 0.5 — 0.6 mm | 0.020 — 0.024 in.
Limit: 0.9 mm | 0.035 in.
Drive shaft diameter
STD: 14.00 — 14.01 mm | 0.5512 — 0.5516 in.
Limit: 13.9 mm | 0.547 in.
Relief valve operating pressure
4.4 — 5.0 kg/cm² | 63 — 71 psi | 431 — 490 kPa
IGNITION SYSTEM
Ignition timing
T/M in N range
10° BTDC © (Check connector T and E₁ short)
Spark plug
Type
ND: P16R
NGK: BPR 5E P11
Gap
Limit: 1.4 mm | 0.055 in.
High-tension cord
Resistance
Limit: Less than 25 kΩ per cord
Ignition coil
Primary coil resistance: 0.4 — 0.5 Ω
Secondary coil resistance: 8.5 — 11.5 kΩ
Distributor
Pickup coil resistance
G — G ⊖: 140 — 180 Ω
Ne — G ⊖
