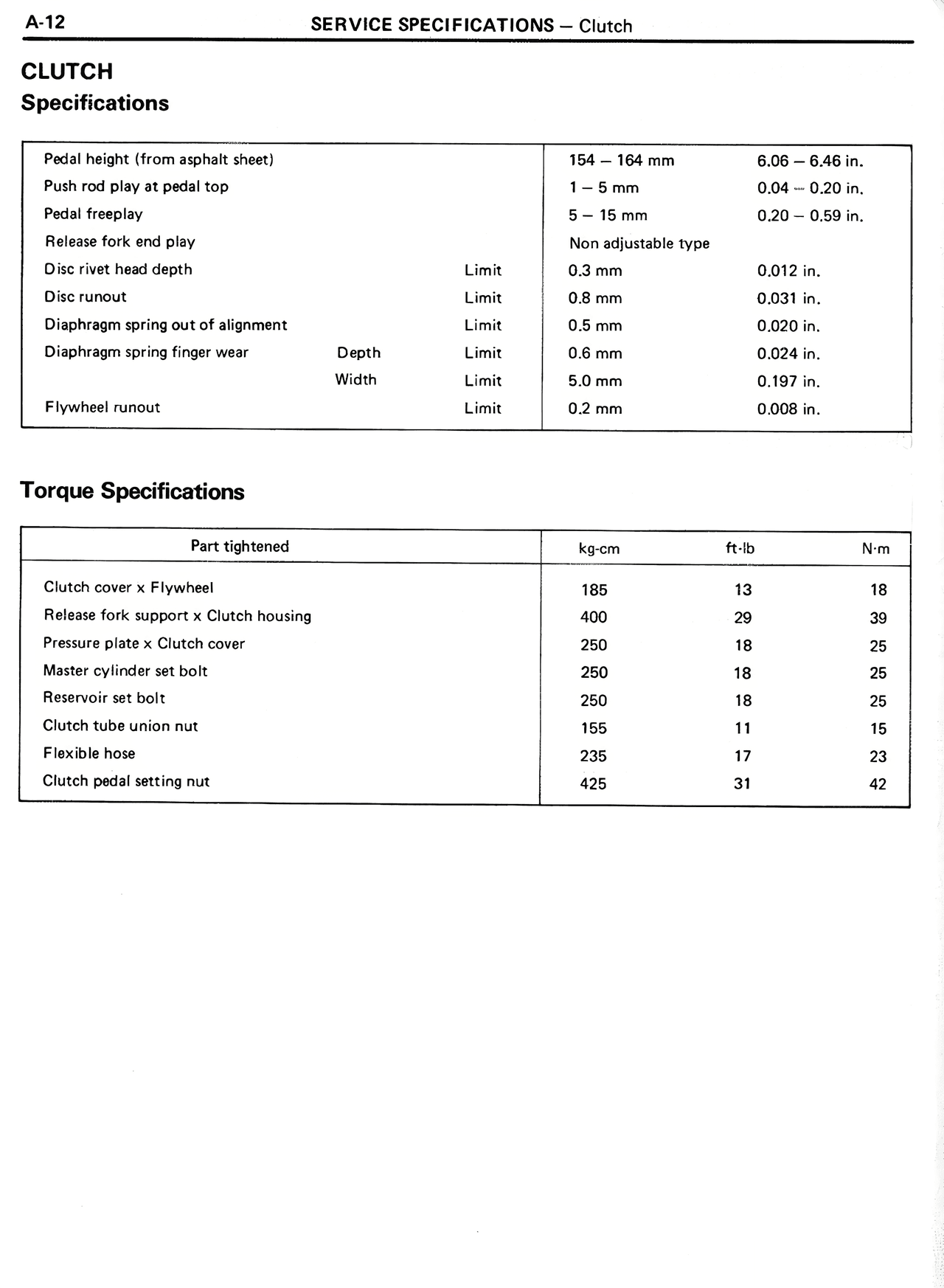

CLUTCH
Specifications
Pedal height (from asphalt sheet) 154 - 164 mm 6.06 - 6.46 in.
Push rod play at pedal top 1 - 5 mm 0.04 - 0.20 in.
Pedal freeplay 5 - 15 mm 0.20 - 0.59 in.
Release fork free play Non adjustable type
Disc rivet head depth Limit 0.3 mm 0.012 in.
Disc runout Limit 0.8 mm 0.031 in.
Diaphragm spring out of alignment Limit 0.5 mm 0.020 in.
Diaphragm spring finger wear Depth Limit 0.6 mm 0.024 in.
Width Limit 5.0 mm 0.197 in.
Flywheel runout Limit 0.2 mm 0.008 in.
Torque Specifications
Part tightened kg-cm ft-lb N·m
Clutch cover x Flywheel 185 13 18
Release fork support x Clutch housing 400 29 39
Pressure plate x Clutch cover 250 18 25
Master cylinder set bolt 250 18 25
Reservoir set bolt 250 18 25
Clutch tube union nut 155 11 15
Flexible hose 235 17 23
Clutch pedal setting nut 425 31 42
