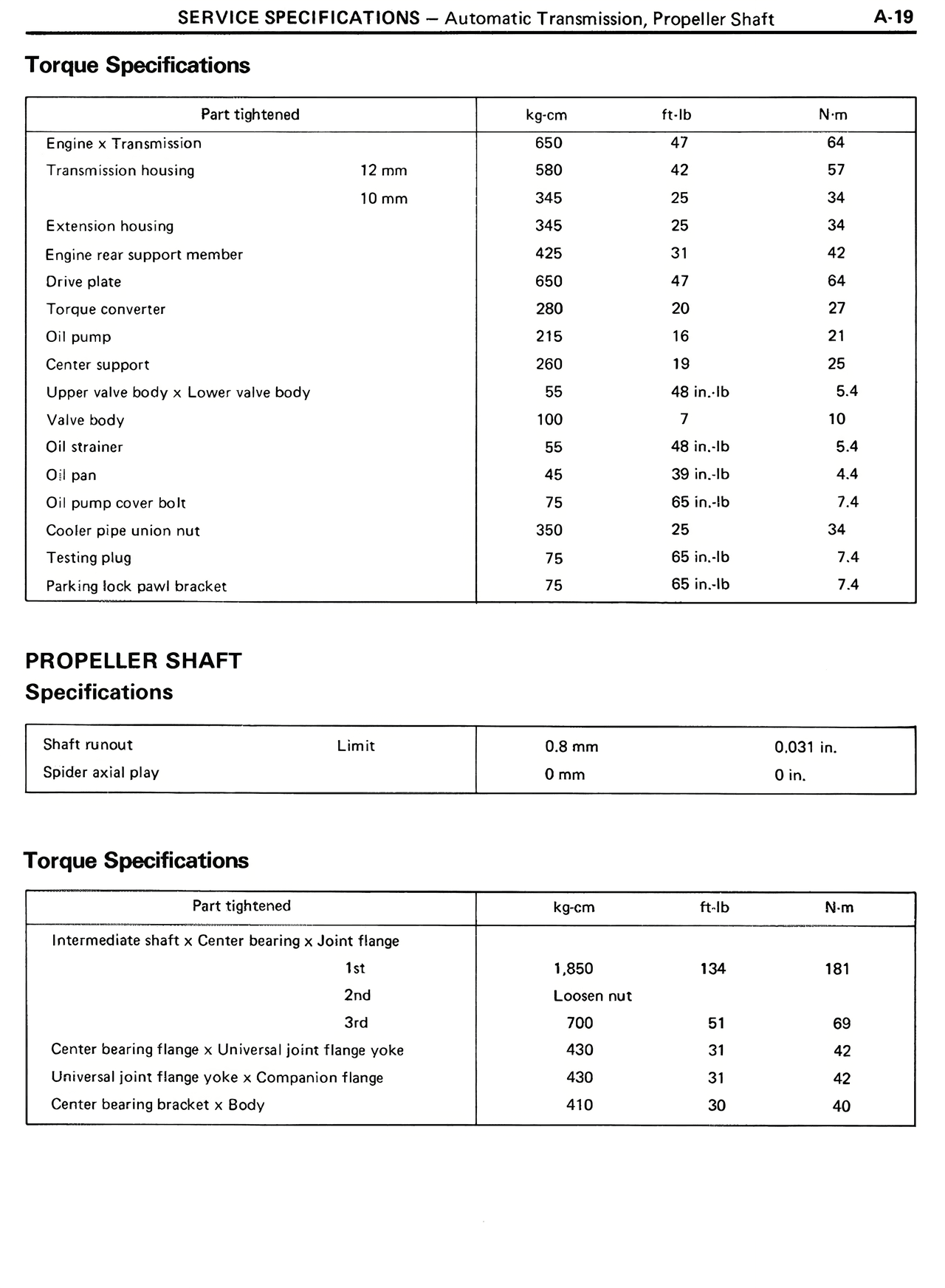

SERVICE SPECIFICATIONS — Automatic Transmission, Propeller Shaft A-19
Torque Specifications
Part tightened kg-cm ft-lb N-m
Engine x Transmission 650 47 64
Transmission housing 12 mm 580 42 57
10 mm 345 25 34
Extension housing 345 25 34
Engine rear support member 425 31 42
Drive plate 650 47 64
Torque converter 280 20 27
Oil pump 215 16 21
Center support 260 19 25
Upper valve body x Lower valve body 55 48 in.-lb 5.4
Valve body 100 7 10
Oil strainer 55 48 in.-lb 5.4
Oil pan 45 39 in.-lb 4.4
Oil pump cover bolt 75 65 in.-lb 7.4
Cooler pipe union nut 350 25 34
Testing plug 75 65 in.-lb 7.4
Parking lock pawl bracket 75 65 in.-lb 7.4
PROPELLER SHAFT
Specifications
Limit 0.8 mm 0.031 in.
Shaft runout
Spider axial play 0 mm 0 in.
Torque Specifications
Part tightened kg-cm ft-lb N-m
Intermediate shaft x Center bearing x Joint flange
1st 1,850 134 181
2nd Loosen nut
3rd 700 51 69
Center bearing flange x Universal joint flange yoke 430 31 42
Universal joint flange yoke x Companion flange 430 31 42
Center bearing bracket x Body 410 30 40
