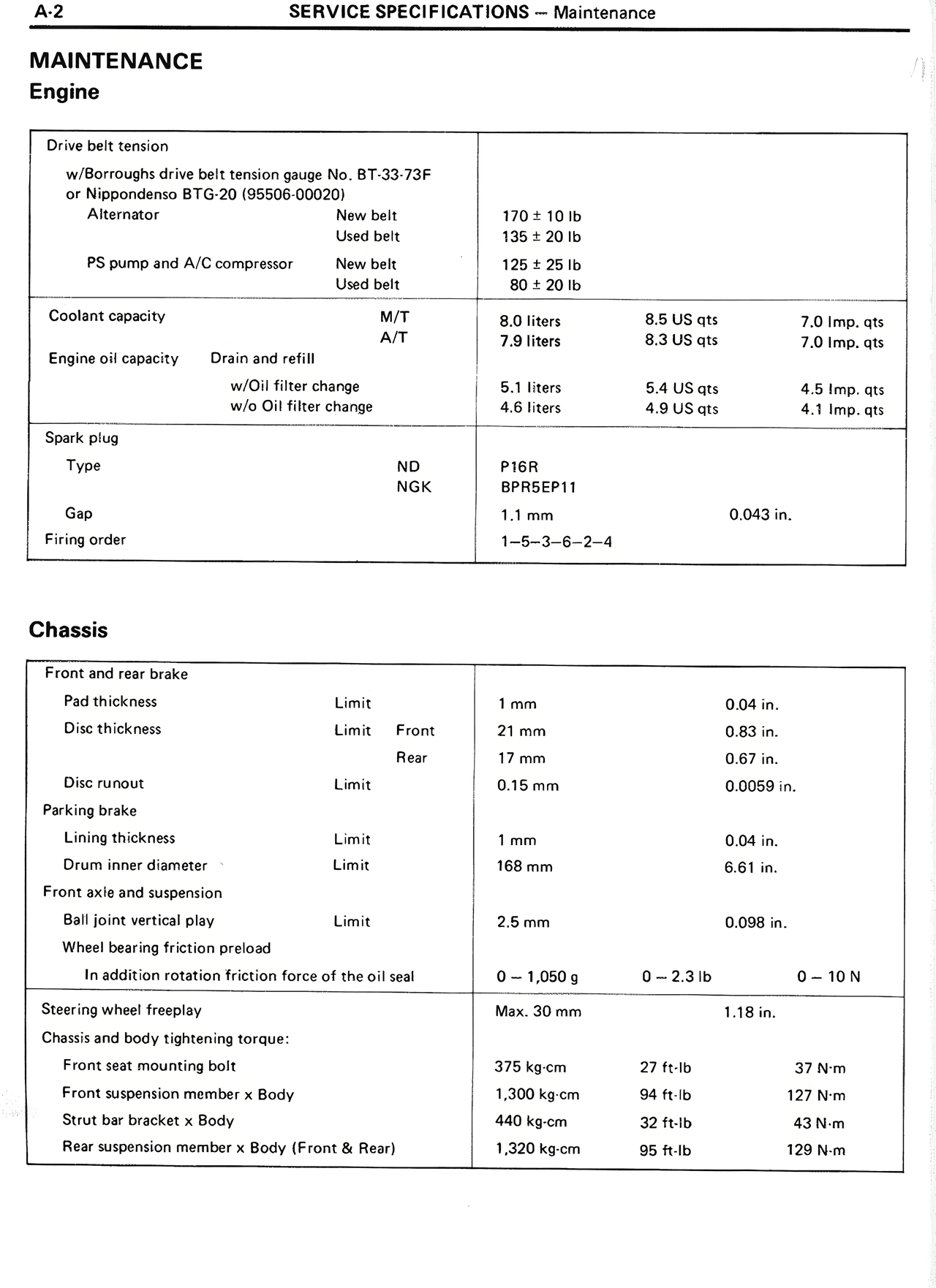

MAINTENANCE
Engine
Drive belt tension
w/Borroughs drive belt tension gauge No. BT-33-73F
or Nippondenso BTG-20 (95506-00020)
Alternator New belt 170 ± 10 lb
Used belt 135 ± 20 lb
PS pump and A/C compressor New belt 125 ± 25 lb
Used belt 80 ± 20 lb
Coolant capacity M/T 8.0 liters 8.5 US qts 7.0 Imp. qts
A/T 7.9 liters 8.3 US qts 7.0 Imp. qts
Engine oil capacity Drain and refill
w/Oil filter change 5.1 liters 5.4 US qts 4.5 Imp. qts
w/o Oil filter change 4.6 liters 4.9 US qts 4.1 Imp. qts
Spark plug
Type ND P16R
NGK BPR5EP11
Gap 1.1 mm 0.043 in.
Firing order 1-5-3-6-2-4
Chassis
Front and rear brake
Pad thickness Limit 1 mm 0.04 in.
Disc thickness Limit Front 21 mm 0.83 in.
Rear 17 mm 0.67 in.
Disc runout Limit 0.15 mm 0.0059 in.
Parking brake
Lining thickness Limit 1 mm 0.04 in.
Drum inner diameter Limit 168 mm 6.61 in.
Front and suspension
Ball joint vertical play Limit 2.5 mm 0.098 in.
Wheel bearing friction preload
In addition rotation friction force of the oil seal 0 - 1,050 g 0 - 2.3 lb 0 - 10 N
Steering wheel freeplay Max. 30 mm 1.18 in.
Chassis and body tightening torque:
Front seat mounting bolt 375 kg-cm 27 ft-lb 37 N·m
Front suspension member x Body 1,300 kg-cm 94 ft-lb 127 N·m
Strut bar bracket x Body 440 kg-cm 32 ft-lb 43 N·m
Rear suspension member x Body (Front & Rear) 1,320 kg-cm 95 ft-lb 129 N·m
