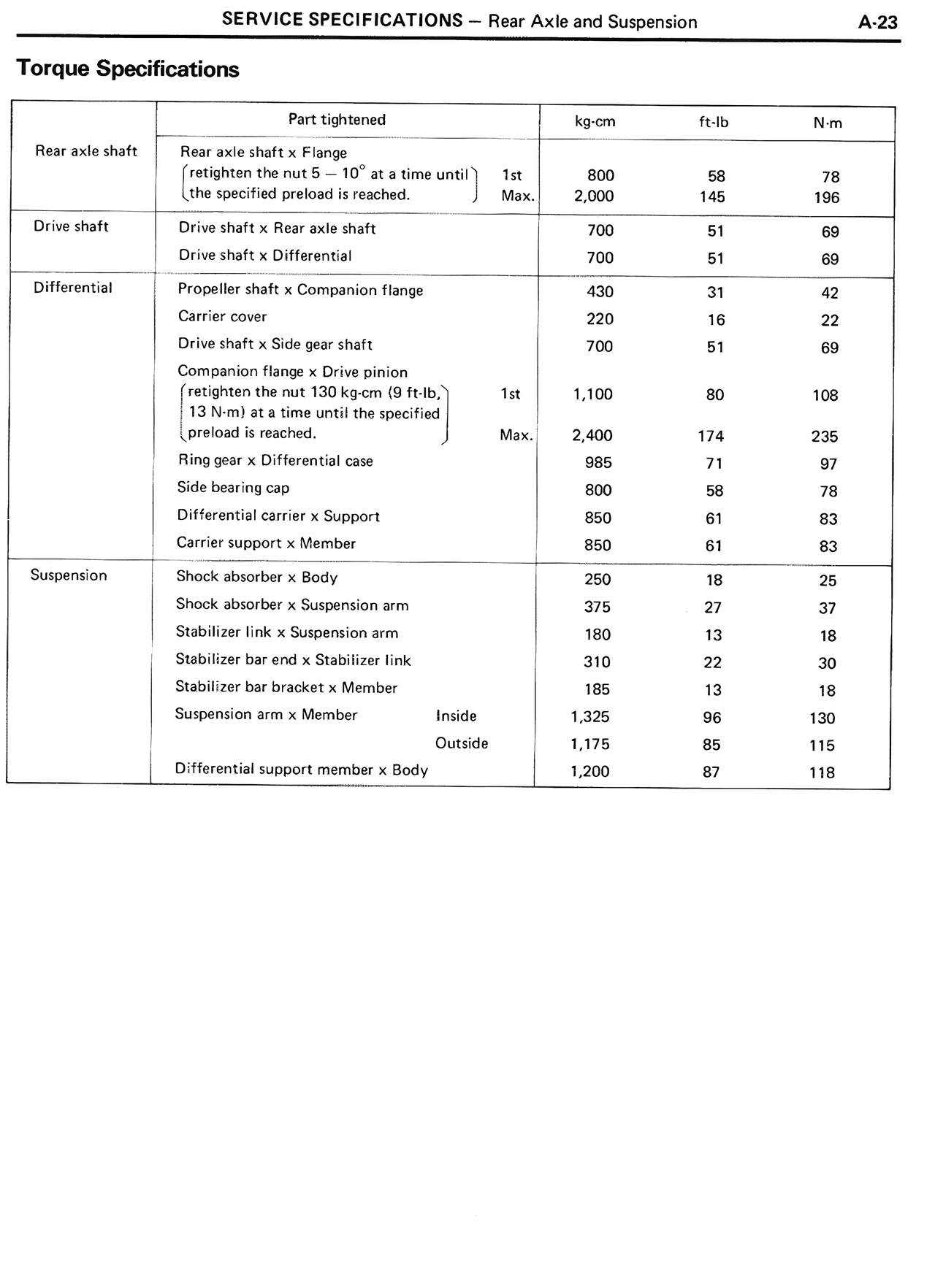

Torque Specifications Part tightened kg-cm ft-lb N-m Rear axle shaft Rear axle shaft x Flange (retighten the nut 5 — 10° at a time until 1st 800 58 78 the specified preload is reached. Max. 2,000 145 196 Drive shaft Drive shaft x Rear axle shaft 700 51 69 Drive shaft x Differential 700 51 69 Differential Propeller shaft x Companion flange 430 31 42 Carrier cover 220 16 22 Drive shaft x Side gear shaft 700 51 69 Companion flange x Drive pinion (retighten the nut 130 kg-cm (9 ft-lb,) 1st 1,100 80 108 13 N-m) at a time until the specified preload is reached. Max. 2,400 174 235 Ring gear x Differential case 985 71 97 Side bearing cap 800 58 78 Differential carrier x Support 850 61 83 Carrier support x Member 850 61 83 Suspension Shock absorber x Body 250 18 25 Shock absorber x Suspension arm 375 27 37 Stabilizer link x Suspension arm 180 13 18 Stabilizer bar end x Stabilizer link 310 22 30 Stabilizer bar bracket x Member 185 13 18 Suspension arm x Member Inside 1,325 96 130 Outside 1,175 85 115 Differential support member x Body 1,200 87 118
