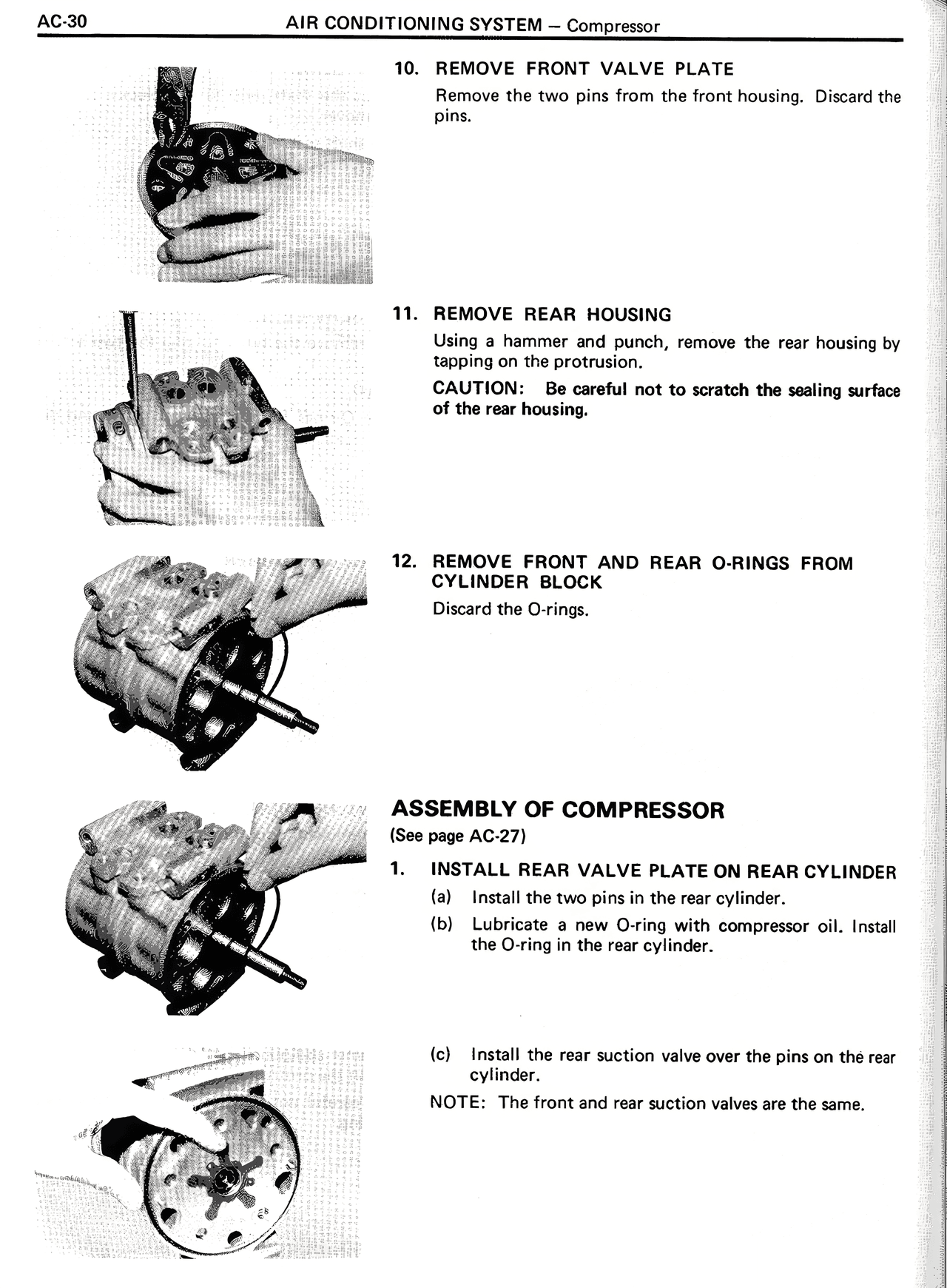

10. REMOVE FRONT VALVE PLATE Remove the two pins from the front housing. Discard the pins. 11. REMOVE REAR HOUSING Using a hammer and punch, remove the rear housing by tapping on the protrusion. CAUTION: Be careful not to scratch the sealing surface of the rear housing. 12. REMOVE FRONT AND REAR O-RINGS FROM CYLINDER BLOCK Discard the O-rings. ASSEMBLY OF COMPRESSOR (See page AC-27) 1. INSTALL REAR VALVE PLATE ON REAR CYLINDER (a) Install the two pins in the rear cylinder. (b) Lubricate a new O-ring with compressor oil. Install the O-ring in the rear cylinder. (c) Install the rear suction valve over the pins on the rear cylinder. NOTE: The front and rear suction valves are the same.
