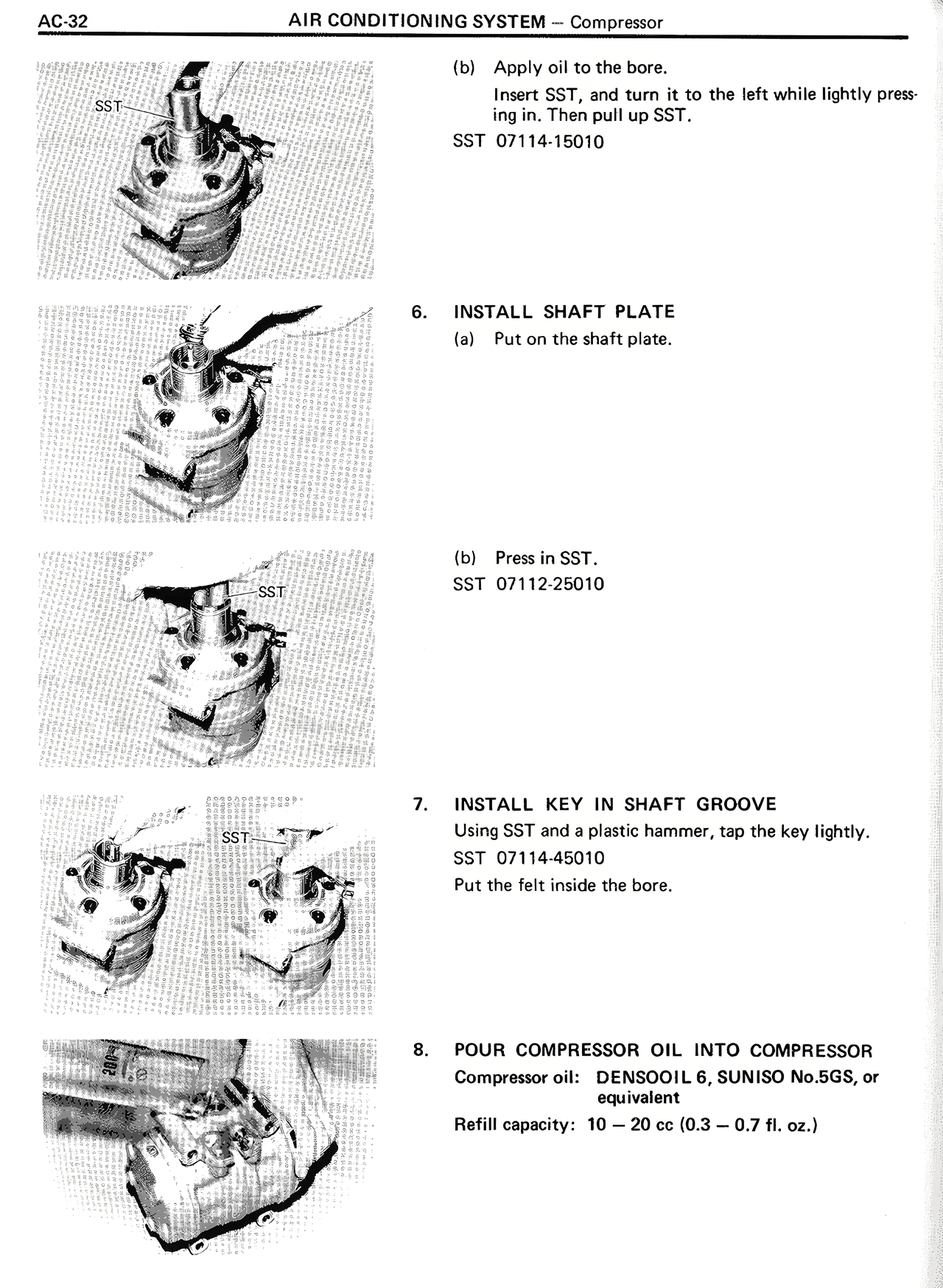

AC-32 AIR CONDITIONING SYSTEM — Compressor
(b) Apply oil to the bore.
Insert SST, and turn it to the left while lightly pressing in. Then pull up SST.
SST 07114-15010
6. INSTALL SHAFT PLATE
(a) Put on the shaft plate.
(b) Press in SST.
SST 07112-25010
7. INSTALL KEY IN SHAFT GROOVE
Using SST and a plastic hammer, tap the key lightly.
SST 07114-45010
Put the felt inside the bore.
8. POUR COMPRESSOR OIL INTO COMPRESSOR
Compressor oil: DENSOoil 6, SUNISO No.5GS, or
equivalent
Refill capacity: 10 — 20 cc (0.3 — 0.7 fl. oz.)
