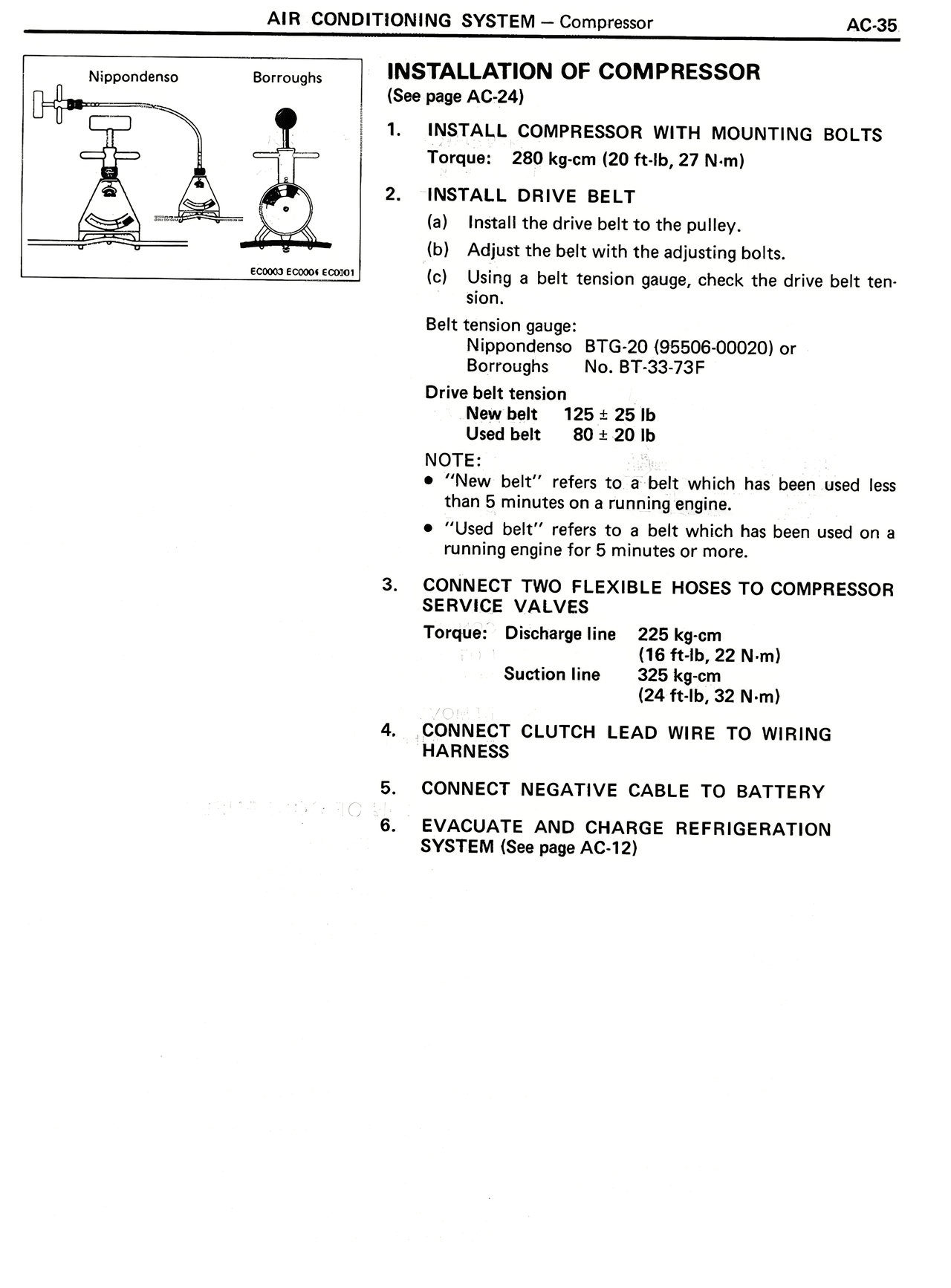

AIR CONDITIONING SYSTEM — Compressor                                AC-35

Nippondenso        Borroughs

FD0003 FD0004 FD0051

INSTALLATION OF COMPRESSOR
(See page AC-24)

1.  INSTALL COMPRESSOR WITH MOUNTING BOLTS
    Torque: 280 kg-cm (20 ft-lb, 29 N·m)

2.  INSTALL DRIVE BELT
    (a)  Install the drive belt to the pulley.
    (b)  Adjust the belt with the adjusting bolts.
    (c)  Using a belt tension gauge, check the drive belt tension.

    Belt tension gauge:
    Nippondenso  BTG-20 (95506-00020) or
    Borroughs    No. BT-33-73F

    Drive belt tension
    New belt   125 ± 25 lb
    Used belt   80 ± 20 lb

    NOTE:
    • "New belt" refers to a belt which has been used less
      than 5 minutes on a running engine.
    • "Used belt" refers to a belt which has been used on a
      running engine for 5 minutes or more.

3.  CONNECT TWO FLEXIBLE HOSES TO COMPRESSOR
    SERVICE VALVES
    Torque:  Discharge line  225 kg-cm
                              (16 ft-lb, 22 N·m)
             Suction line    325 kg-cm
                              (24 ft-lb, 32 N·m)

4.  CONNECT CLUTCH LEAD WIRE TO WIRING
    HARNESS

5.  CONNECT NEGATIVE CABLE TO BATTERY

6.  EVACUATE AND CHARGE REFRIGERATION
    SYSTEM (See page AC-12)
