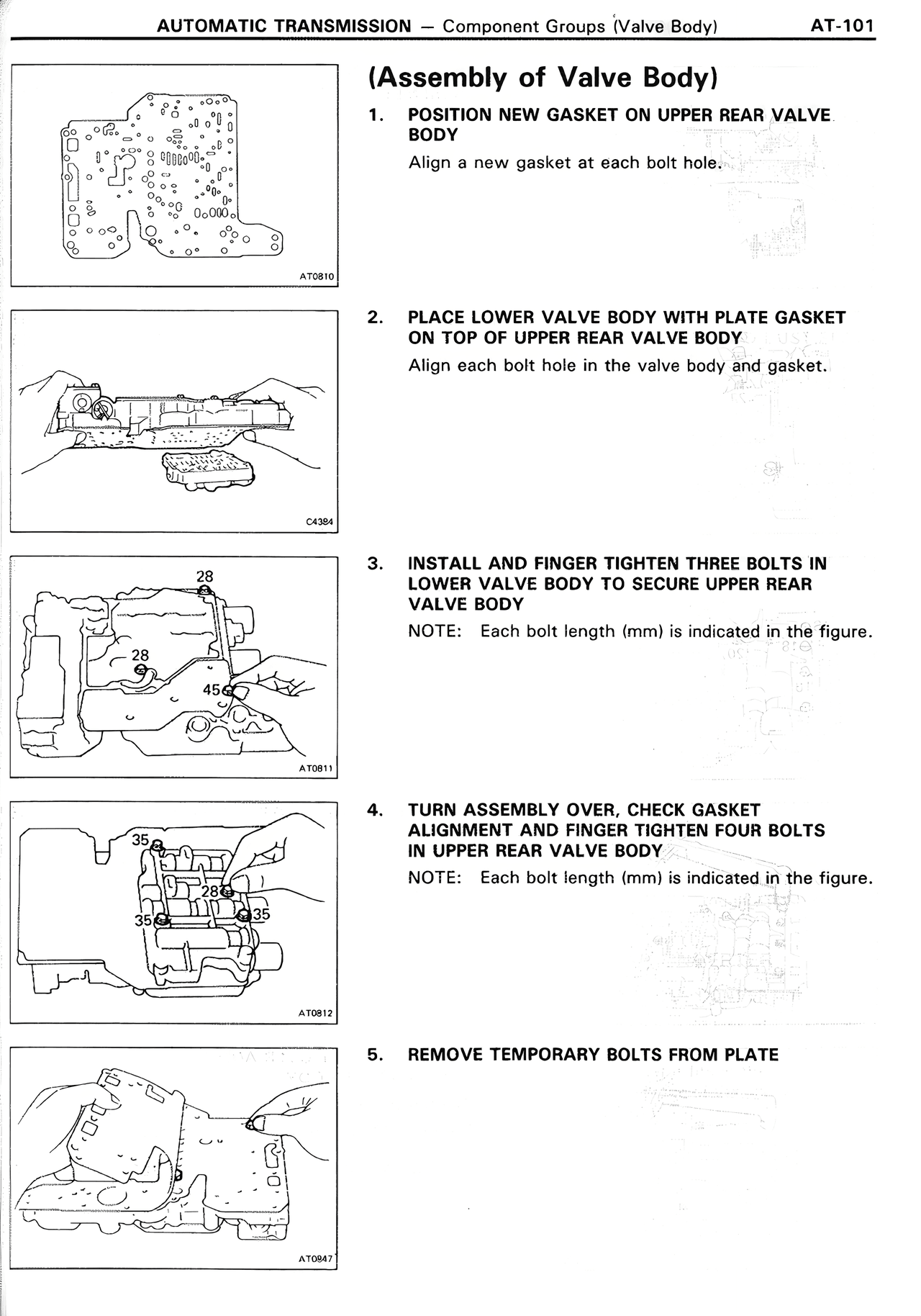

AUTOMATIC TRANSMISSION — Component Groups (Valve Body) AT-101 (Assembly of Valve Body) 1. POSITION NEW GASKET ON UPPER REAR VALVE BODY Align a new gasket at each bolt hole. 2. PLACE LOWER VALVE BODY WITH PLATE GASKET ON TOP OF UPPER REAR VALVE BODY Align each bolt hole in the valve body and gasket. 3. INSTALL AND FINGER TIGHTEN THREE BOLTS IN LOWER VALVE BODY TO SECURE UPPER REAR VALVE BODY NOTE: Each bolt length (mm) is indicated in the figure. 4. TURN ASSEMBLY OVER, CHECK GASKET ALIGNMENT AND FINGER TIGHTEN FOUR BOLTS IN UPPER REAR VALVE BODY NOTE: Each bolt length (mm) is indicated in the figure. 5. REMOVE TEMPORARY BOLTS FROM PLATE
