AT/Automatic Transmission — Extension Housing, page 103

AUTOMATIC TRANSMISSION — Component Groups
(Extension Housing, Torque Converter)
AT-103

(Remove)
SST
19.7 — 20.3 mm
(0.776 — 0.799 in.)
(Install)
SST
WA0108
WA0109

SST
GN004A

SST
GN005A

SST
AT0003

SST
AT0053

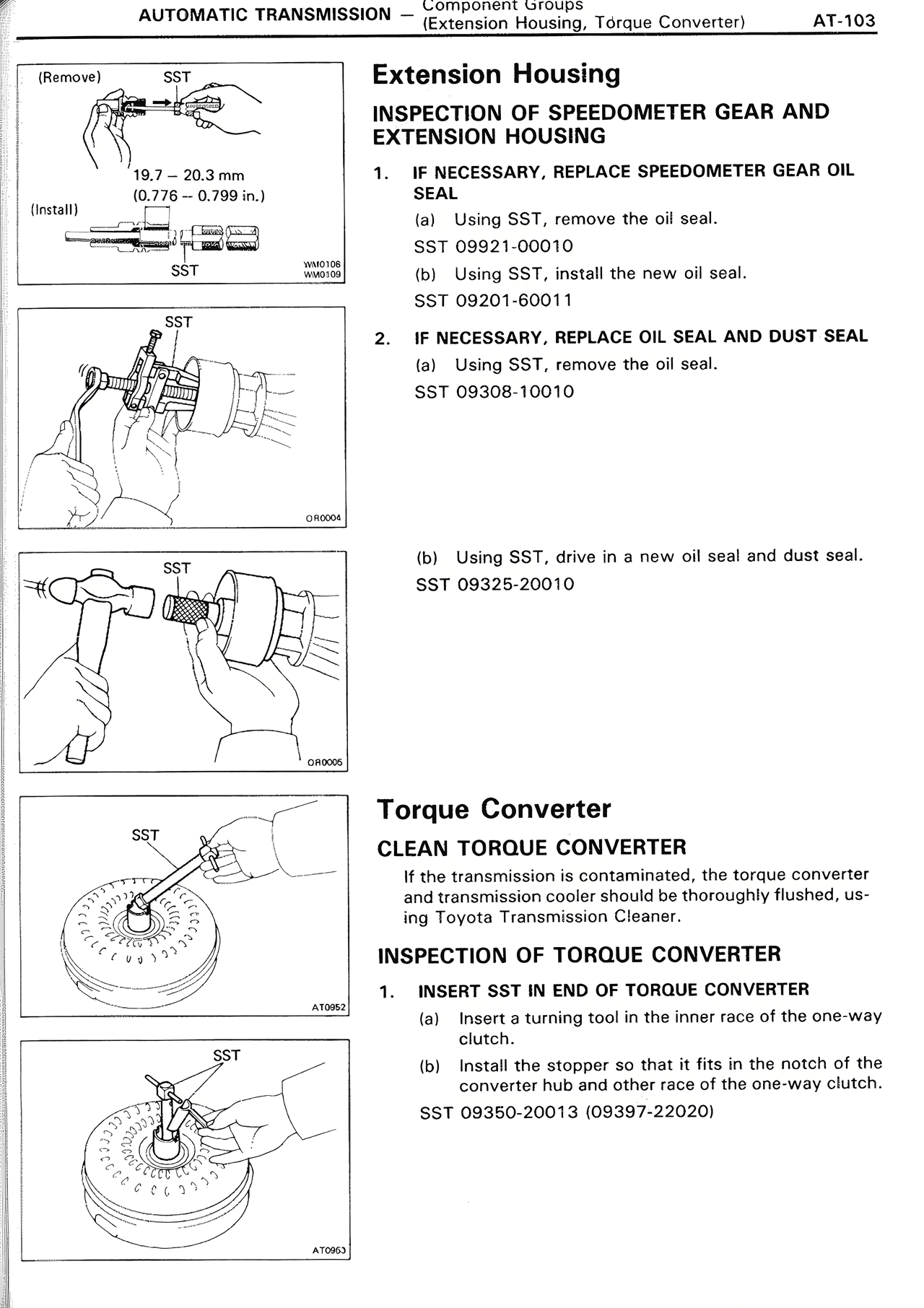

Extension Housing

INSPECTION OF SPEEDOMETER GEAR AND
EXTENSION HOUSING

1. IF NECESSARY, REPLACE SPEEDOMETER GEAR OIL
SEAL
(a) Using SST, remove the oil seal.
SST 09921-00010
(b) Using SST, install the new oil seal.
SST 09201-60011

2. IF NECESSARY, REPLACE OIL SEAL AND DUST SEAL
(a) Using SST, remove the oil seal.
SST 09308-10010

(b) Using SST, drive in a new oil seal and dust seal.
SST 09325-20010

Torque Converter

CLEAN TORQUE CONVERTER
If the transmission is contaminated, the torque converter
and transmission cooler should be thoroughly flushed, us-
ing Toyota Transmission Cleaner.

INSPECTION OF TORQUE CONVERTER

1. INSERT SST IN END OF TORQUE CONVERTER
(a) Insert a turning tool in the inner race of the one-way
clutch.
(b) Install the stopper so that it fits in the notch of the
converter hub and other race of the one-way clutch.
SST 09350-20013 (09397-22020)
