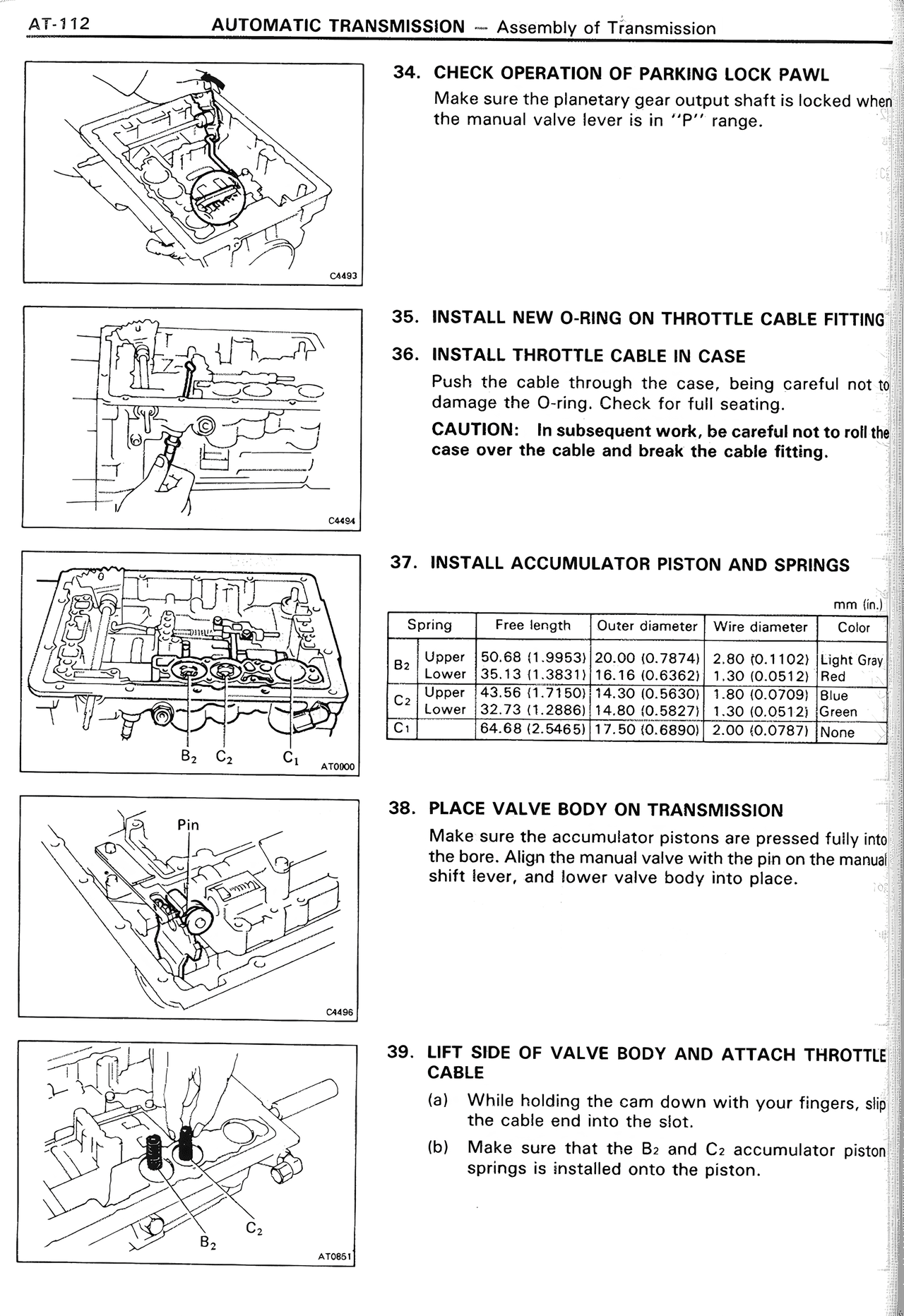

AT-112 AUTOMATIC TRANSMISSION — Assembly of Transmission
34. CHECK OPERATION OF PARKING LOCK PAWL
Make sure the planetary gear output shaft is locked when
the manual valve lever is in "P" range.
35. INSTALL NEW O-RING ON THROTTLE CABLE FITTING
36. INSTALL THROTTLE CABLE IN CASE
Push the cable through the case, being careful not to
damage the O-ring. Check for full seating.
CAUTION:
In subsequent work, be careful not to roll the
case over the cable and break the cable fitting.
37. INSTALL ACCUMULATOR PISTON AND SPRINGS
mm (in.)
Spring Free length Outer diameter Wire diameter Color
B₂ Upper 50.68 (1.9953) 20.00 (0.7874) 2.80 (0.1102) Light Gray
Lower 35.13 (1.3831) 16.16 (0.6362) 1.30 (0.0512) Red
C₂ Upper 43.56 (1.7150) 14.30 (0.5630) 1.30 (0.0709) Blue
Lower 32.73 (1.2886) 14.80 (0.5827) 1.30 (0.0512) Green
C₁ 64.68 (2.5465) 17.50 (0.6890) 2.00 (0.0787) None
38. PLACE VALVE BODY ON TRANSMISSION
Make sure the accumulator pistons are pressed fully into
the bore. Align the manual valve with the pin on the manual
shift lever, and lower valve body into place.
39. LIFT SIDE OF VALVE BODY AND ATTACH THROTTLE
CABLE
(a) While holding the cam down with your fingers, slip
the cable end into the slot.
(b) Make sure that the B₂ and C₂ accumulator piston
springs is installed onto the piston.
