AUTOMATIC TRANSMISSION — Assembly of Transmission — MK2 Supra Automatic Transmission, page 115
100%

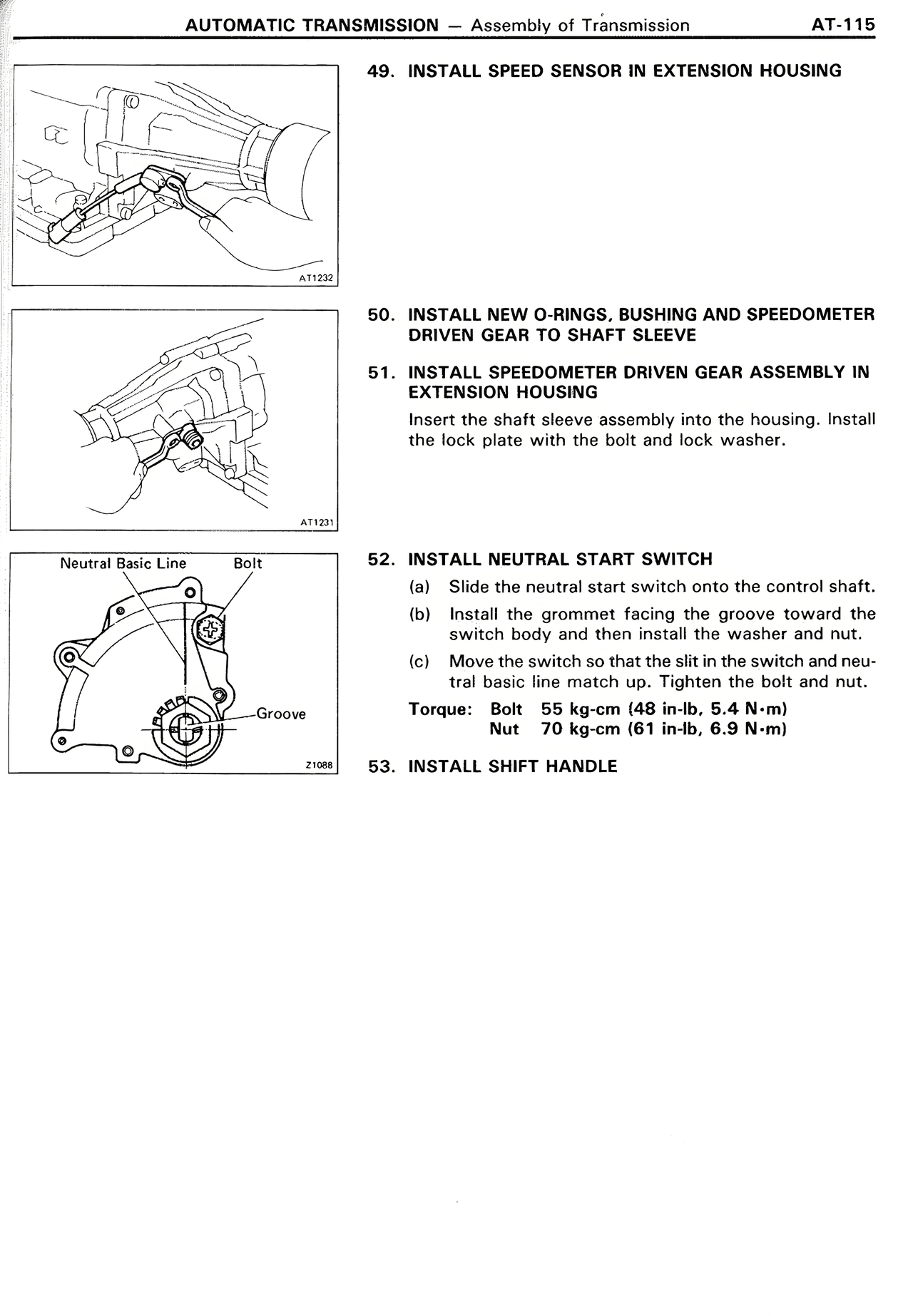

49. INSTALL SPEED SENSOR IN EXTENSION HOUSING 50. INSTALL NEW O-RINGS, BUSHING AND SPEEDOMETER DRIVEN GEAR TO SHAFT SLEEVE 51. INSTALL SPEEDOMETER DRIVEN GEAR ASSEMBLY IN EXTENSION HOUSING Insert the shaft sleeve assembly into the housing. Install the lock plate with the bolt and lock washer. 52. INSTALL NEUTRAL START SWITCH (a) Slide the neutral start switch onto the control shaft. (b) Install the grommet facing the groove toward the switch body and then install the washer and nut. (c) Move the switch so that the slit in the switch and neutral basic line match up. Tighten the bolt and nut. Torque: Bolt 55 kg-cm (48 in.lb, 5.4 N·m) Nut 70 kg-cm (61 in.lb, 6.9 N·m) 53. INSTALL SHIFT HANDLE
