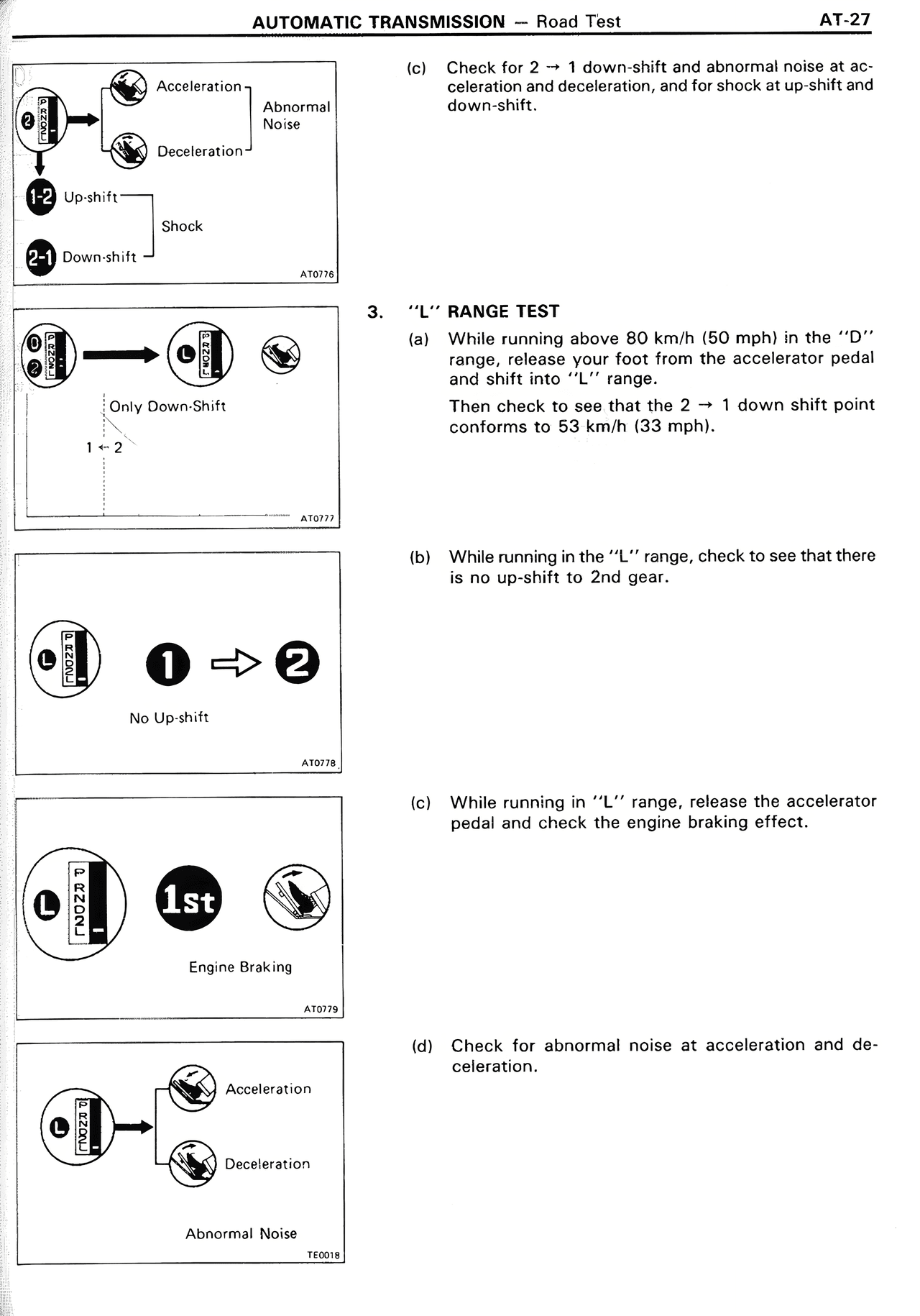

AUTOMATIC TRANSMISSION — Road Test
AT-27
(c) Check for 2 → 1 down-shift and abnormal noise at acceleration and deceleration, and for shock at up-shift and down-shift.
Acceleration
Abnormal Noise
Deceleration
Up-shift
Shock
Down-shift
AT0776
Only Down-Shift
1 → 2
AT0777
No Up-shift
AT0778
1st
Engine Braking
AT0779
Acceleration
Deceleration
Abnormal Noise
TE0018
3. "L" RANGE TEST
(a) While running above 80 km/h (50 mph) in the "D" range, release your foot from the accelerator pedal and shift into "L" range.
Then check to see that the 2 → 1 down shift point conforms to 53 km/h (33 mph).
(b) While running in the "L" range, check to see that there is no up-shift to 2nd gear.
(c) While running in "L" range, release the accelerator pedal and check the engine braking effect.
(d) Check for abnormal noise at acceleration and deceleration.
