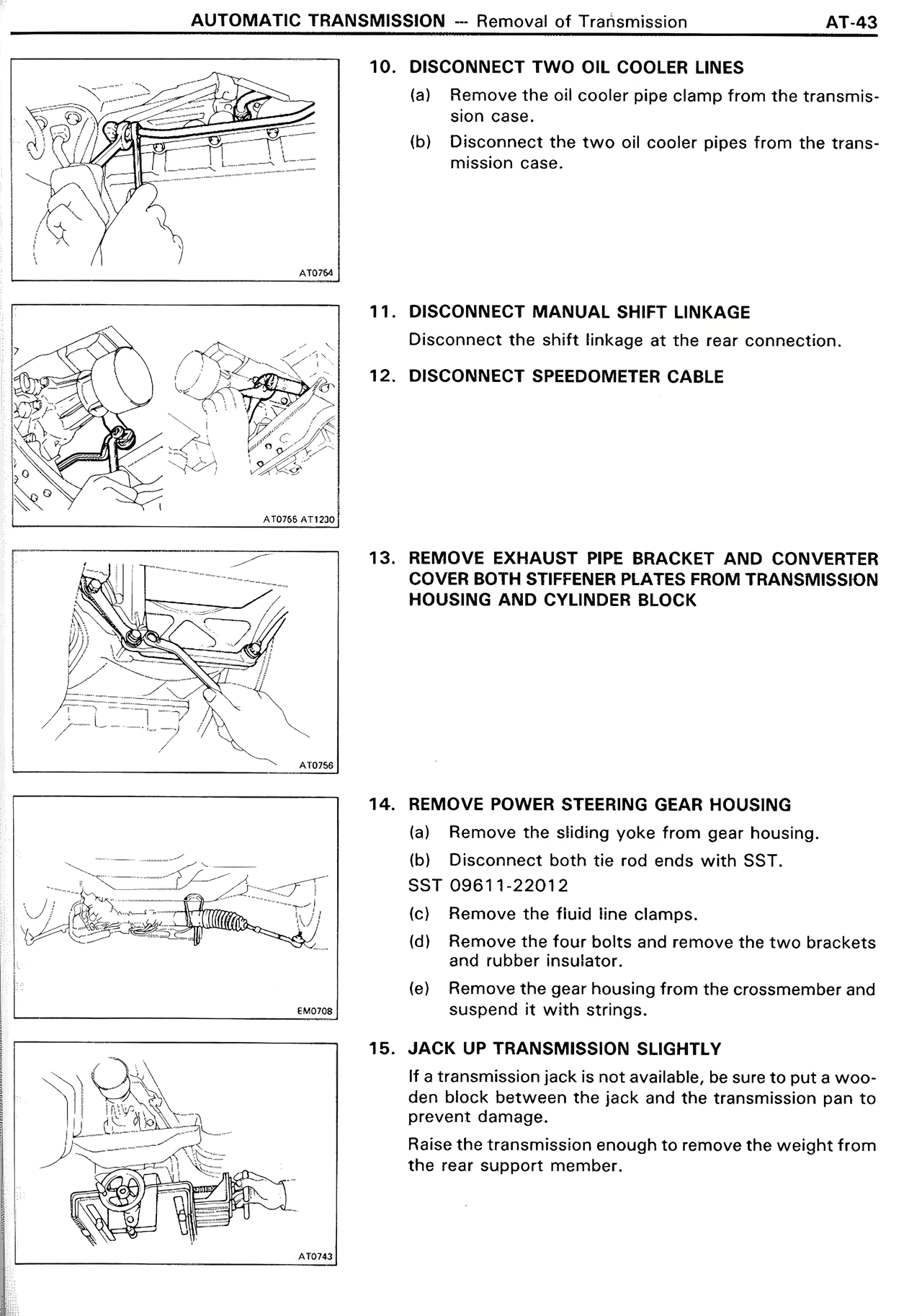

10. DISCONNECT TWO OIL COOLER LINES
(a) Remove the oil cooler pipe clamp from the transmission case.
(b) Disconnect the two oil cooler pipes from the transmission case.
11. DISCONNECT MANUAL SHIFT LINKAGE
Disconnect the shift linkage at the rear connection.
12. DISCONNECT SPEEDOMETER CABLE
13. REMOVE EXHAUST PIPE BRACKET AND CONVERTER COVER BOTH STIFFENER PLATES FROM TRANSMISSION HOUSING AND CYLINDER BLOCK
14. REMOVE POWER STEERING GEAR HOUSING
(a) Remove the sliding yoke from housing.
(b) Disconnect both tie rod ends with SST.
SST 09611-22012
(c) Remove the fluid line clamps.
(d) Remove the four bolts and remove the two brackets and rubber insulator.
(e) Remove the gear housing from the crossmember and suspend it with strings.
15. JACK UP TRANSMISSION SLIGHTLY
If a transmission jack is not available, be sure to put a wooden block between the jack and the transmission pan to prevent damage.
Raise the transmission enough to remove the weight from the rear support member.
