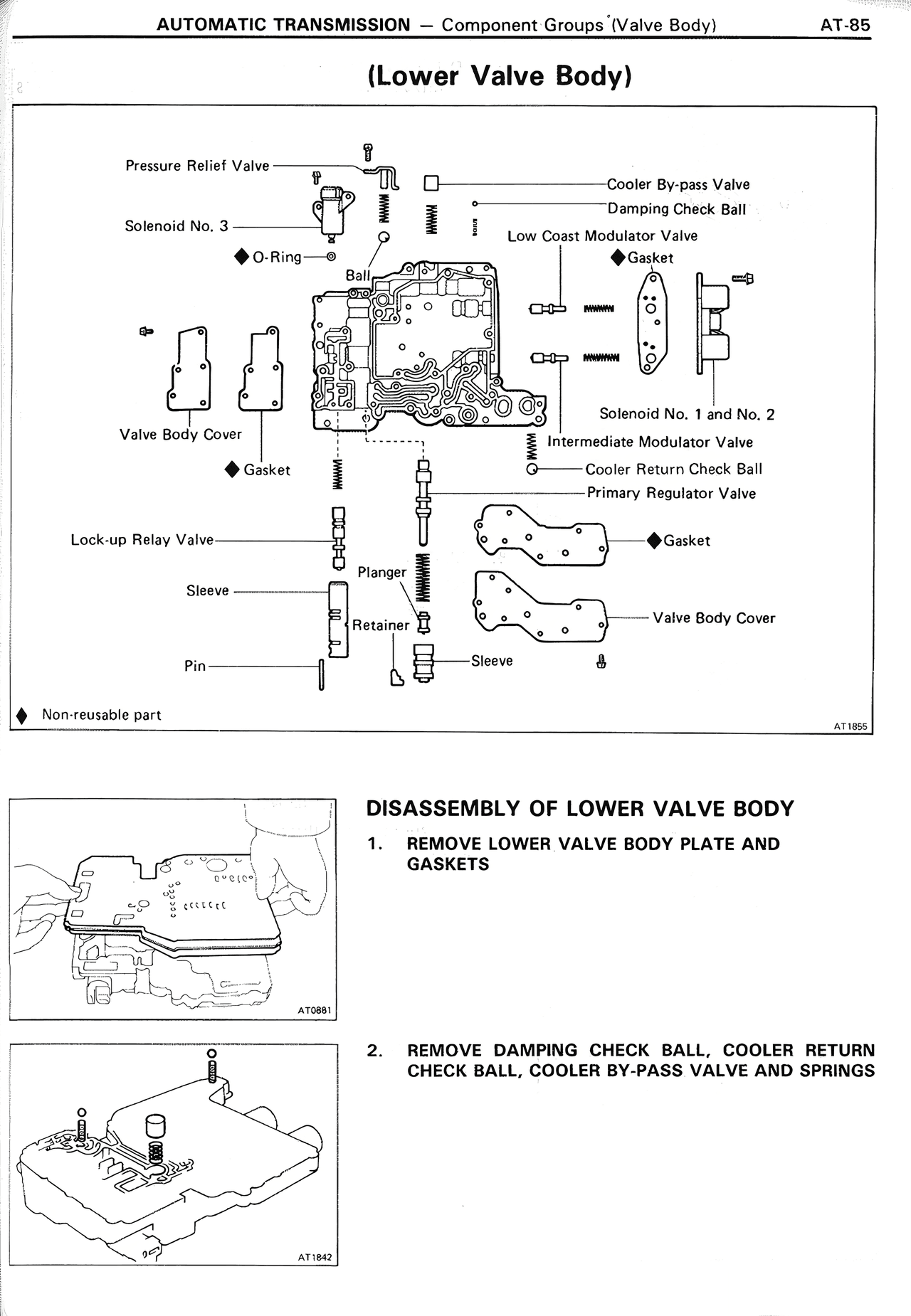

AUTOMATIC TRANSMISSION — Component Groups (Valve Body)     AT-85

(Lower Valve Body)

Pressure Relief Valve
Solenoid No. 3
♦ O-Ring

Valve Body Cover
♦ Gasket

Lock-up Relay Valve
Sleeve
Plunger
Retainer
Pin
Sleeve

Cooler By-pass Valve
Damping Check Ball
Low Coast Modulator Valve
♦ Gasket

Solenoid No. 1 and No. 2
Intermediate Modulator Valve
Cooler Return Check Ball
Primary Regulator Valve
♦ Gasket

Valve Body Cover

♦ Non-reusable part

AT1895

DISASSEMBLY OF LOWER VALVE BODY

1. REMOVE LOWER VALVE BODY PLATE AND GASKETS

AT0881

2. REMOVE DAMPING CHECK BALL, COOLER RETURN CHECK BALL, COOLER BY-PASS VALVE AND SPRINGS

AT1842
