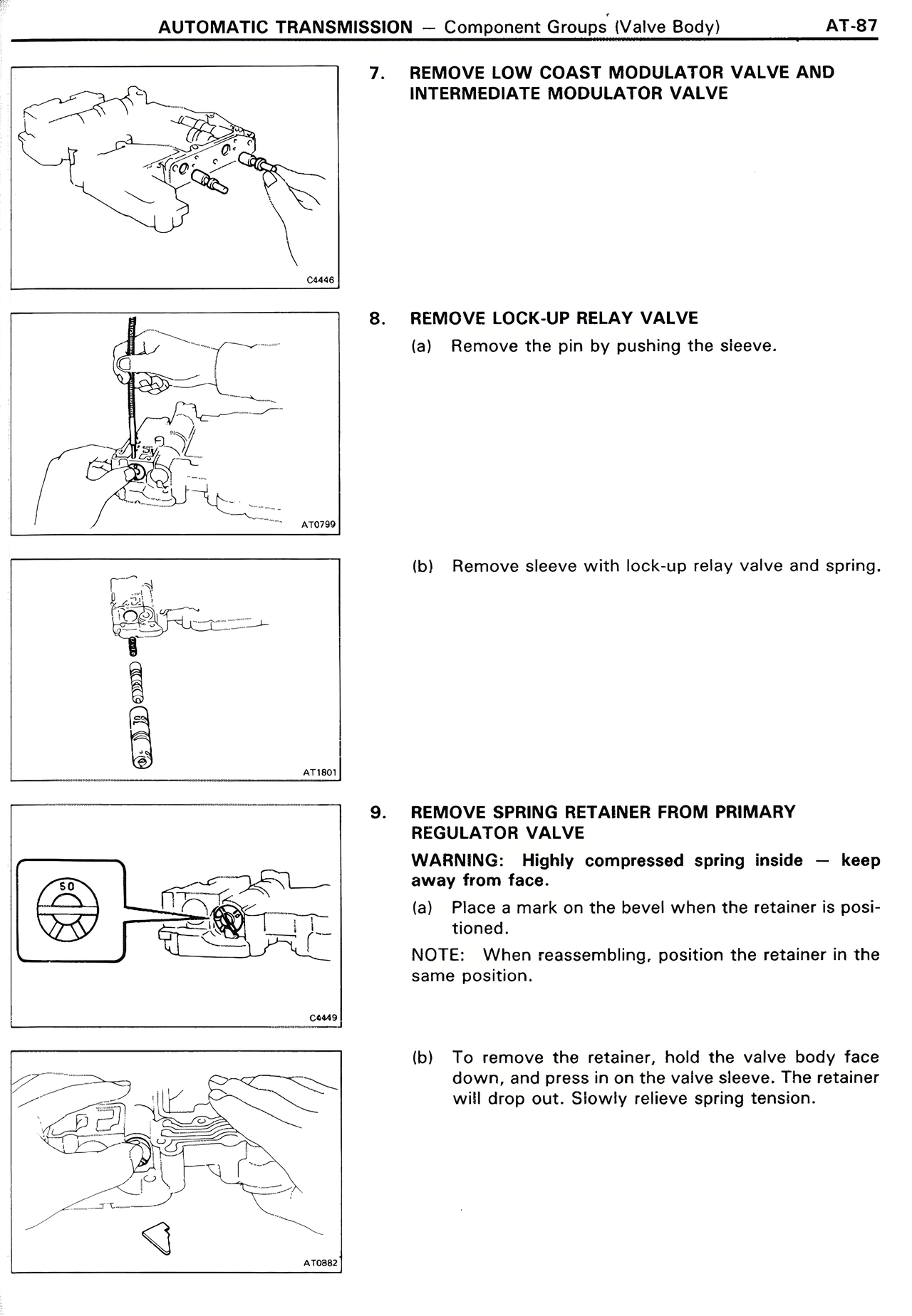

7. REMOVE LOW COAST MODULATOR VALVE AND INTERMEDIATE MODULATOR VALVE
8. REMOVE LOCK-UP RELAY VALVE
(a) Remove the pin by pushing the sleeve.
(b) Remove sleeve with lock-up relay valve and spring.
9. REMOVE SPRING RETAINER FROM PRIMARY REGULATOR VALVE
WARNING: Highly compressed spring inside — keep away from face.
(a) Place a mark on the bevel when the retainer is positioned.
NOTE: When reassembling, position the retainer in the same position.
(b) To remove the retainer, hold the valve body face down, and press in on the valve sleeve. The retainer will drop out. Slowly relieve spring tension.
