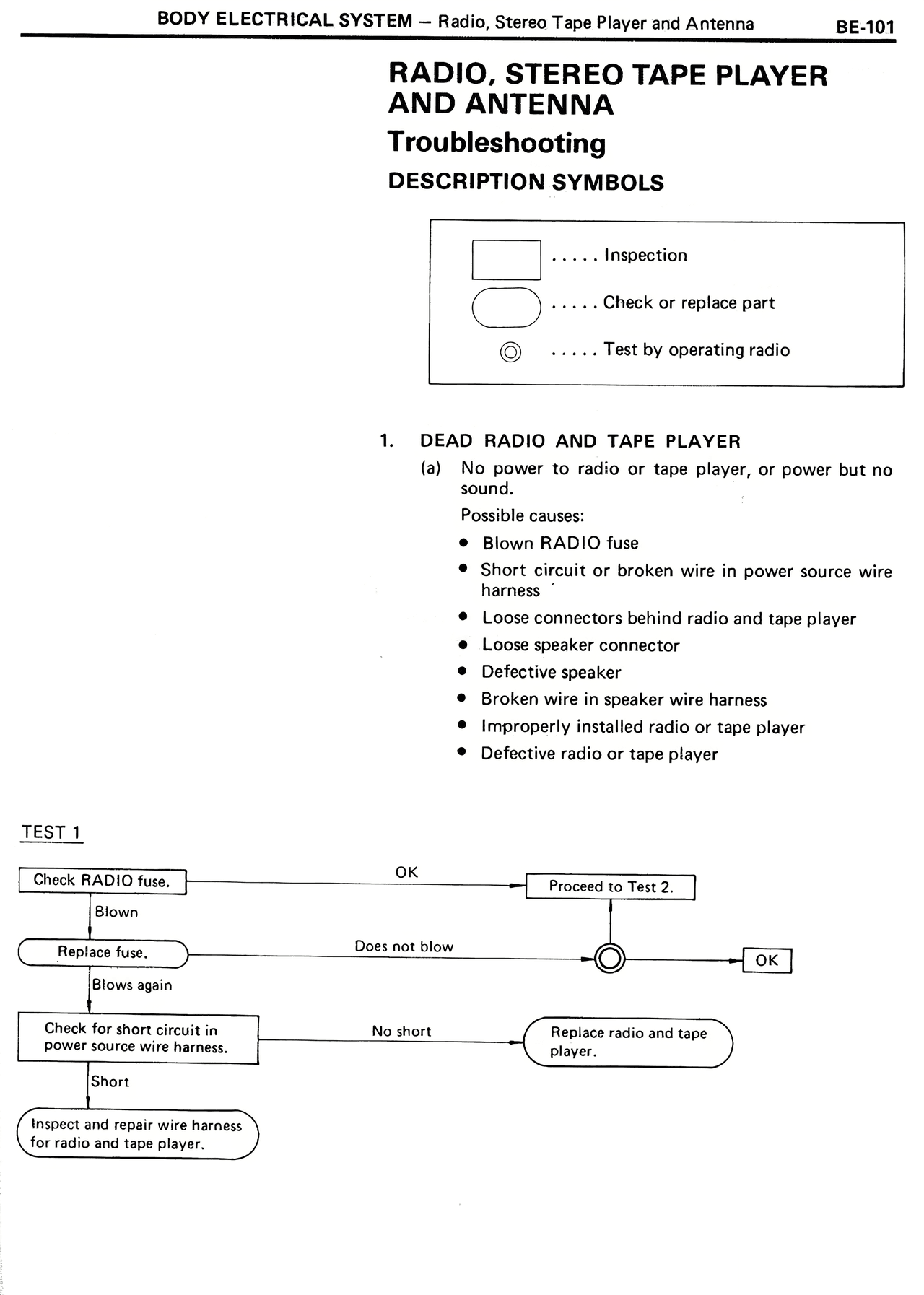

BE/Body Electrical System — Radio, Stereo Tape Player and Antenna Troubleshooting, page 101

BODY ELECTRICAL SYSTEM — Radio, Stereo Tape Player and Antenna
BE-101

RADIO, STEREO TAPE PLAYER
AND ANTENNA
Troubleshooting

DESCRIPTION SYMBOLS

..... Inspection
..... Check or replace part
..... Test by operating radio

1. DEAD RADIO AND TAPE PLAYER
(a) No power to radio or tape player, or power but no sound.

Possible causes:
• Blown RADIO fuse
• Short circuit or broken wire in power source wire harness
• Loose connectors behind radio and tape player
• Loose speaker connector
• Defective speaker
• Broken wire in speaker wire harness
• Improperly installed radio or tape player
• Defective radio or tape player

TEST 1

Check RADIO fuse. → OK → Proceed to Test 2.
↓ Blown
Replace fuse. → Does not blow → OK
↓ Blows again
Check for short circuit in power source wire harness. → No short → Replace radio and tape player.
↓ Short
Inspect and repair wire harness for radio and tape player.
