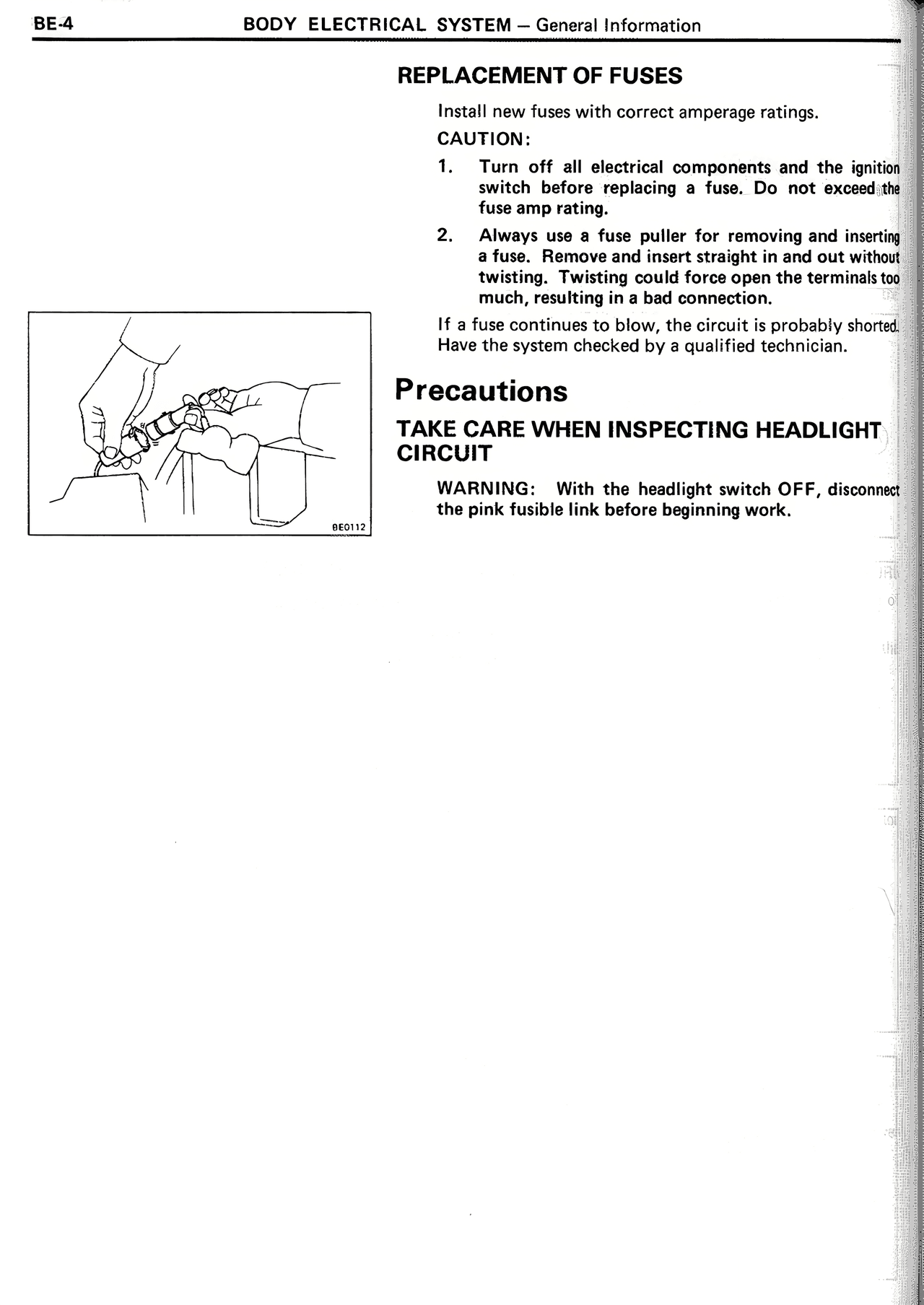

REPLACEMENT OF FUSES — MK2 Supra Body Electrical System, page 4
100%
REPLACEMENT OF FUSES Install new fuses with correct amperage ratings. CAUTION: 1. Turn off all electrical components and the ignition switch before replacing a fuse. Do not exceed the fuse amp rating. 2. Always use a fuse puller for removing and inserting a fuse. Remove and insert straight in and out without twisting. Twisting could force open the terminals too much, resulting in a bad connection. If a fuse continues to blow, the circuit is probably shorted. Have the system checked by a qualified technician. Precautions TAKE CARE WHEN INSPECTING HEADLIGHT CIRCUIT WARNING: With the headlight switch OFF, disconnect the pink fusible link before beginning work.
