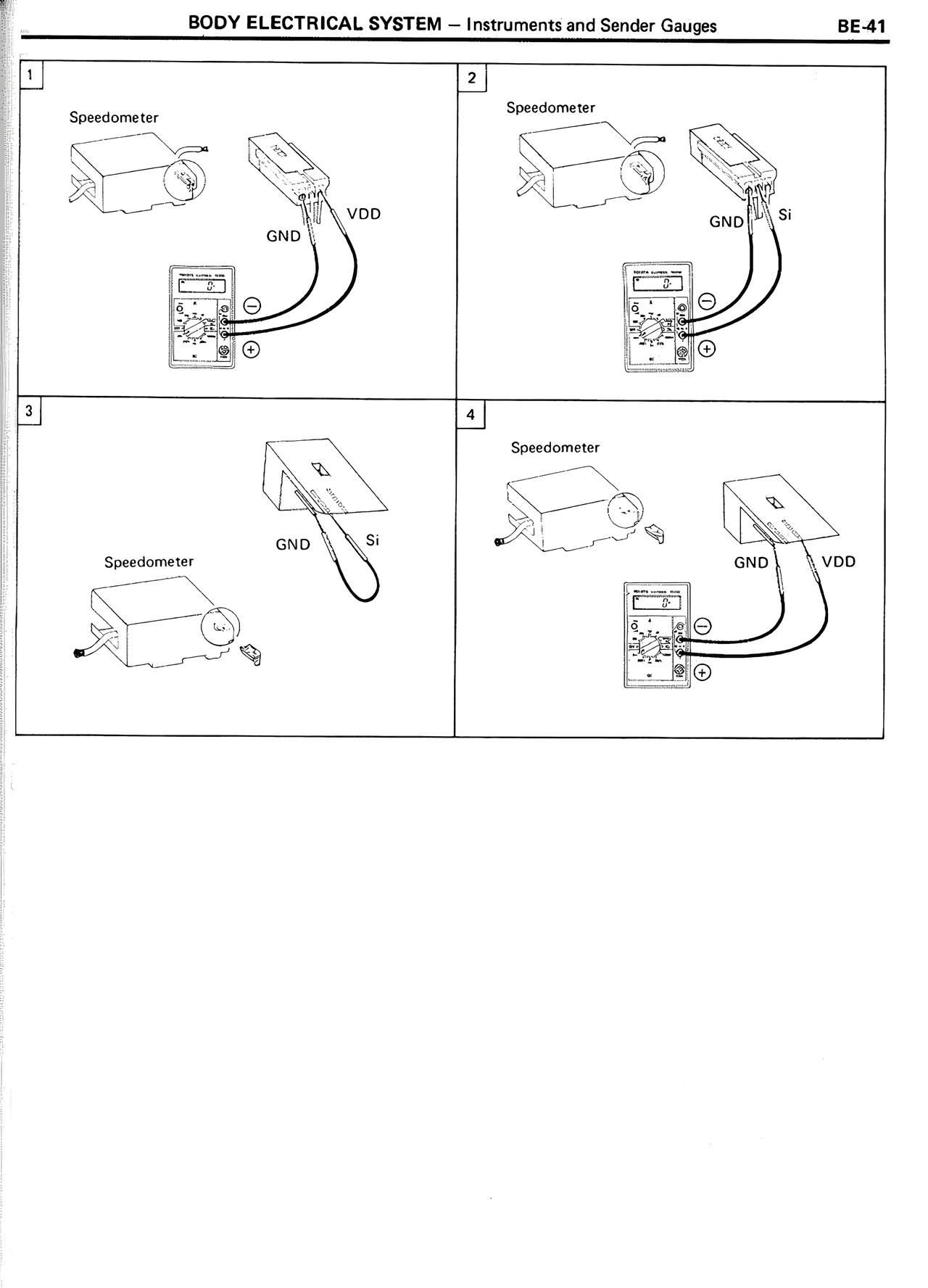

BODY ELECTRICAL SYSTEM — Instruments and Sender Gauges 1 Speedometer GND VDD 2 Speedometer GND Si 3 Speedometer GND Si 4 Speedometer GND VDD
