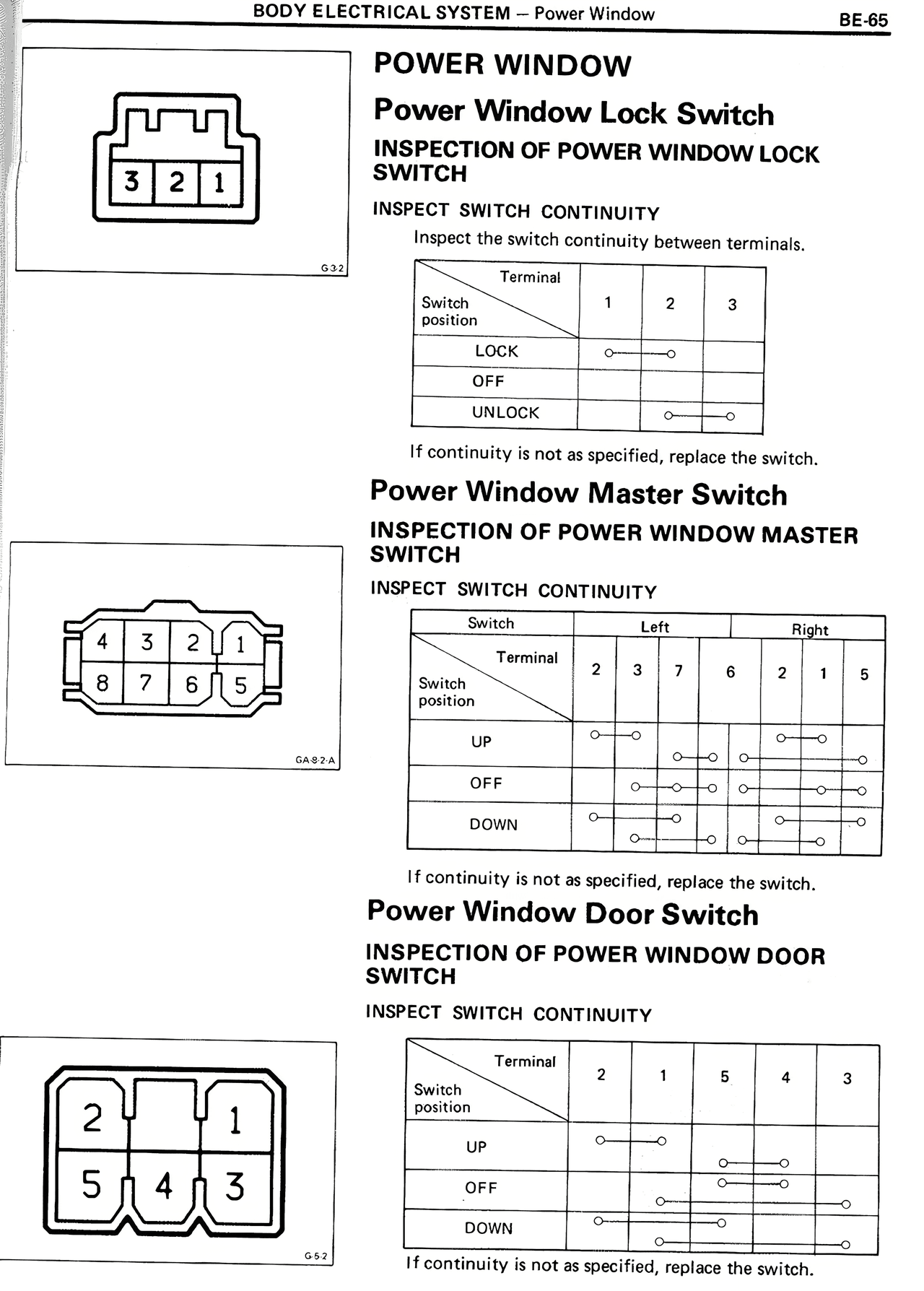

POWER WINDOW
Power Window Lock Switsh
INSPECTION OF POWER WINDOW LOCK
SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
Switch
position | Terminal | 1 | 2 | 3
LOCK | o——o
OFF |
UNLOCK | o——o
If continuity is not as specified, replace the switch.
Power Window Master Switch
INSPECTION OF POWER WINDOW MASTER
SWITCH
INSPECT SWITCH CONTINUITY
Switch | Left | Right
Terminal | 2 | 3 | 7 | 6 | 2 | 1 | 5
Switch
position
UP | o——o | | o——o
| | o——o | o | | o——o
OFF | o——o | o | | o——o
| | o——o | o | | o——o
DOWN | o——o | | o——o
| | o——o | o | | o——o
If continuity is not as specified, replace the switch.
Power Window Door Switch
INSPECTION OF POWER WINDOW DOOR
SWITCH
INSPECT SWITCH CONTINUITY
Switch | Terminal | 2 | 1 | 5 | 4 | 3
position
UP | o——o
| | o——o
OFF | o——o
| | o——o
DOWN | o——o
| | o——o
If continuity is not as specified, replace the switch.
