BODY ELECTRICAL SYSTEM — Location of Switches and Relays     BE-7

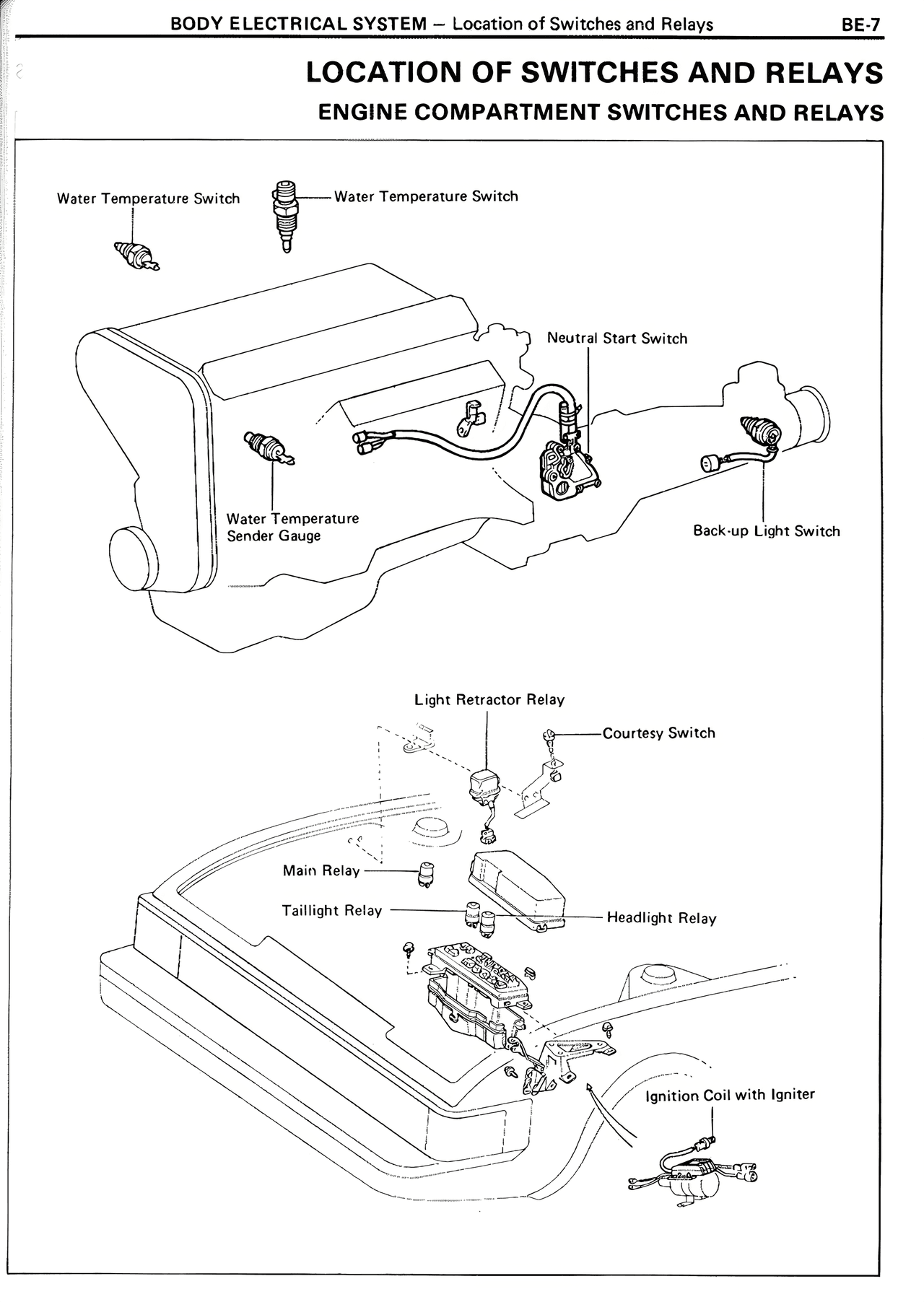

LOCATION OF SWITCHES AND RELAYS
ENGINE COMPARTMENT SWITCHES AND RELAYS

Water Temperature Switch

Water Temperature Switch

Neutral Start Switch

Water Temperature
Sender Gauge

Back-up Light Switch

Light Retractor Relay

Courtesy Switch

Main Relay

Taillight Relay

Headlight Relay

Ignition Coil with Igniter
