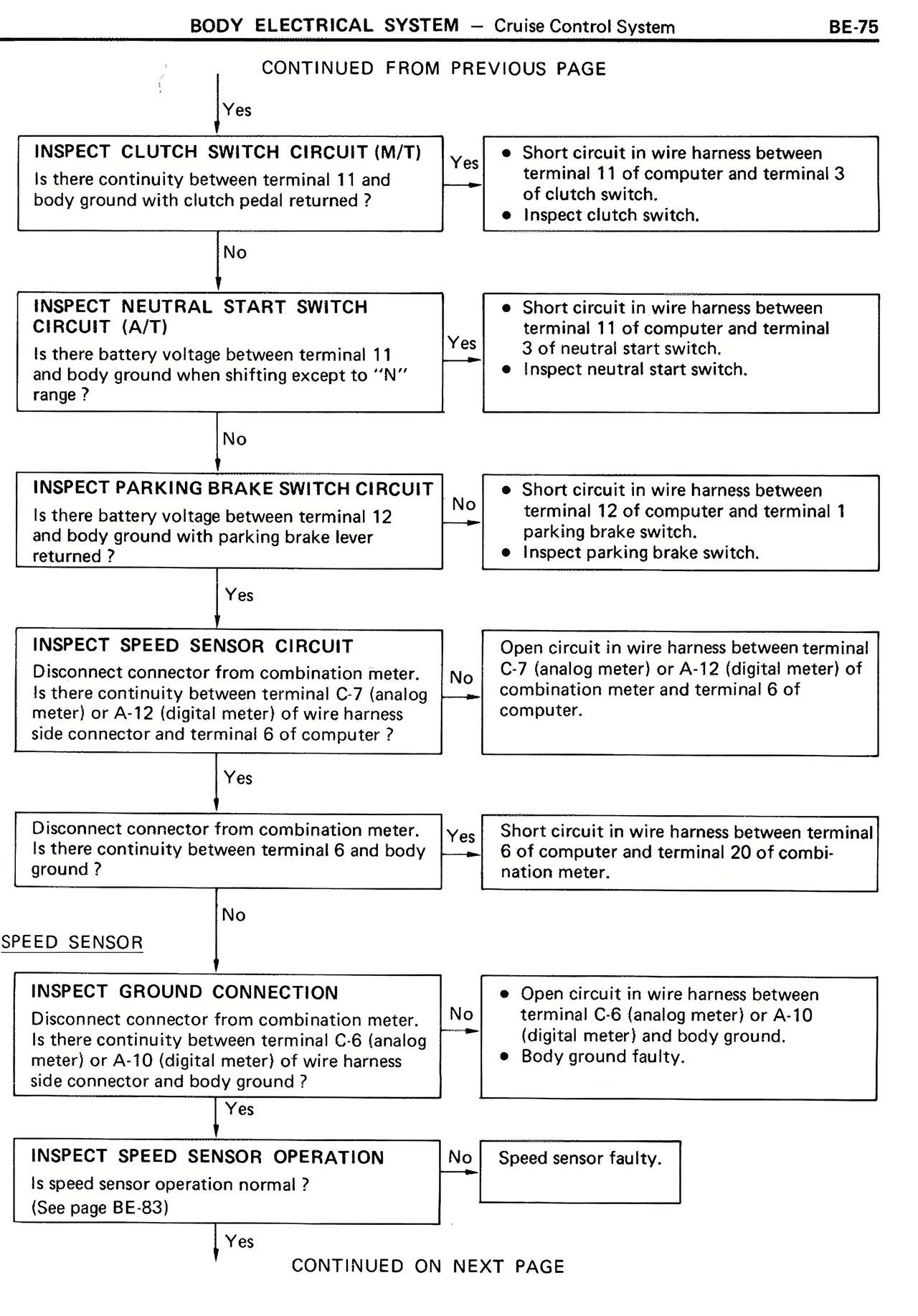

CONTINUED FROM PREVIOUS PAGE
Yes
INSPECT CLUTCH SWITCH CIRCUIT (M/T)
Is there continuity between terminal 11 and body ground with clutch pedal returned?
Yes → • Short circuit in wire harness between terminal 11 of computer and terminal 3 of clutch switch.
• Inspect clutch switch.
No ↓
INSPECT NEUTRAL START SWITCH CIRCUIT (A/T)
Is there battery voltage between terminal 11 and body ground when shifting except to "N" range?
Yes → • Short circuit in wire harness between terminal 11 of computer and terminal 3 of neutral start switch.
• Inspect neutral start switch.
No ↓
INSPECT PARKING BRAKE SWITCH CIRCUIT
Is there battery voltage between terminal 12 and body ground with parking brake lever returned?
No → • Short circuit in wire harness between terminal 12 of computer and terminal 1 parking brake switch.
• Inspect parking brake switch.
Yes ↓
INSPECT SPEED SENSOR CIRCUIT
Disconnect connector from combination meter. Is there continuity between terminal C-7 (analog meter) or A-12 (digital meter) of wire harness side connector and terminal 6 of computer?
No → Open circuit in wire harness between terminal C-7 (analog meter) or A-12 (digital meter) and combination meter and terminal 6 of computer.
Yes ↓
Disconnect connector from combination meter. Is there continuity between terminal 6 and body ground?
Yes → Short circuit in wire harness between terminal 6 of computer and terminal 20 of combination meter.
No ↓
SPEED SENSOR
INSPECT GROUND CONNECTION
Disconnect connector from combination meter. Is there continuity between terminal C-6 (analog meter) or A-10 (digital meter) of wire harness side connector and body ground?
No → • Open circuit in wire harness between terminal C-6 (analog meter) or A-10 (digital meter) and body ground.
• Body ground faulty.
Yes ↓
INSPECT SPEED SENSOR OPERATION
Is speed sensor operation normal?
(See page BE-83)
No → Speed sensor faulty.
Yes ↓
CONTINUED ON NEXT PAGE
