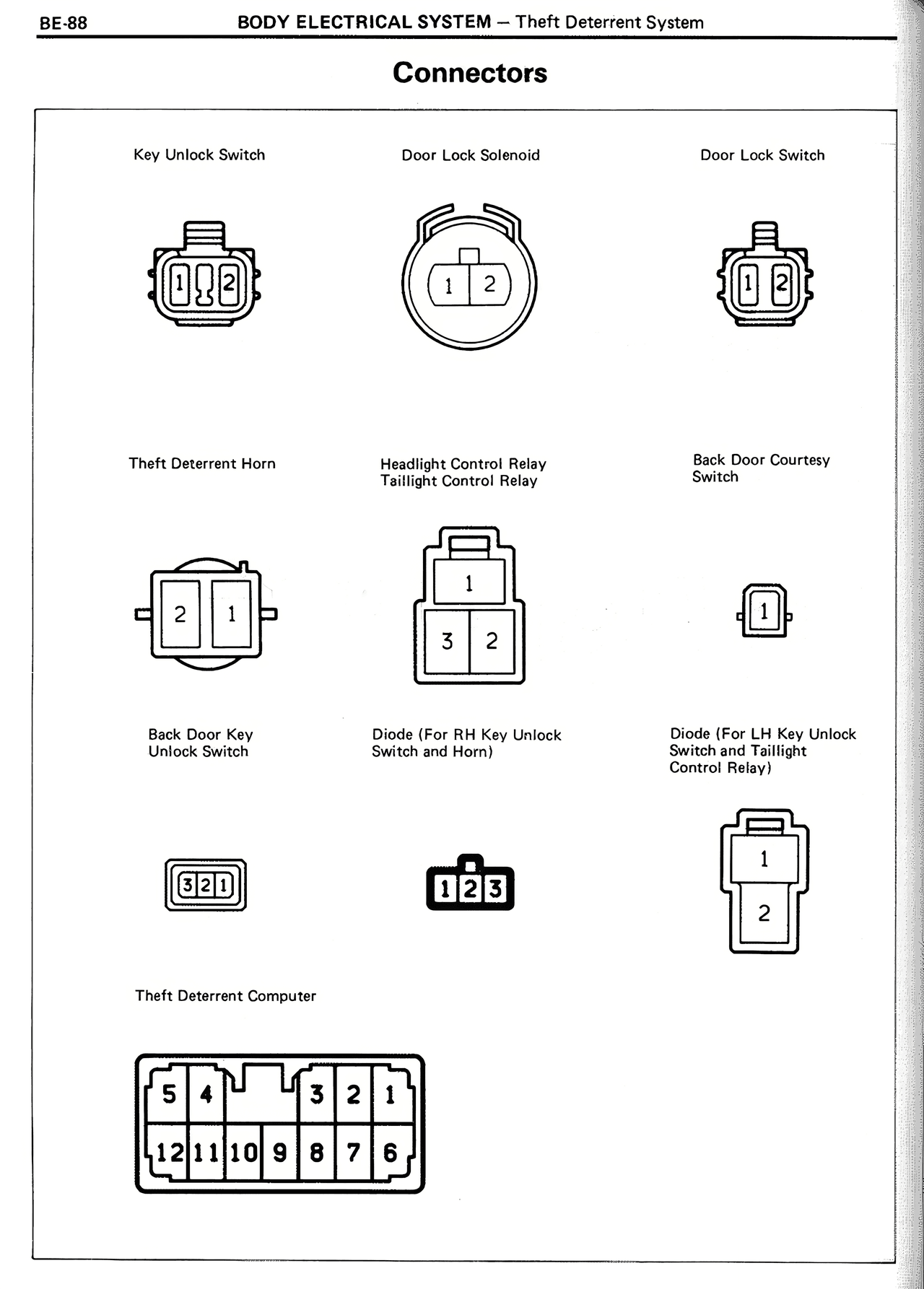

BE-88 BODY ELECTRICAL SYSTEM — Theft Deterrent System Connectors Key Unlock Switch Door Lock Solenoid Door Lock Switch Theft Deterrent Horn Headlight Control Relay Taillight Control Relay Back Door Courtesy Switch Back Door Key Unlock Switch Diode (For RH Key Unlock Switch and Horn) Diode (For LH Key Unlock Switch and Taillight Control Relay) Theft Deterrent Computer 5 4 3 2 1 12 11 10 9 8 7 6
