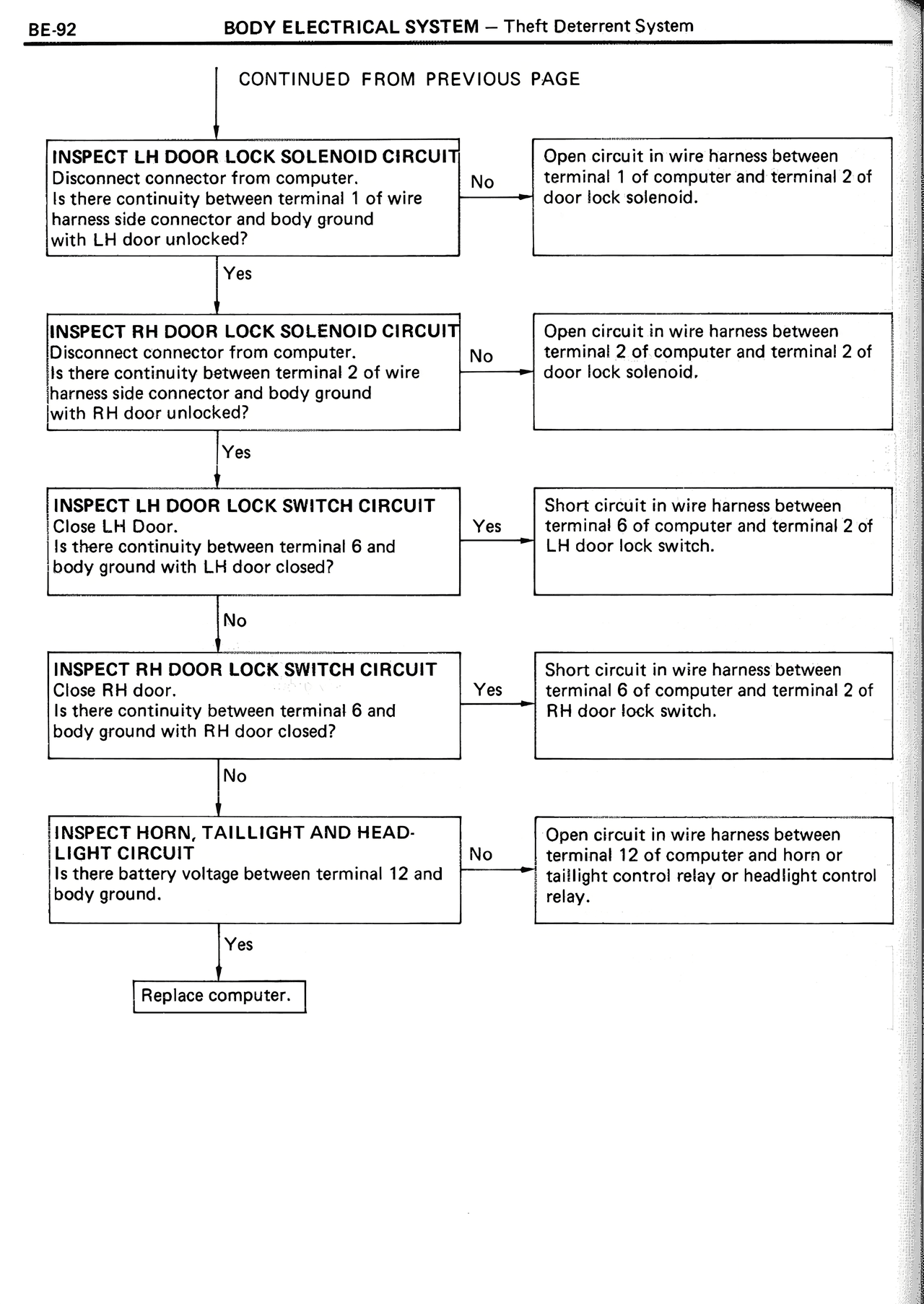

CONTINUED FROM PREVIOUS PAGE
INSPECT LH DOOR LOCK SOLENOID CIRCUIT
Disconnect connector from computer.
Is there continuity between terminal 1 of wire harness side connector and body ground with LH door unlocked?
No → Open circuit in wire harness between terminal 1 of computer and terminal 2 of door lock solenoid.
Yes ↓
INSPECT RH DOOR LOCK SOLENOID CIRCUIT
Disconnect connector from computer.
Is there continuity between terminal 2 of wire harness side connector and body ground with RH door unlocked?
No → Open circuit in wire harness between terminal 2 of computer and terminal 2 of door lock solenoid.
Yes ↓
INSPECT LH DOOR LOCK SWITCH CIRCUIT
Close LH Door.
Is there continuity between terminal 6 and body ground with LH door closed?
Yes → Short circuit in wire harness between terminal 6 of computer and terminal 2 of LH door lock switch.
No ↓
INSPECT RH DOOR LOCK SWITCH CIRCUIT
Close RH door.
Is there continuity between terminal 6 and body ground with RH door closed?
Yes → Short circuit in wire harness between terminal 6 of computer and terminal 2 of RH door lock switch.
No ↓
INSPECT HORN, TAILLIGHT AND HEAD-LIGHT CIRCUIT
Is there battery voltage between terminal 12 and body ground.
No → Open circuit in wire harness between terminal 12 of computer and horn or taillight control relay or headlight control relay.
Yes ↓
Replace computer.
