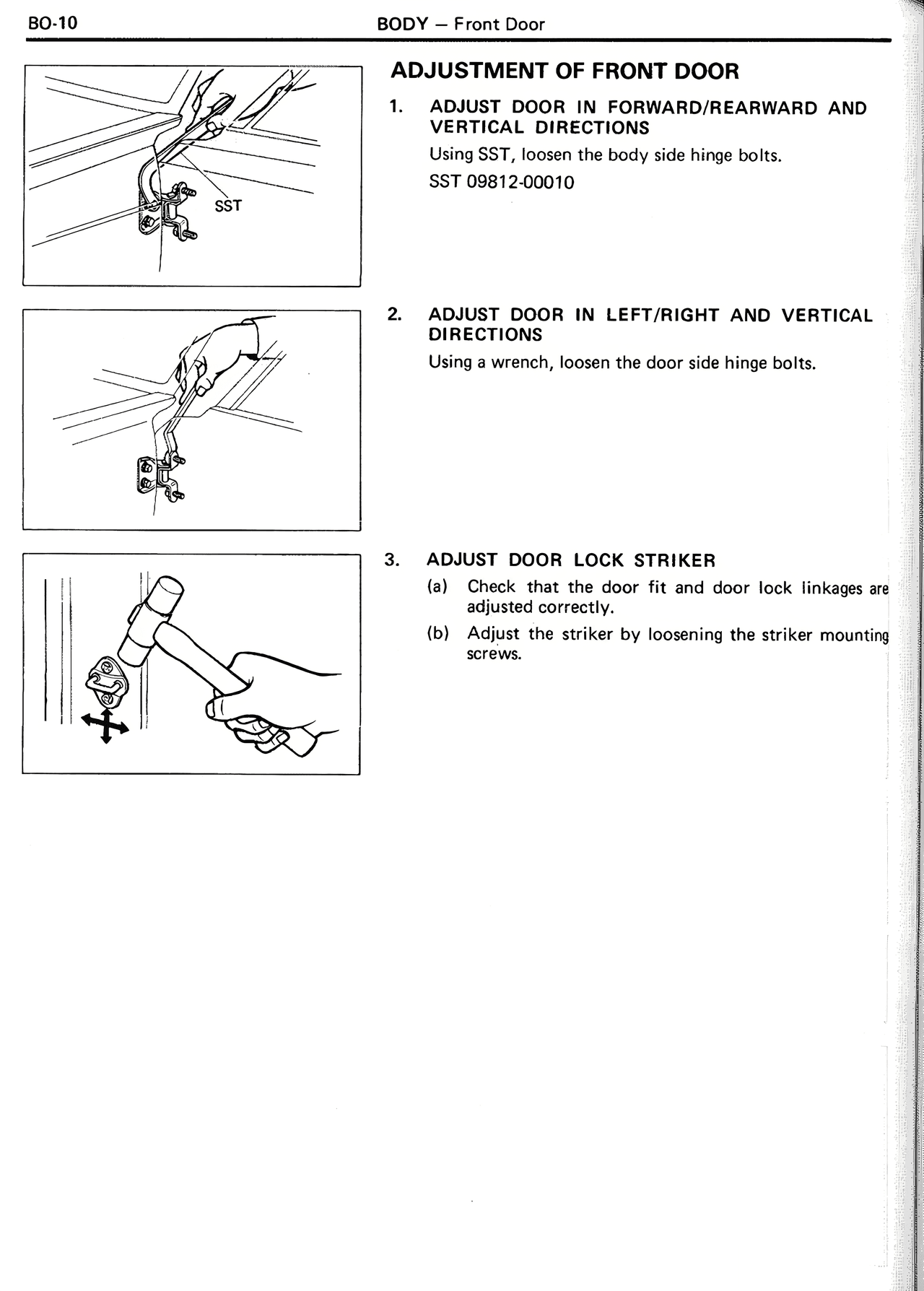

ADJUSTMENT OF FRONT DOOR — MK2 Supra Body, page 10
100%
ADJUSTMENT OF FRONT DOOR 1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS Using SST, loosen the body side hinge bolts. SST 09812-00010 2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS Using a wrench, loosen the door side hinge bolts. 3. ADJUST DOOR LOCK STRIKER (a) Check that the door fit and door lock linkages are adjusted correctly. (b) Adjust the striker by loosening the striker mounting screws.
