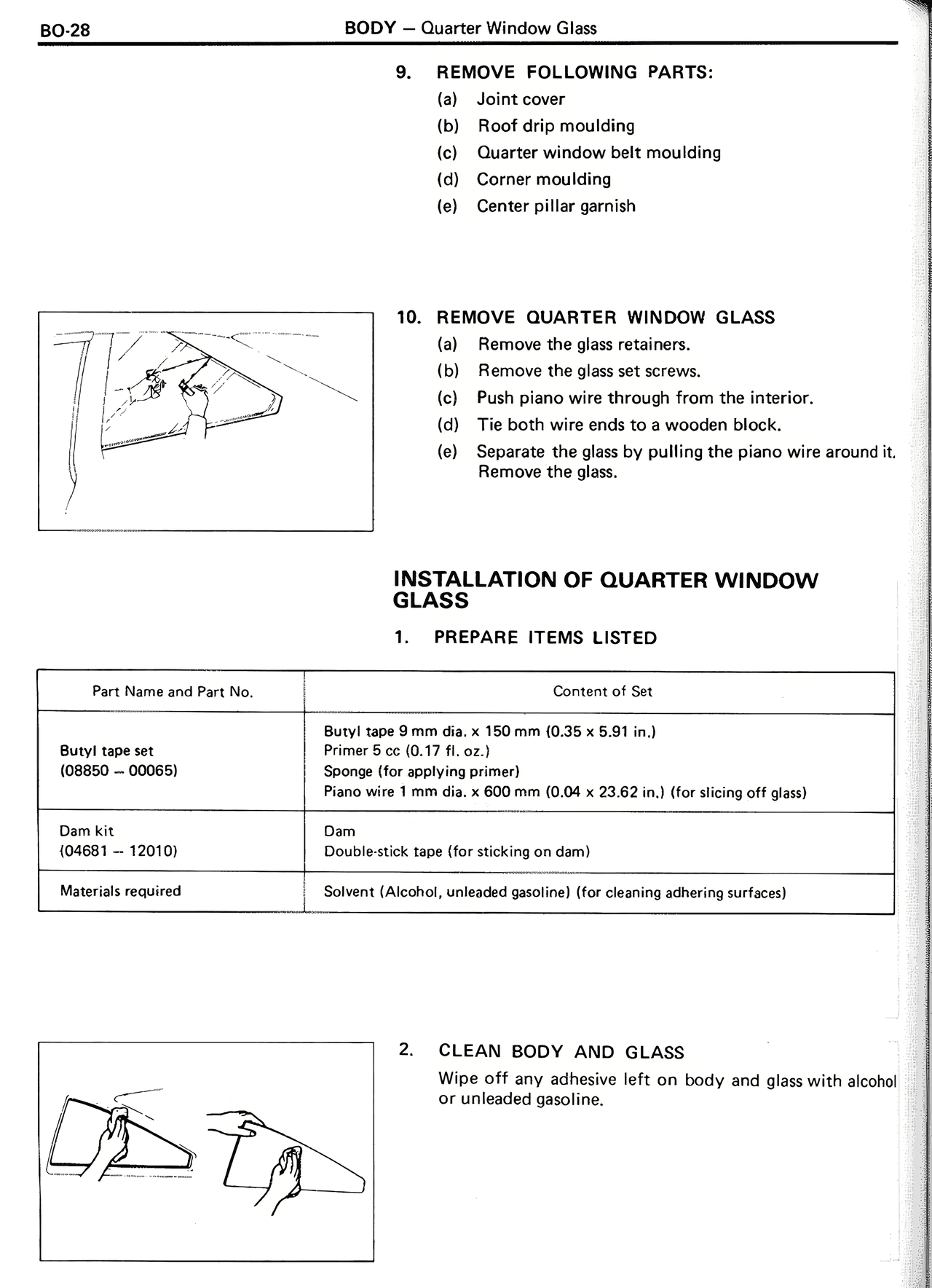

9. REMOVE FOLLOWING PARTS:
(a) Joint cover
(b) Roof drip moulding
(c) Quarter window belt moulding
(d) Corner moulding
(e) Center pillar garnish
10. REMOVE QUARTER WINDOW GLASS
(a) Remove the glass retainers.
(b) Remove the glass set screws.
(c) Push piano wire through from the interior.
(d) Tie both wire ends to a wooden block.
(e) Separate the glass by pulling the piano wire around it. Remove the glass.
INSTALLATION OF QUARTER WINDOW GLASS
1. PREPARE ITEMS LISTED
Part Name and Part No. | Content of Set
Butyl tape set
(08850 – 00065) | Butyl tape 9 mm dia. x 150 mm (0.35 x 5.91 in.)
Primer 5 cc (0.17 fl. oz.)
Sponge (for applying primer)
Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) (for slicing off glass)
Dam kit
(08581 – 12010) | Dam
Double-stick tape (for sticking on dam)
Materials required | Solvent (Alcohol, unleaded gasoline) (for cleaning adhering surfaces)
2. CLEAN BODY AND GLASS
Wipe off any adhesive left on body and glass with alcohol or unleaded gasoline.
