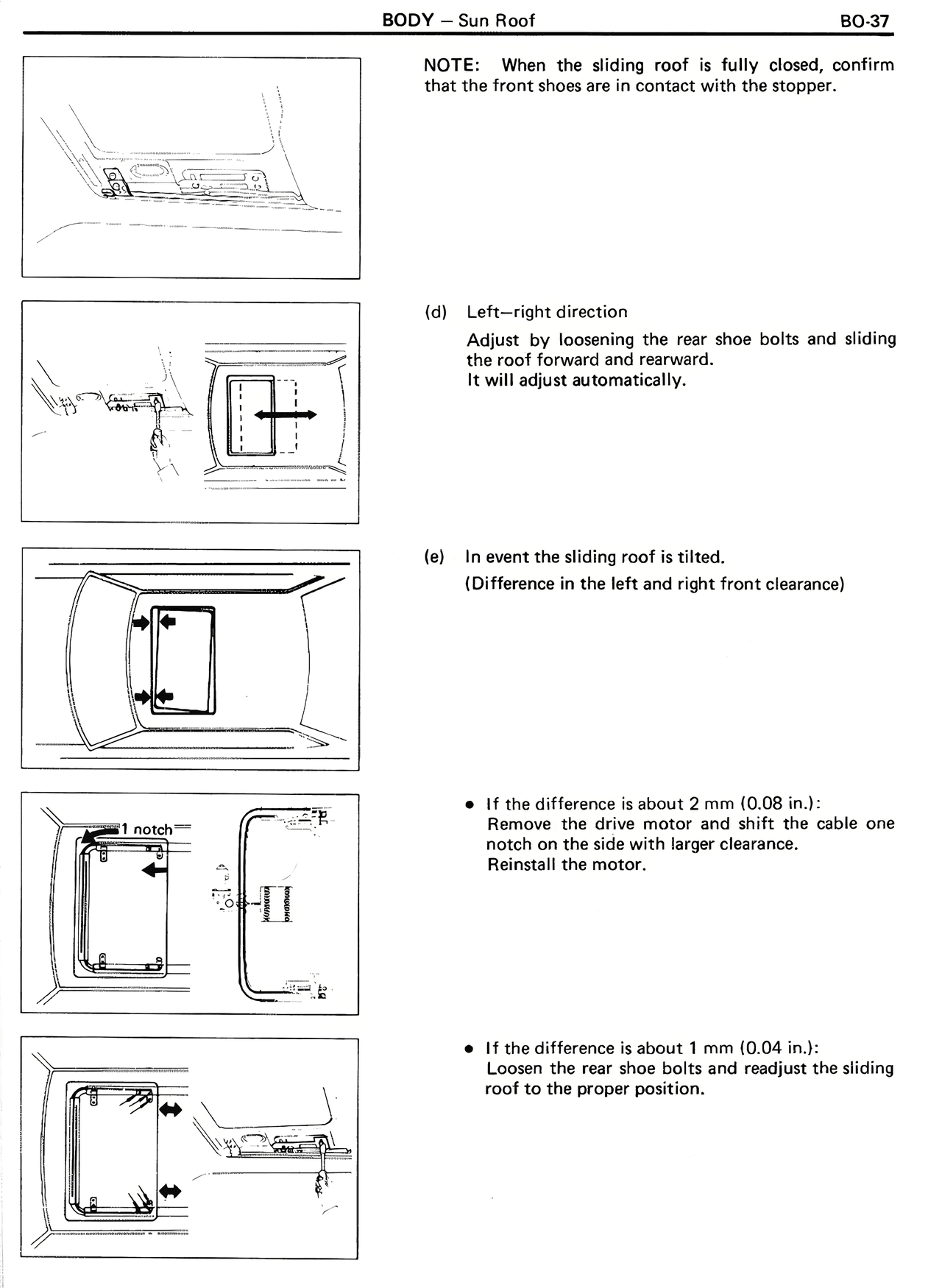

NOTE: When the sliding roof is fully closed, confirm
that the front shoes are in contact with the stopper.
(d) Left—right direction
Adjust by loosening the rear shoe bolts and sliding
the roof forward and rearward.
It will adjust automatically.
(e) In event the sliding roof is tilted.
(Difference in the left and right front clearance)
• If the difference is about 2 mm (0.08 in.):
Remove the drive motor and shift the cable one
notch on the side with larger clearance.
Reinstall the motor.
• If the difference is about 1 mm (0.04 in.):
Loosen the rear shoe bolts and readjust the sliding
roof to the proper position.
