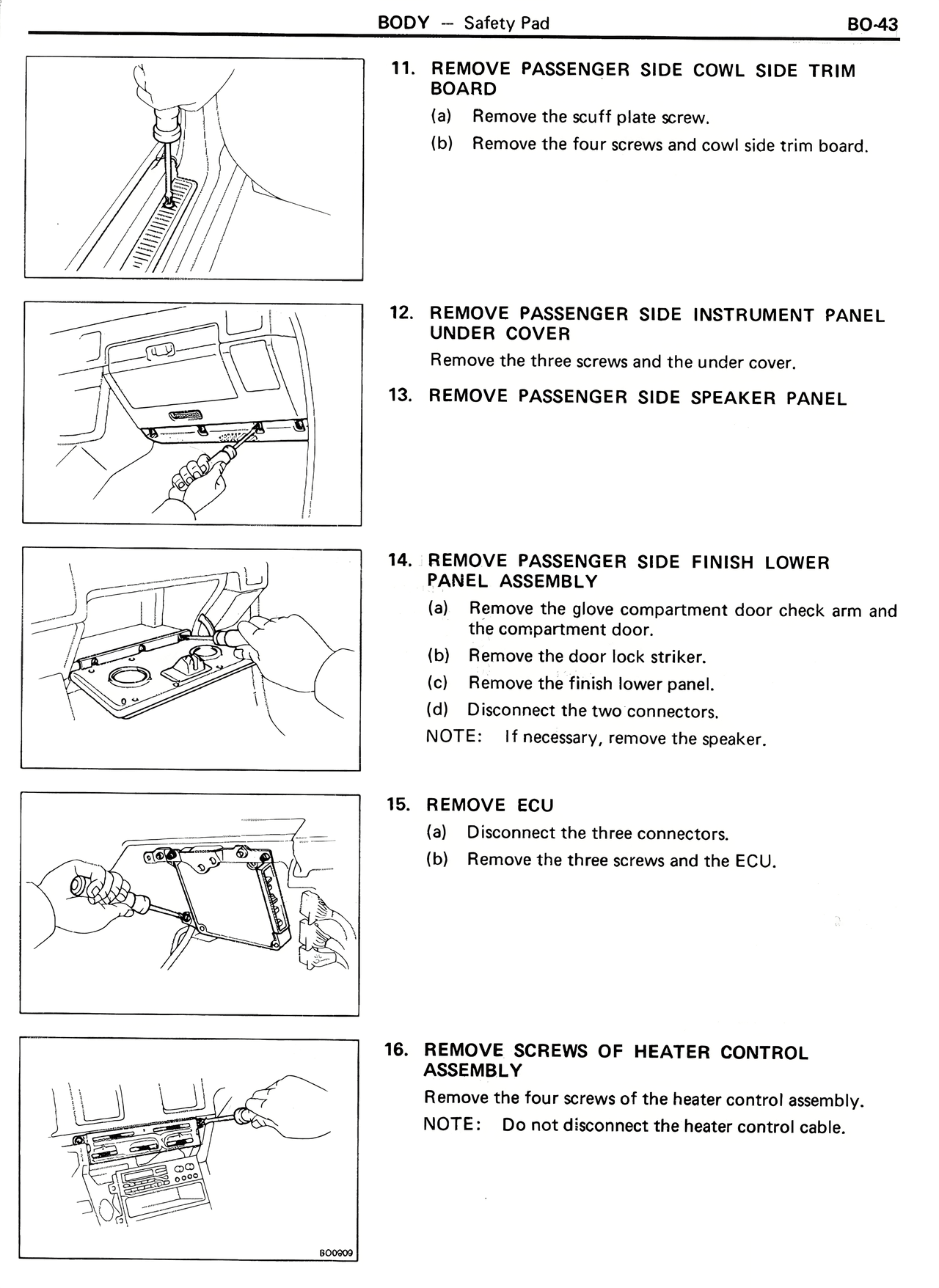

11. REMOVE PASSENGER SIDE COWL SIDE TRIM BOARD
(a) Remove the scuff plate screw.
(b) Remove the four screws and cowl side trim board.
12. REMOVE PASSENGER SIDE INSTRUMENT PANEL UNDER COVER
Remove the three screws and the under cover.
13. REMOVE PASSENGER SIDE SPEAKER PANEL
14. REMOVE PASSENGER SIDE FINISH LOWER PANEL ASSEMBLY
(a) Remove the glove compartment door check arm and the compartment door.
(b) Remove the door lock striker.
(c) Remove the finish lower panel.
(d) Disconnect the two connectors.
NOTE: If necessary, remove the speaker.
15. REMOVE ECU
(a) Disconnect the three connectors.
(b) Remove the three screws and the ECU.
16. REMOVE SCREWS OF HEATER CONTROL ASSEMBLY
Remove the four screws of the heater control assembly.
NOTE: Do not disconnect the heater control cable.
