BODY — Front Seat BO-45

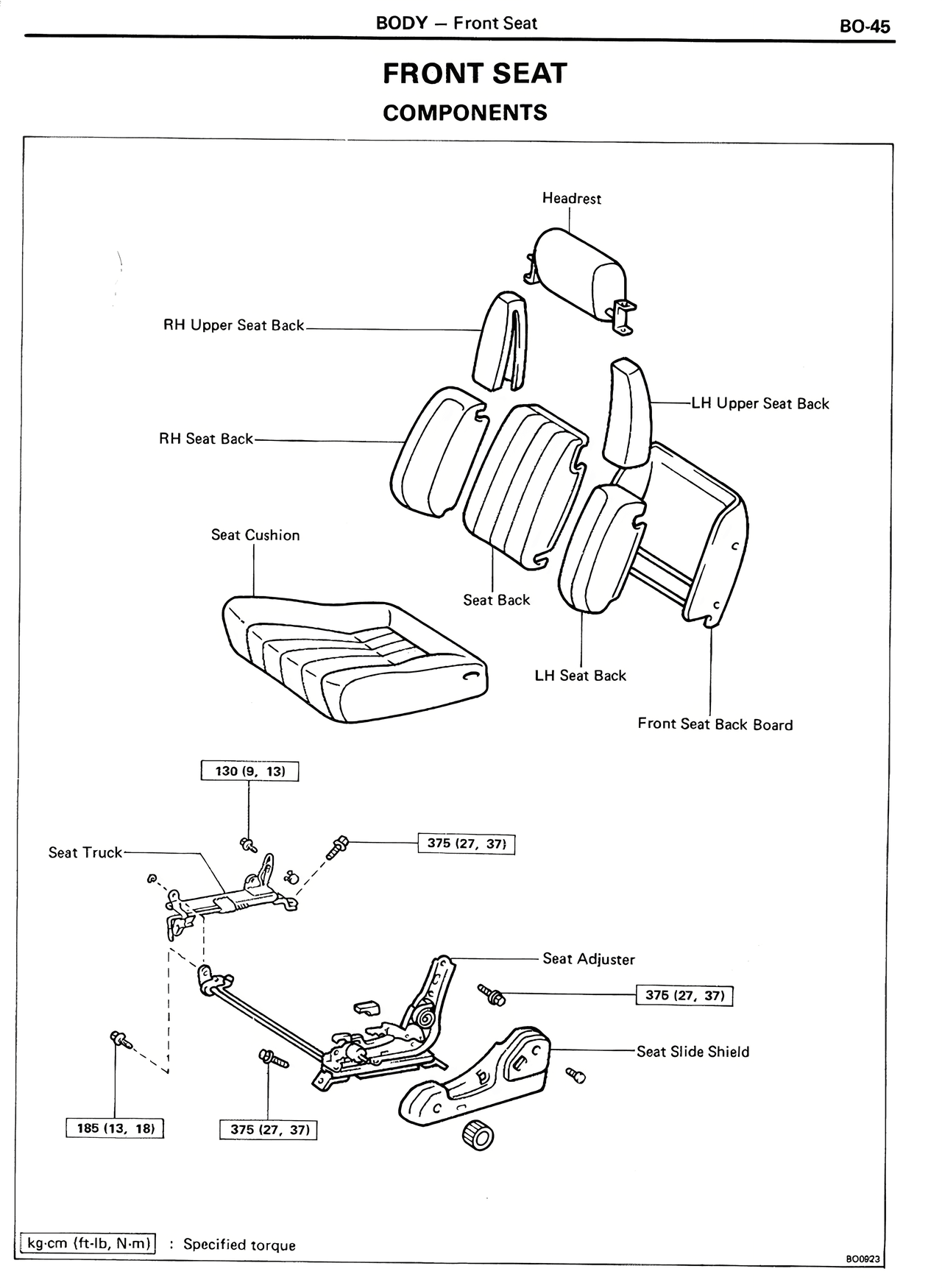

FRONT SEAT
COMPONENTS
Headrest
RH Upper Seat Back
LH Upper Seat Back
RH Seat Back
Seat Cushion
Seat Back
LH Seat Back
Front Seat Back Board
130 [9, 13]
Seat Truck
375 [27, 37]
Seat Adjuster
375 [27, 37]
Seat Slide Shield
185 [13, 18]
375 [27, 37]
kg·cm {ft·lb, N·m} : Specified torque
BO0923
