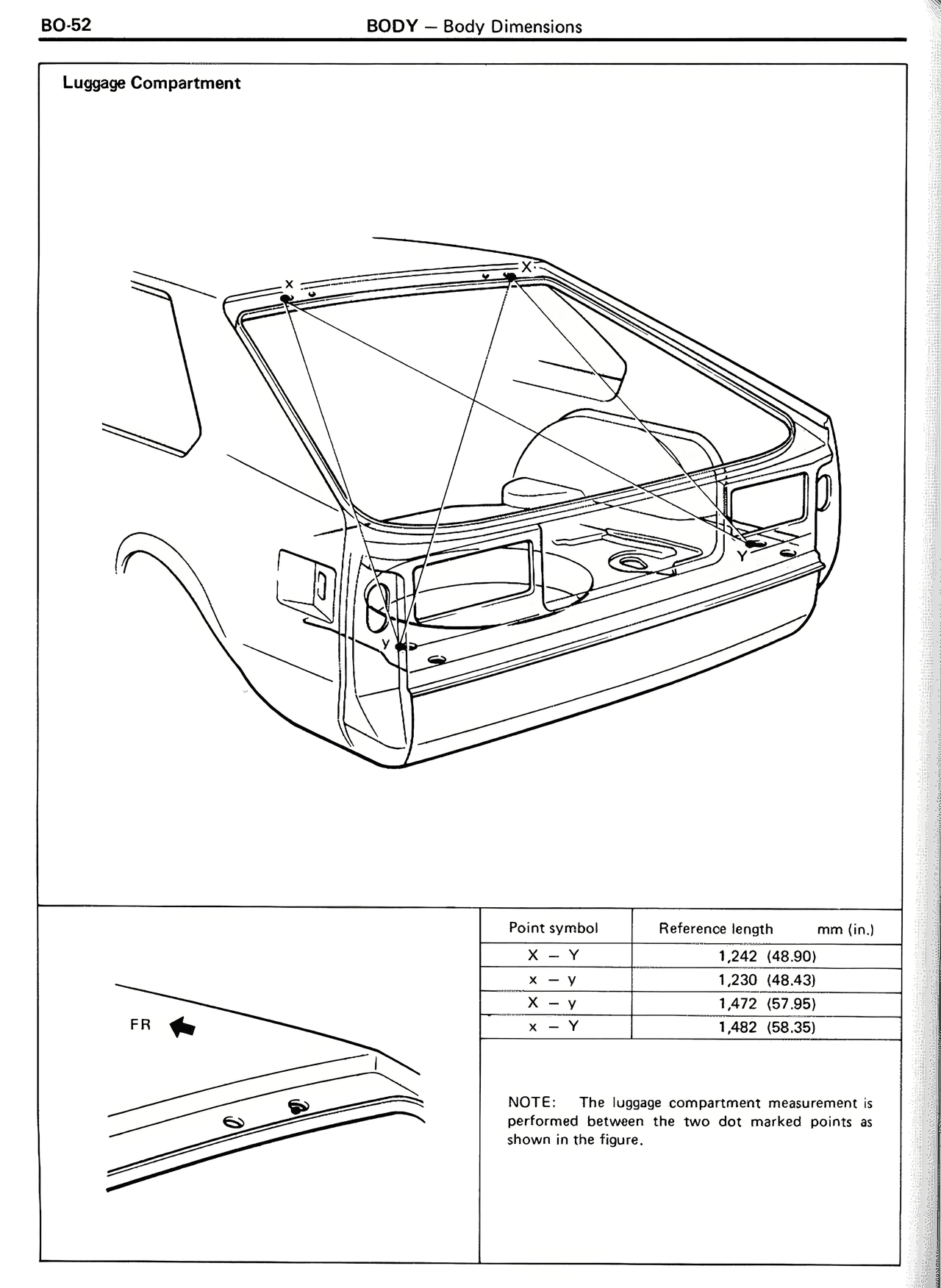

Luggage Compartment FR Point symbol Reference length mm (in.) X — Y 1,242 (48.90) x — y 1,230 (48.43) X — y 1,472 (57.95) x — Y 1,482 (58.35) NOTE: The luggage compartment measurement is performed between the two dot marked points as shown in the figure.
