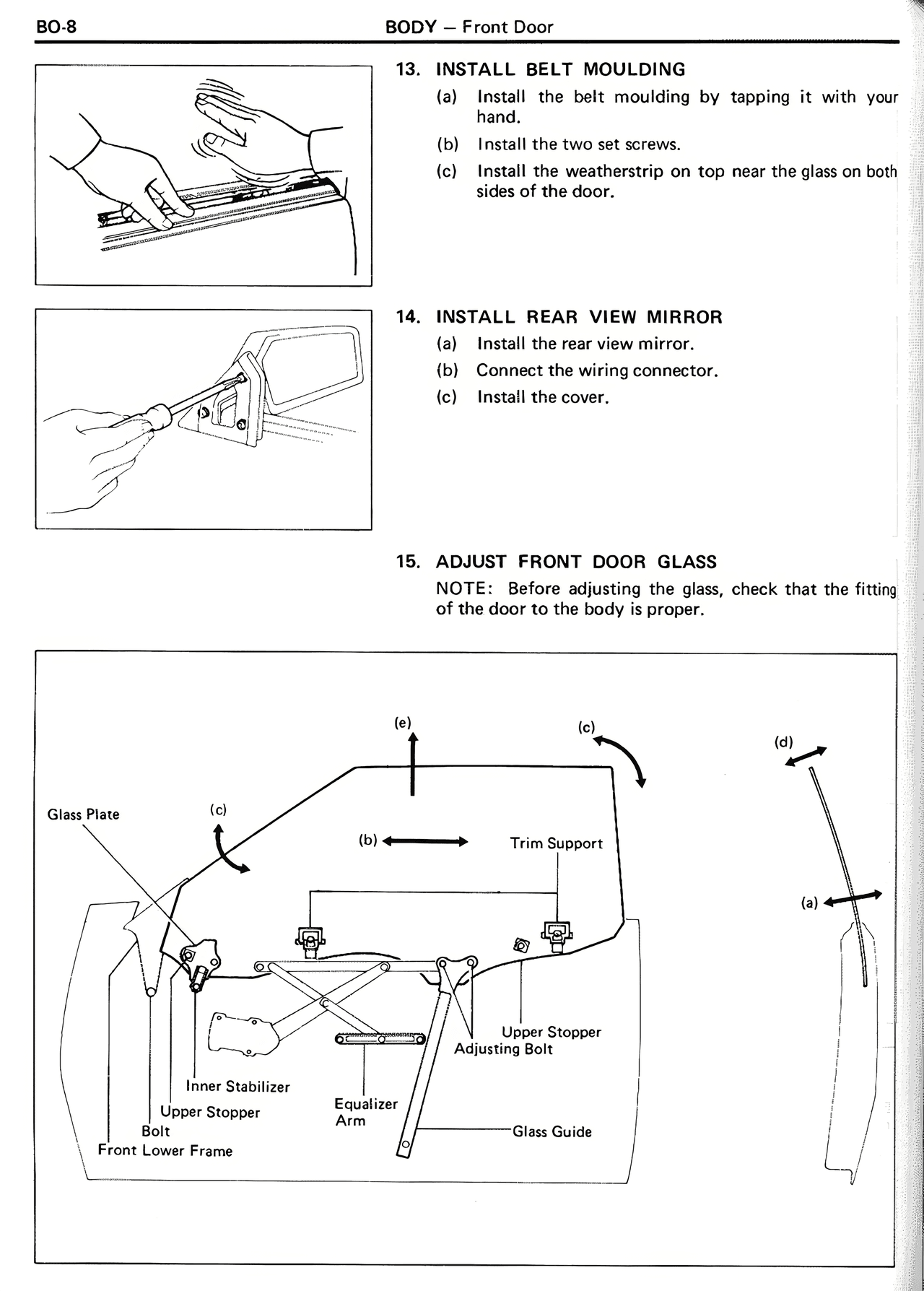

BO-8 BODY — Front Door
13. INSTALL BELT MOULDING
(a) Install the belt moulding by tapping it with your hand.
(b) Install the two set screws.
(c) Install the weatherstrip on top near the glass on both sides of the door.
14. INSTALL REAR VIEW MIRROR
(a) Install the rear view mirror.
(b) Connect the wiring connector.
(c) Install the cover.
15. ADJUST FRONT DOOR GLASS
NOTE: Before adjusting the glass, check that the fitting of the door to the body is proper.
Glass Plate
(a)
(b)
(c)
(d)
(e)
Trim Support
Inner Stabilizer Upper Stopper Bolt
Upper Stopper Adjusting Bolt
Equalizer Arm
Glass Guide
Front Lower Frame
