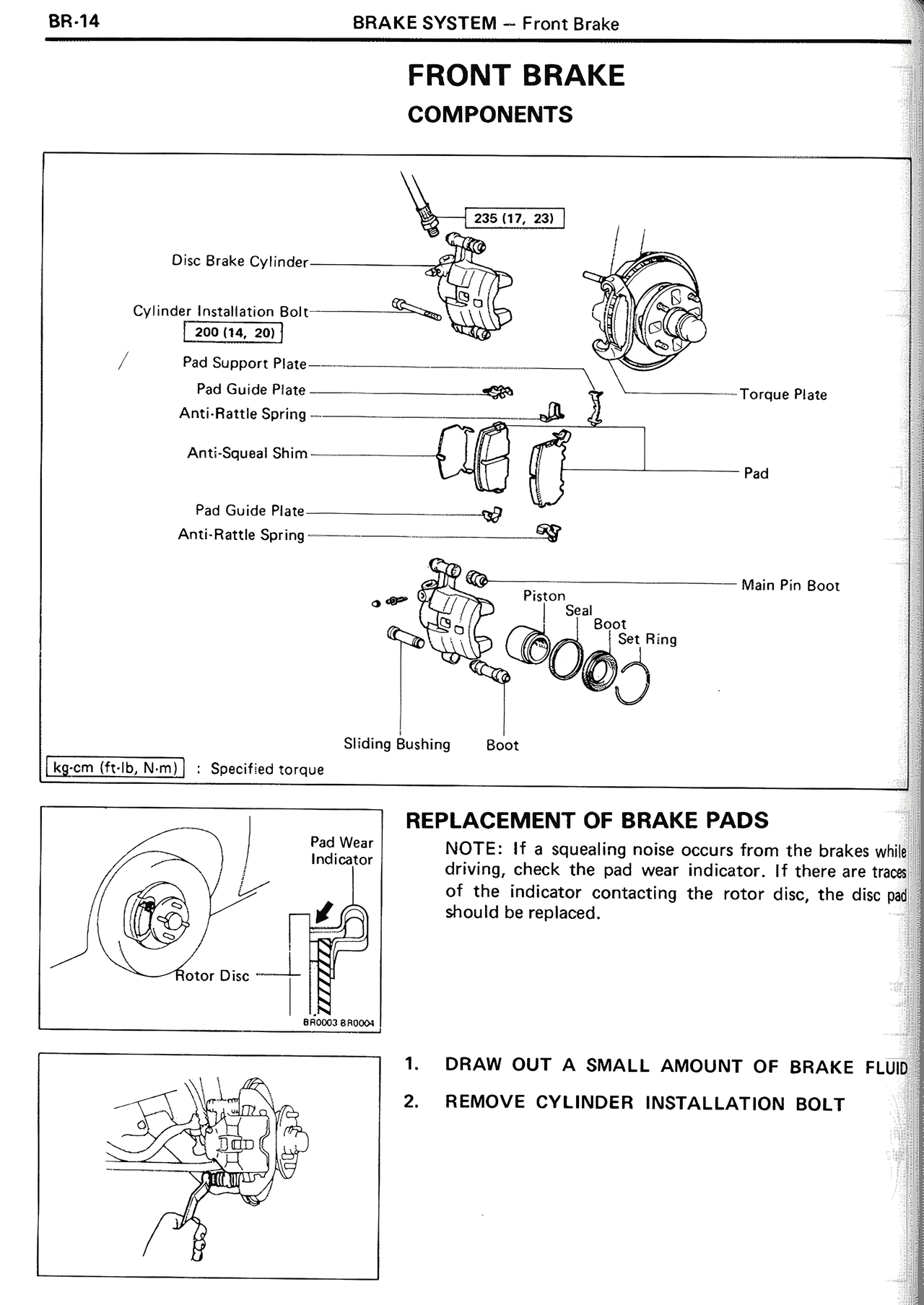

FRONT BRAKE
COMPONENTS
235 [17, 23]
Disc Brake Cylinder
Cylinder Installation Bolt
200 [14, 20]
Pad Support Plate
Pad Guide Plate
Anti-Rattle Spring
Anti-Squeal Shim
Pad Guide Plate
Anti-Rattle Spring
Torque Plate
Pad
Main Pin Boot
Piston
Seal
Boot
Set Ring
Sliding Bushing
Boot
kg·cm [ft·lb, N·m] : Specified torque
REPLACEMENT OF BRAKE PADS
Pad Wear Indicator
Rotor Disc
NOTE: If a squealing noise occurs from the brakes while driving, check the pad wear indicator. If there are traces of the indicator contacting the rotor disc, the disc pad should be replaced.
1. DRAW OUT A SMALL AMOUNT OF BRAKE FLUID
2. REMOVE CYLINDER INSTALLATION BOLT
