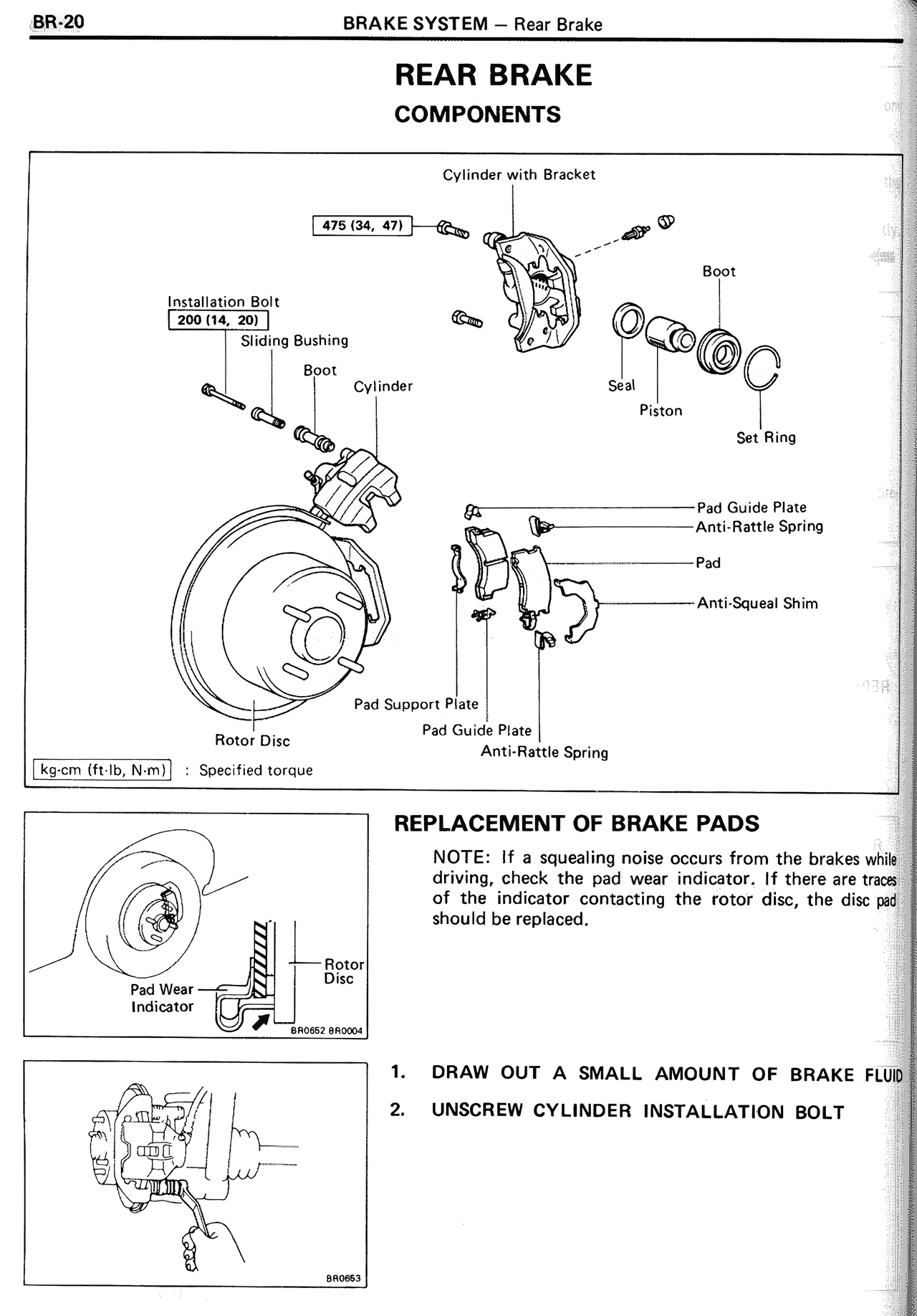

REAR BRAKE
COMPONENTS
Cylinder with Bracket
475 (34, 47)
Boot
Installation Bolt
200 (14, 20)
Sliding Bushing
Boot
Cylinder
Seal
Piston
Set Ring
Pad Guide Plate
Anti-Rattle Spring
Pad
Anti-Squeal Shim
Pad Support Plate
Rotor Disc
Pad Guide Plate
Anti-Rattle Spring
kg.cm (ft.lb, N.m) : Specified torque
REPLACEMENT OF BRAKE PADS
NOTE: If a squealing noise occurs from the brakes while driving, check the rear pad wear indicator. If there are traces of the indicator contacting the rotor disc, the disc pads should be replaced.
Pad Wear Indicator
Rotor Disc
BR0662 BR0063
1. DRAW OUT A SMALL AMOUNT OF BRAKE FLUID
2. UNSCREW CYLINDER INSTALLATION BOLT
BR0063
