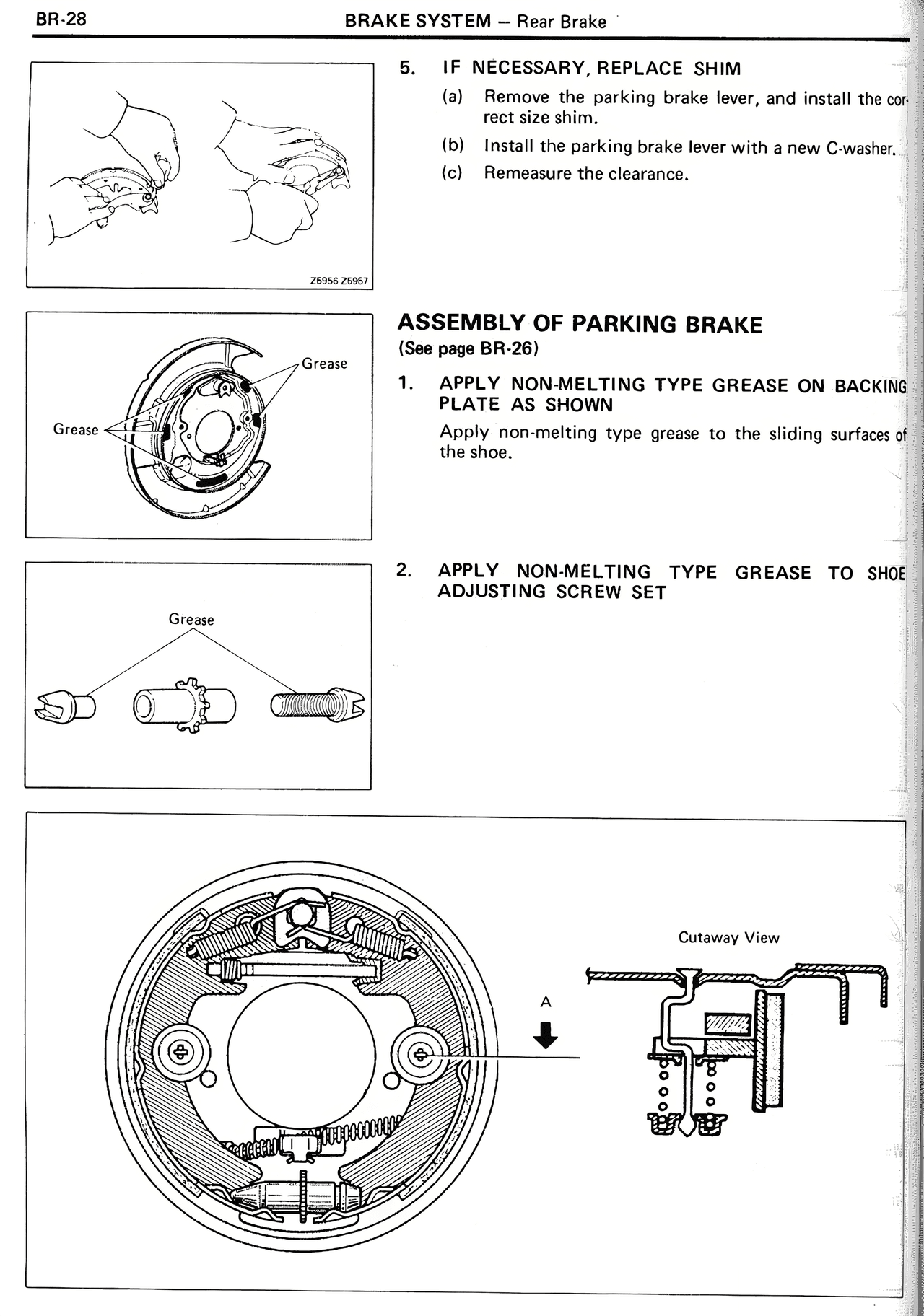

5. IF NECESSARY, REPLACE SHIM (a) Remove the parking brake lever, and install the correct size shim. (b) Install the parking brake lever with a new C-washer. (c) Remeasure the clearance. ASSEMBLY OF PARKING BRAKE (See page BR-26) 1. APPLY NON-MELTING TYPE GREASE ON BACKING PLATE AS SHOWN Apply non-melting type grease to the sliding surfaces of the shoe. 2. APPLY NON-MELTING TYPE GREASE TO SHOE ADJUSTING SCREW SET
