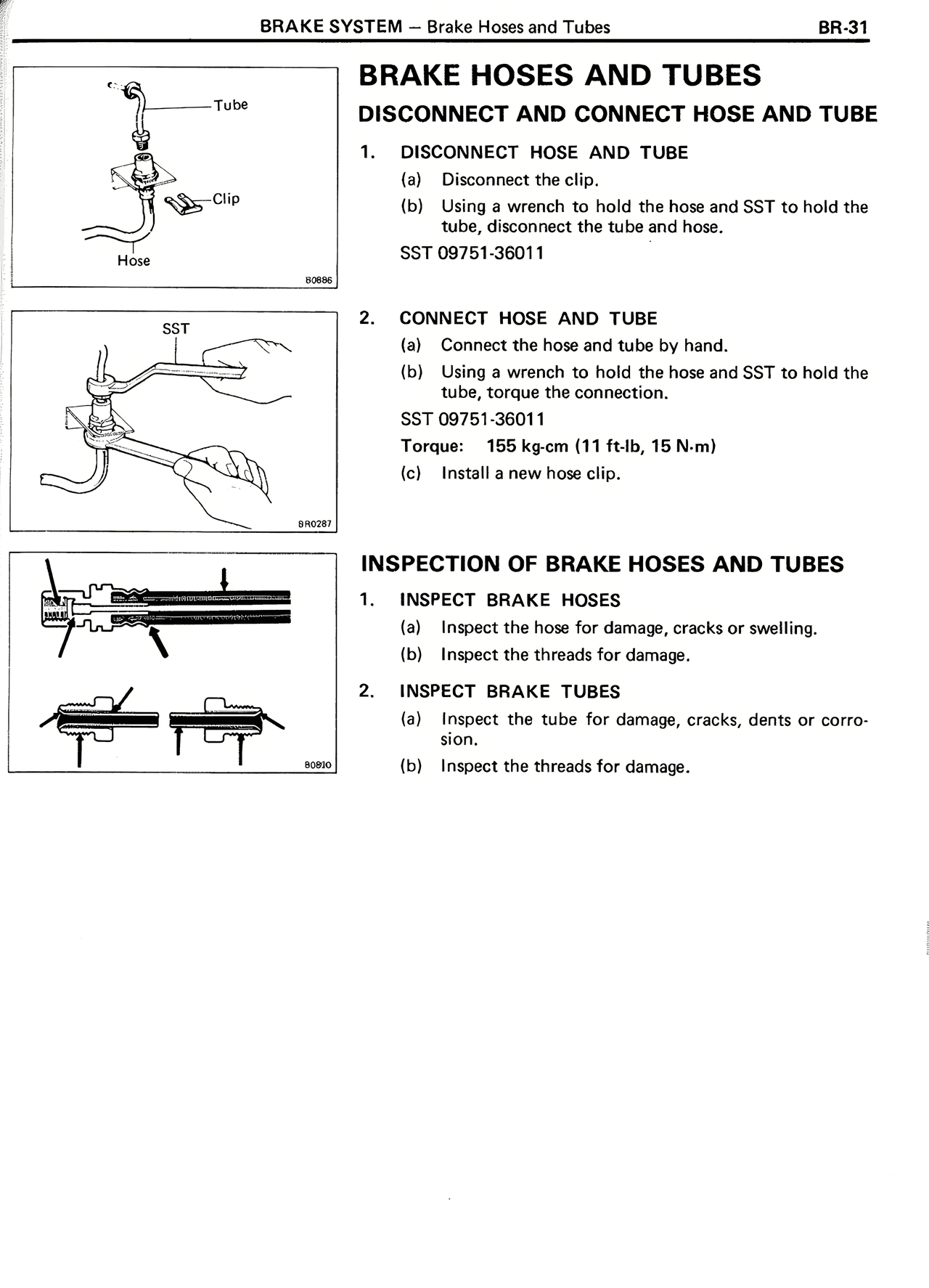

BRAKE HOSES AND TUBES DISCONNECT AND CONNECT HOSE AND TUBE 1. DISCONNECT HOSE AND TUBE (a) Disconnect the clip. (b) Using a wrench to hold the hose and SST to hold the tube, disconnect the tube and hose. SST 09751-36011 2. CONNECT HOSE AND TUBE (a) Connect the hose and tube by hand. (b) Using a wrench to hold the hose and SST to hold the tube, torque the connection. SST 09751-36011 Torque: 155 kg·cm (11 ft·lb, 15 N·m) (c) Install a new hose clip. INSPECTION OF BRAKE HOSES AND TUBES 1. INSPECT BRAKE HOSES (a) Inspect the hose for damage, cracks or swelling. (b) Inspect the threads for damage. 2. INSPECT BRAKE TUBES (a) Inspect the tube for damage, cracks, dents or corrosion. (b) Inspect the threads for damage.
