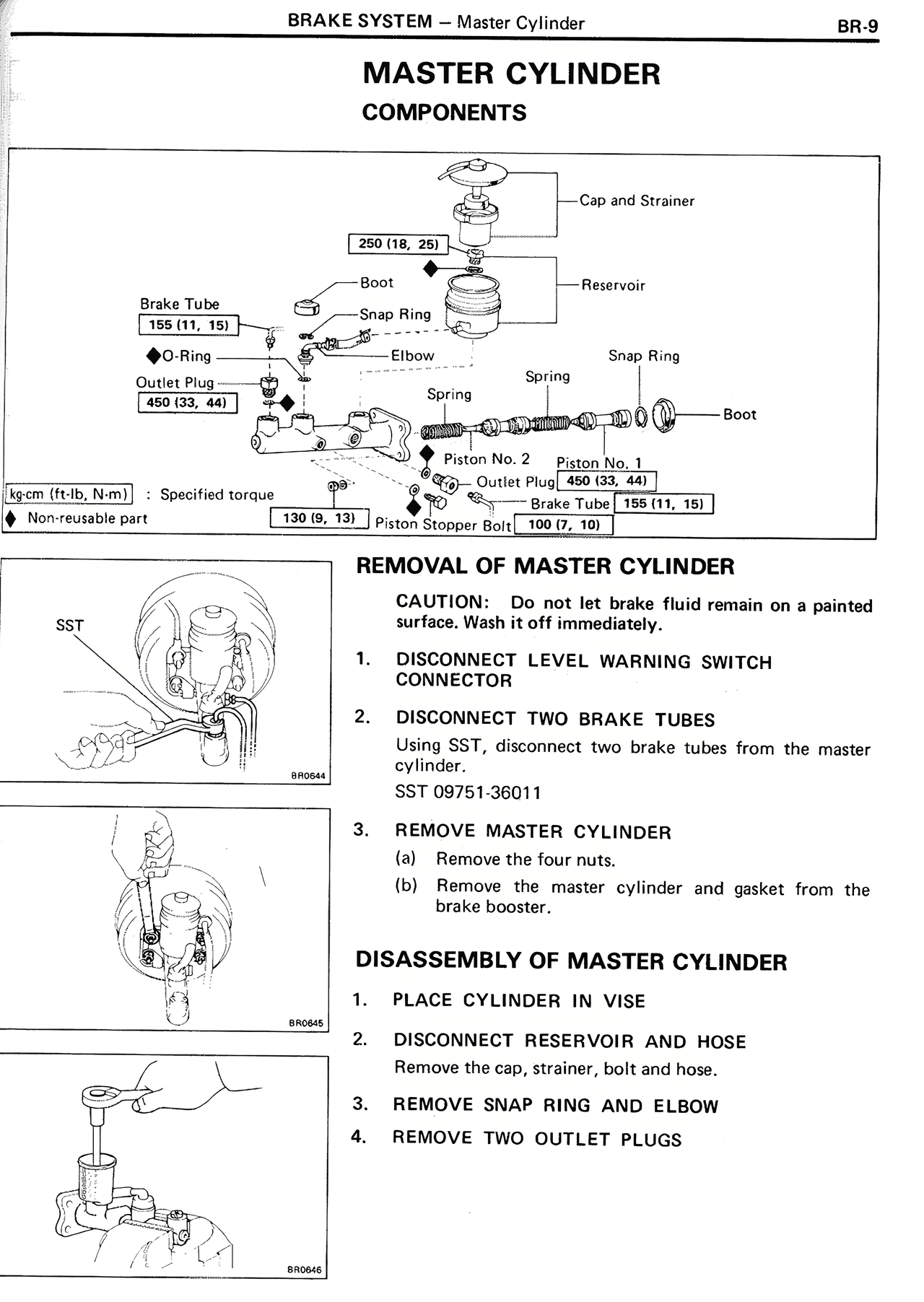

MASTER CYLINDER
COMPONENTS
Cap and Strainer
250 [18, 25]
Boot
Reservoir
Brake Tube
Snap Ring
155 [11, 15]
O Ring
Elbow
Snap Ring
Spring
Outlet Plug
450 [33, 44]
Spring
Boot
Piston No. 2
Piston No. 1
Outlet Plug 450 [33, 44]
Brake Tube 155 [11, 15]
130 [9, 13]
Piston Stopper Bolt
100 [7, 10]
kg·cm [ft·lb, N·m] : Specified torque
♦ : Non-reusable part
REMOVAL OF MASTER CYLINDER
CAUTION: Do not let brake fluid remain on a painted surface. Wash it off immediately.
1. DISCONNECT LEVEL WARNING SWITCH CONNECTOR
2. DISCONNECT TWO BRAKE TUBES
Using SST, disconnect two brake tubes from the master cylinder.
SST 09751-36011
3. REMOVE MASTER CYLINDER
(a) Remove the four nuts.
(b) Remove the master cylinder and gasket from the brake booster.
DISASSEMBLY OF MASTER CYLINDER
1. PLACE CYLINDER IN VISE
2. DISCONNECT RESERVOIR AND HOSE
Remove the cap, strainer, bolt and hose.
3. REMOVE SNAP RING AND ELBOW
4. REMOVE TWO OUTLET PLUGS
SST
BR0644
BR0645
BR0646
