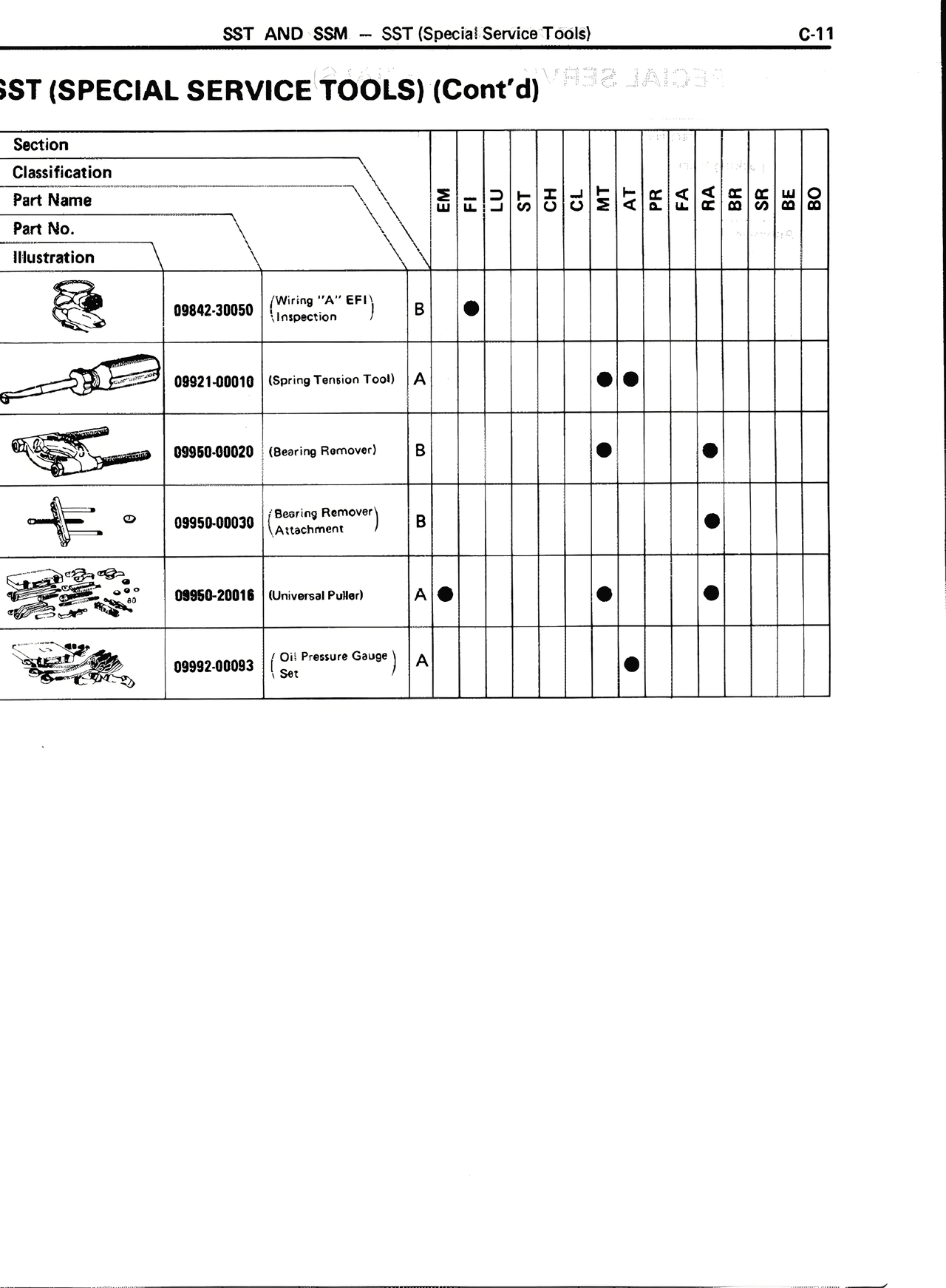

SST (SPECIAL SERVICE TOOLS) (Cont'd)

Section
Classification
Part Name
Part No.
Illustration

09842-30050 | (Wiring "A" EFI) | Inspection | B | EM | LJ | ST | CL | AT | MT | PR | RA | BR | SP | BE | BO

09821-00010 | (Boring Tension Tool) | A | | | | | AT | MT

09950-00020 | (Bearing Remover) | B | | | | AT | | | RA

09950-00030 | (Bearing Remover) | Attachment | B | | | | | | | | BR

09960-20018 | (Universal Puller) | A | EM | | | AT | | | RA

09992-00093 | (Oil Pressure Gauge) | Set | A | | | | | MT
