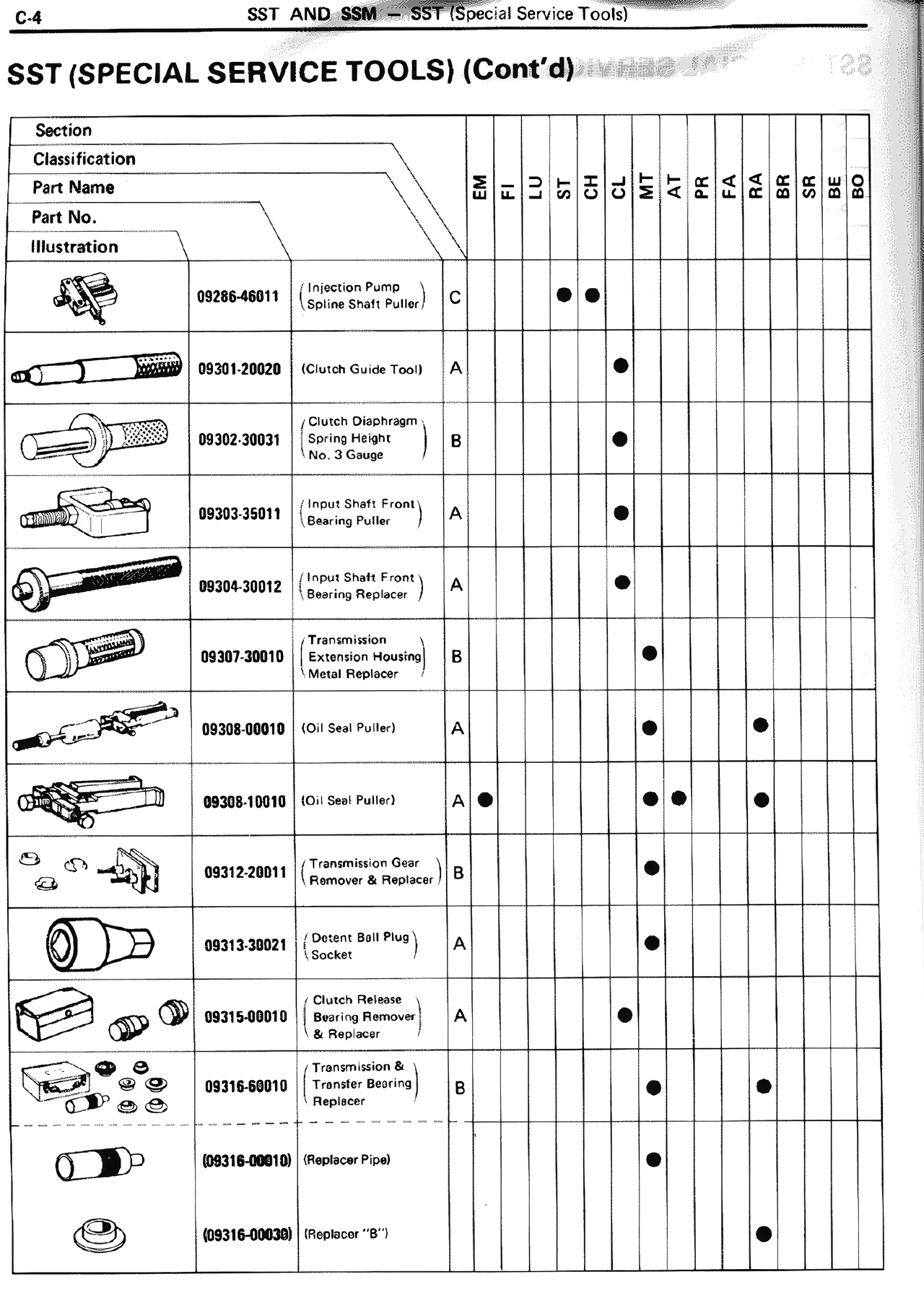

C/SST and SSM — SST (Special Service Tools) (Cont'd), page 3

Section
Classification
Part Name
Part No.
Illustration

09286-46011 | Injection Pump Spline Shaft Puller | C

09301-20020 | (Clutch Guide Tool) | A

09302-30031 | Clutch Diaphragm Spring Height No. 3 Gauge | B

09303-35011 | Input Shaft Front Bearing Puller | A

09304-30012 | Input Shaft Front Bearing Replacer | A

09307-30010 | Transmission Extension Housing Metal Replacer | B

09308-00010 | (Oil Seal Puller) | A

09308-10010 | (Oil Seal Puller) | A

09312-20011 | Transmission Gear Remover & Replacer | B

09313-30021 | Detent Ball Plug Socket | A

09315-00010 | Clutch Release Bearing Remover & Replacer | A

09316-60010 | Transmission & Transfer Bearing Replacer | B

09316-00010 | (Replacer Pipe)

09316-00030 | (Replacer 'B')
