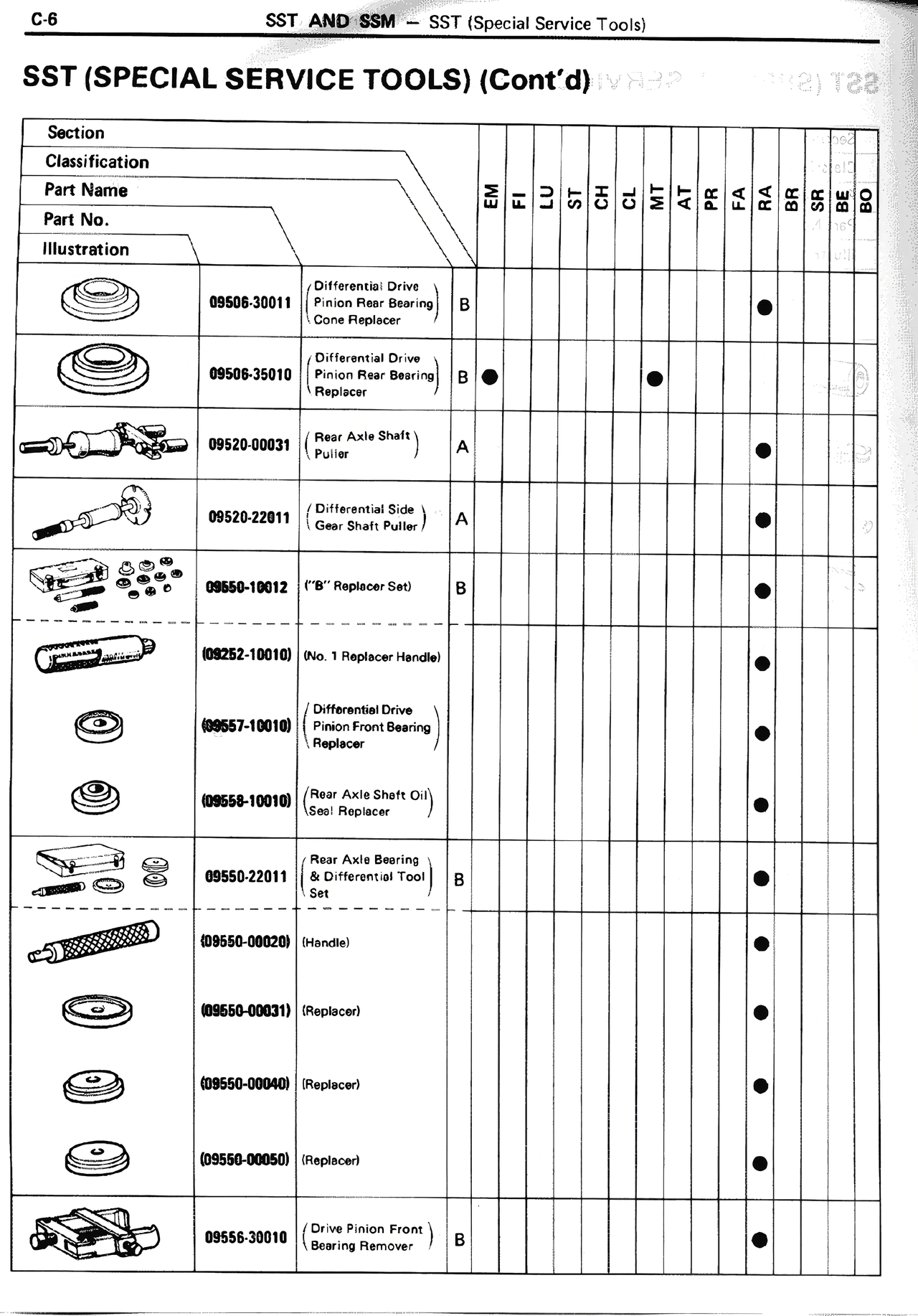

SST (SPECIAL SERVICE TOOLS) (Cont'd) — MK2 Supra SST and SSM, page 5
100%
SST (SPECIAL SERVICE TOOLS) (Cont'd) Section Classification Part Name Part No. Illustration EM FI JU AU CH CL TE AT PR HA RA BR SA BE BO 09508-30011 | Differential Drive Pinion Rear Bearing Cone Replacer | B | RA 09508-35010 | Differential Drive Pinion Rear Bearing Replacer | B | FI | CL | RA 09520-00031 | (Rear Axle Shaft) Puller | A | BR 09520-22011 | (Differential Side Gear Shaft Puller) | A | BR 09550-16012 | ("B" Replacer Set) | B | BR 09552-18010 | (No. 1 Replacer Handle) | BR 09557-18010 | Differential Drive Pinion Front Bearing Replacer | BR 09558-18010 | (Rear Axle Shaft Oil Seal Replacer) | BR 09550-22011 | Rear Axle Bearing & Differential Tool Set | B | BR 09550-00020 | (Handle) | BR 09550-00031 | (Replacer) | BR 09550-00040 | (Replacer) | BR 09550-00050 | (Replacer) | BR 09555-30010 | (Drive Pinion Front Bearing Remover) | B | BR
