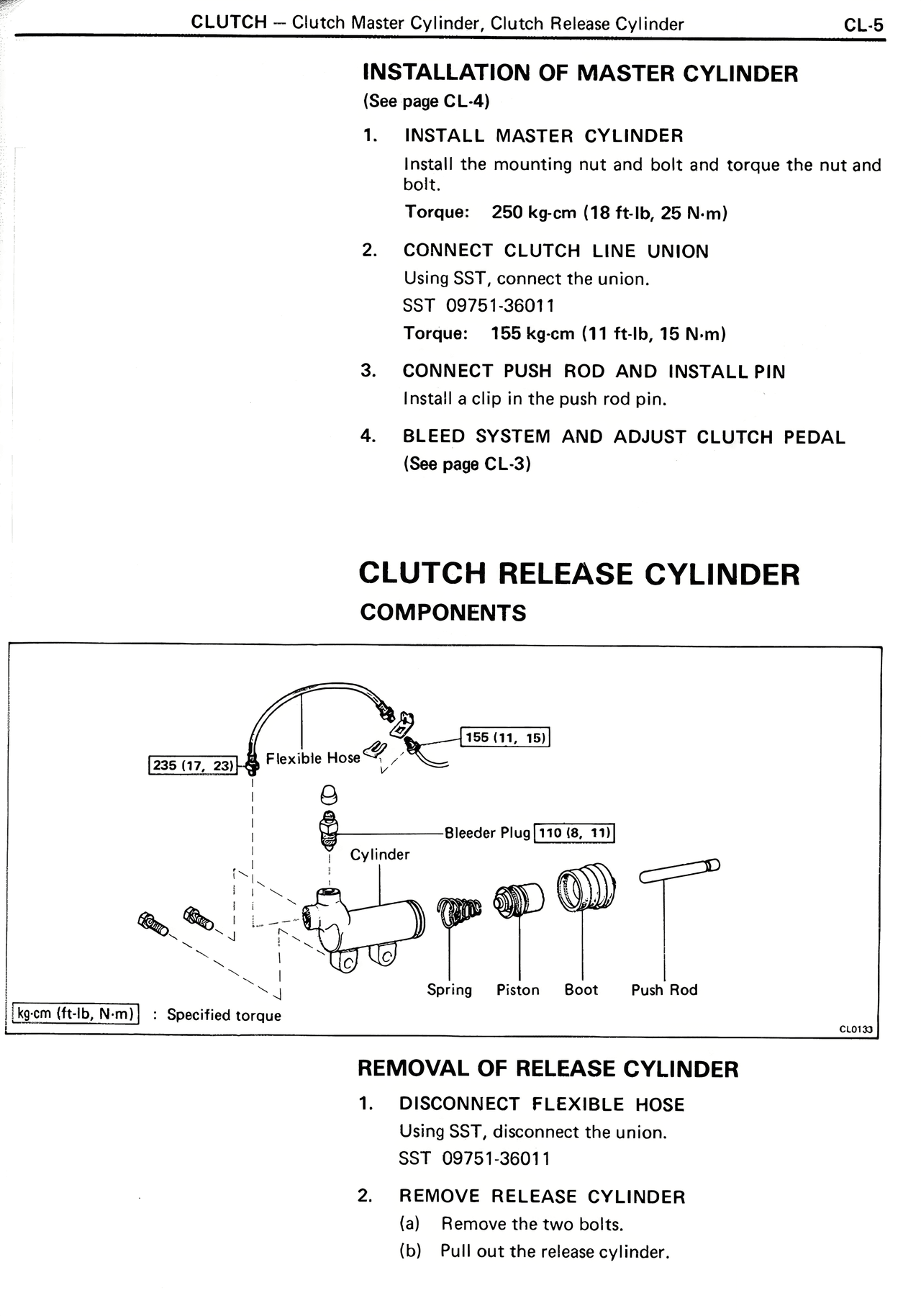

INSTALLATION OF MASTER CYLINDER
(See page CL-4)
1. INSTALL MASTER CYLINDER
Install the mounting nut and bolt and torque the nut and bolt.
Torque: 250 kg-cm (18 ft-lb, 25 N·m)
2. CONNECT CLUTCH LINE UNION
Using SST, connect the union.
SST 09751-36011
Torque: 155 kg-cm (11 ft-lb, 15 N·m)
3. CONNECT PUSH ROD AND INSTALL PIN
Install a clip in the push rod pin.
4. BLEED SYSTEM AND ADJUST CLUTCH PEDAL
(See page CL-3)
CLUTCH RELEASE CYLINDER
COMPONENTS
[DIAGRAM showing: Flexible Hose with torque specs 235 (17, 23) and 155 (11, 15), Bleeder Plug 110 (8, 11), Cylinder, Spring, Piston, Boot, Push Rod]
kg-cm (ft-lb, N·m) : Specified torque
REMOVAL OF RELEASE CYLINDER
1. DISCONNECT FLEXIBLE HOSE
Using SST, disconnect the union.
SST 09751-36011
2. REMOVE RELEASE CYLINDER
(a) Remove the two bolts.
(b) Pull out the release cylinder.
